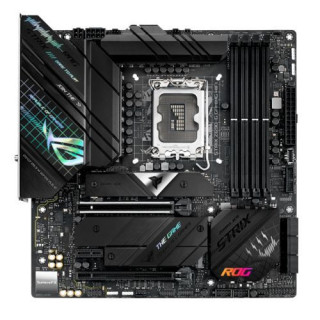

Asus ROG STRIX Z690-G GAMING WIFI, Intel Z690, 1700, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi, 2.5G LAN, PCIe5, RGB, 3x M.2
90MB19G0-M0EAY0
Intel Z690 LGA 1700 ATX motherboard with PCIe 5.0 14+1 DrMos DDR5 memory support Two-Way AI Noise Cancelation AI Overclocking AI Cooling AI Networking WiFi 6E (802.11ax) Intel 2.5 Gb Ethernet three M.2 slots with heatsinks PCIe 4.0 NVMe SSD support M.2 backplates USB 3.2 Gen 2x2 Type-C SATA and AURA Sync RGB lighting
- Intel LGA 1700 socket: Ready for 12th Gen Intel Core Pentium Gold and Celeron Processors
- Optimal Power Solution: 14+1 DrMos with ProCool II power connector high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimised Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad three onboard M.2 heatsinks and M.2 backplates for two M.2 slots
- High-performance Networking: On-board Intel WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI 2.1 and DisplayPort 1.4 output three M.2 slots as well as USB 3.2 Gen 2x2 Type-C
- Intelligent Control: ASUS-exclusive AI Overclocking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design: M.2 Q-Latch pre-mounted I/O shield BIOS FlashBack button and Clr CMOS button
- Unmatched Personalisation: ASUS-exclusive Aura Sync RGB lighting including a RGB header and three addressable Gen 2 headers
- Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier along with DTS Sound Unbound and Sonic Studio III
- Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86
ROG STRIX Z690-G GAMING WIFI
ROG Strix Z690-G Gaming WiFi is the premiere choice for enthusiasts who enjoy building compact mATX setups. Premium-grade power delivery cooling and the latest networking standards have been packed in to ride alongside DDR5 and PCIe 5.0 unleashing the full force of 12th Gen Intel Core processors. And layered on top there’s a stack of ASUS-exclusive intelligent controls to optimize every aspect of system performance.
All-Round Performance
ROG Strix Z690-G Gaming WiFi provides up-rated power delivery and optimised cooling to push any gaming build to as limits. Intelligent controls enable easy management of overclocking cooling and networking settings while Two-Way Al Noise Cancellation ensures crystal-clear in-game communication. ROG Strix Z690-G Gaming WiFi is armed with all the essentials required to create a gaming PC with top-tier performance.
Leading Connectivity
ROG Strix Z690-G Gaming WiFi features an innovative design that delivers diverse and wickedly fast connectivity options for supersmooth online experiences and ultrafast data transfers. And alongside those perks we’ve managed to cram in an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.
Play In Style
Pair ROG Strix Z690-G Gaming WiFi with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.
ROG Gives You More
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. To further aid system setup and performance tuning the highly acclaimed AIDA64 and MemTest86 utilities have also been added to the mix.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure tweak and tune your rig. It offers intelligently simplified options for newcomers to PC DIY as well as more comprehensive features for seasoned veterans.
5-Way Optimisation
The renowned ROG UEFI (BIOS) provides everything you need to configure tweak and tune your rig. It offers intelligently simplified options for newcomers to PC DIY as well as more comprehensive features for seasoned veterans.
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: Intel 1700
- Chipset: Intel Z690
- DDR Type: DDR5
- CPU Support: Click here for CPU support
- RAM Technology: DDR5 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: Up to 6000(OC)
- Maximum Memory: 128GB
- Graphics: Integrated Graphics*
*Graphics s may vary between CPU types - Graphics Ports: 1 x HDMI
1 x DisplayPort - PCI/PCI Express: 1 x PCIe 5.0 x16
1 x PCIe 4.0 x16
1 x PCIe 3.0 x1 - Storage: 6 x SATA III
2 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - SATA & PCIe - RAID: "Intel Rapid Storage supports NVMe RAID 0/1/5 SATA RAID 0/1/5/10"
- Wireless: Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2 - LAN: 2.5GB LAN
- Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- USB Ports Supported: "1 x USB 3.2 Gen 2x2 Type-C (at back)
1 x USB 3.2 Gen2 Type-C (at back)
2 x USB 3.2 Gen2 Type-A (at back)
6 x USB 3.2 Gen1 Type-A (4 at back 2 at mid-board)
6 x USB 2.0 (2 at back 4 at mid-board)
1 x USB 3.2 Gen2x2 Type-C front panel connector" - Back Panel I/O Ports: "1 x USB 3.2 Gen2x2 Type-C
3 x USB 3.2 Gen2 (2 Type-A 1 Type-C)
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x ASUS Wi-Fi Module
1 x Intel 2.5Gb Ethernet
5 x Gold-plated audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button
1 x Clear CMOS button " - Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
3 x M.2 (Key M)
6 x SATA 6Gb/s
1 x USB 3.2 Gen2x2 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0 - .: 3 x Addressable Gen2
1 x AURA RGB
1 x CPU Over Voltage jumper
1 x Front Panel Audio
1 x SPI TPM (14-1pin)
1 x 20-5 pin System Panel
1 x Thermal Sensor
1 x Thunderbolt - Accessories: 4 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Rubber Package
1 x M.2 Q-Latch package
1 x M.2 Q-Latch package for M.2 backplate
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 2.0100 kg
- Warranty: 3 Years
- M.2 Slot(s): Yes (M.2)
- RGB Lighting: Yes (RGB)
- No. LAN Ports: 1 x LAN
- Max LAN Speed: 2.5GB LAN
- Wi-Fi: Yes (Wi-Fi)
