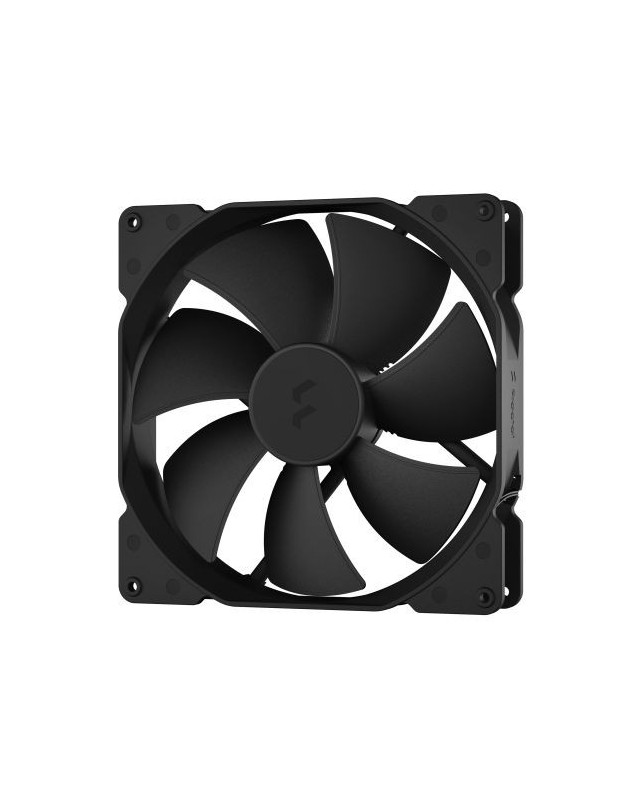

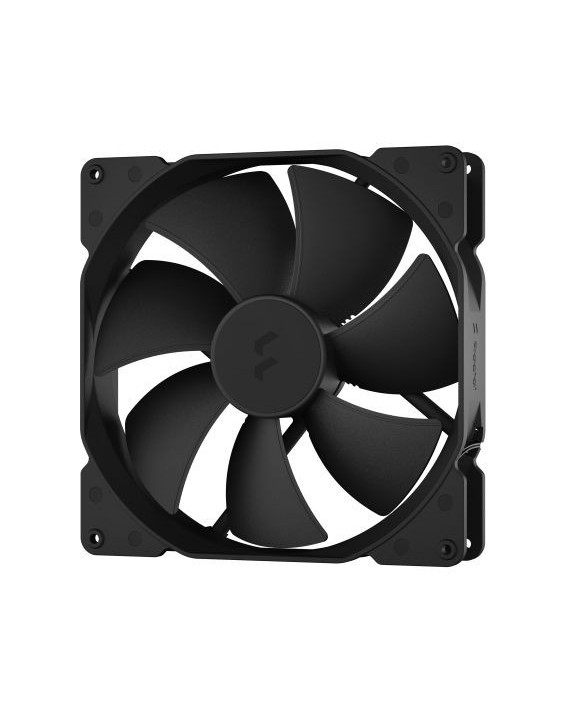

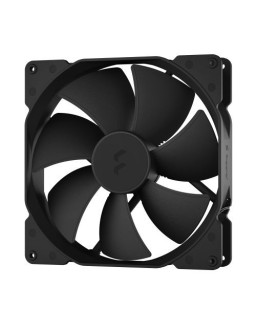

Fractal Design Dynamic X2 GP-18 PWM 18cm Case Fan, Long Life Sleeve Bearing, Optimized Fan Geometry, 300-1200 RPM
search
  • Fractal Design Dynamic X2 GP-18 PWM 18cm Case Fan, Long Life Sleeve Bearing, Optimized Fan Geometry, 300-1200 RPM

Fractal Design Dynamic X2 GP-18 PWM 18cm Case Fan, Long Life Sleeve Bearing, Optimized Fan Geometry, 300-1200 RPM

FD-FAN-DYN-X2-GP18-PWM-BK
FD-FAN-DYN-X2-GP18-PWM-BK


Super-sized airflow


The Dynamic X2 GP-18 is a powerful 180 mm fan that packs a mean punch in the air-flow department. Massive blades, stout 38 mm thickness, and a wide 300-1200 RPM range with PWM control allow the GP-18 to yield remarkably high airflow while remaining exceptionally quiet.


  • Massive 180 x 38 mm fan that yields remarkably high airflow while remaining very quiet
  • High-grade LLS bearing with 90,000-hour MTTF delivers long-lasting dependability
  • PWM support offers a wide 300-1200 RPM speed range for silent operation under lighter loads and maximum airflow during more demanding activity
  • Optimized fan geometry balances airflow with extra emphasis on static pressure for great performance in any usage scenario
  • Aerodynamic stator struts with embedded wiring helps reduce noise and turbulence
  • Stator struts sit on a wide angle to the trailing edge of the blades, resulting in a lower noise level and smoother noise profile
  • Strategically placed notches near the fan hub on the trailing edge of the blades help to eliminate the humming noise produced when the blades pass stator struts
  • Trip Wire technology introduces a micro-turbulent layer that helps to combat elements that negatively affect performance, providing an overall more efficient and quieter fan environment
  • Customized design contributes to a cool running and beautiful looking build
  • Fits standard 180 mm fan mounts with 165 x 165 mm screw hole pattern

Description

Specification

  • Type: 18cm Case Fan
  • Fan Connector(s): 4-pin
  • Fan Controller: PWM
  • Installation: Screws
    Fits standard 180 mm fan mounts with 165 x 165 mm screw hole pattern
  • LED Lighting: No
  • Colour: Black
  • LED Lighting: -
  • Weight: 499 g
  • Fan Dimensions: 180 x 180 x 38 mm
  • Rotation Speed: 300 - 1200 RPM
  • Fan Bearing: Long Life Sleeve bearing
  • Air Flow: 44.9 – 153.7 CFM
  • Noise level: 16 – 35.4 dB(A)
  • Power: Input power: 4.2W at 12VDC
    Maximum rated input current: 0.35A
    Nominal input Voltage: 12V
    Minimum startup voltage: 6V
  • Additional Features: See Overview
  • MTBF: "90,000 hours"
  • Package Contents: Dynamic X2 GP-18 fan
    4 x fan screws
    4 x extra-long radiator screws
  • Package Type: Retail
  • Package Weight: 0.5450 kg
  • Warranty: 2 Years
  • White: N/A
FD-FAN-DYN-X2-GP18-PWM-BK
