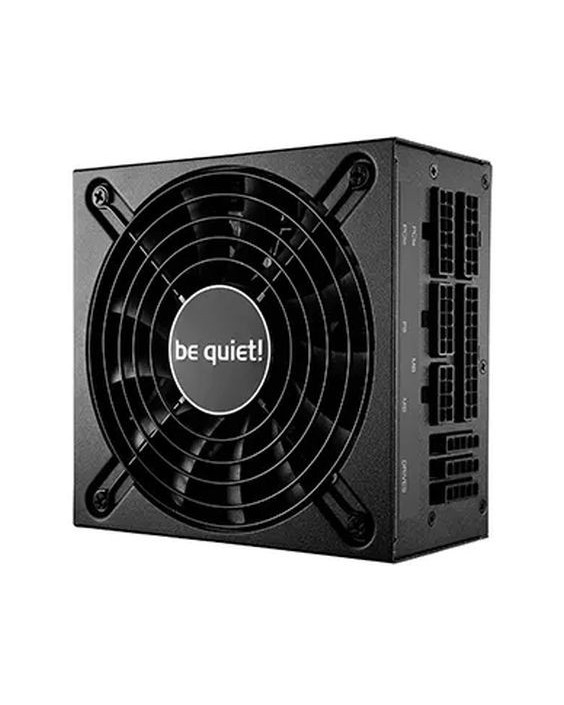

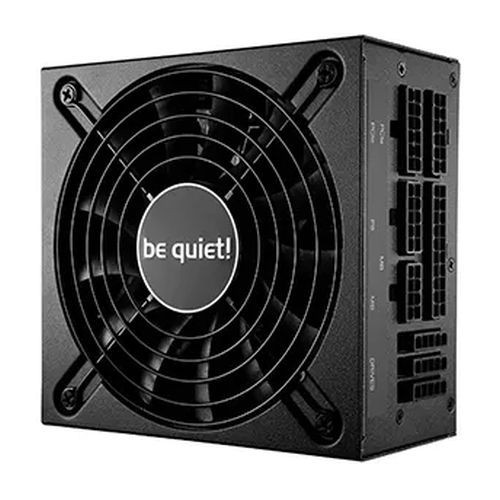

Be Quiet! 600W SFX-L Power PSU, Small Form Factor, Fully Modular, 80+ Gold, Continuous Power, SFX-to-ATX Bracket Included
BN239
Compact and Silent Energy
be quiet! SFX L Power 600W is especially recommended for mini ITX PCs and compact gaming systems. It performs well beyond the ordinary, with a great combination of quietness, features, reliability and efficiency.
- 600 Watts of continuous power and powerful 12V-rail design offer high stability and performance
- 80PLUS® Gold certification with up to 92% power conversion efficiency
- Full cable management offers maximum build flexibility and convenient usage
- Quiet operation thanks to temperature-controlled 120mm high-quality fan
- SFX-to-ATX PSU adapter bracket makes possible usage with larger case sizes
- Product conception, design and quality control in Germany
Applications
• Mini ITX systems
• Compact gaming PCs
• High-efficiency upgrade in any PC chassis requiring a SFX form factor PSU
Energy Efficiency
• 80PLUS® Gold certification means very high operating efficiency for its class of up to 92%
• High efficiency means cost savings, less wasted heat and an overall quieter operation
• Standby drain of less than 0.15 watts
• Meets Energy Star 6.0 guidelines
• Fulfills ErP guidelines
• Zero Load design and support of Intel’s Deep Power Down C6/C7 mode
Engineering
• Powerful 12V-rail design offers high stability and performance for CPU and GPU
• Four PCI express connectors for multi-GPU system configurations
• LLC, Synchronous Rectifier (SR) and DC-to-DC power conversion circuit design supports stability and efficiency
• High-quality Japanese capacitors for maximum reliability and operating life
• Temperature-controlled 120mm high-quality fan
• Optimized for low-noise operation thanks to the fan technology and low waste heat
• Full suite of top safety protections defends against over-currents, over- and under-voltages, short circuits, overheating and overloads
Highly Compatible and Convenient
• Maximum build flexibility thanks to the full cable management
• SFX-to-ATX PSU adapter bracket makes it super-flexible for usage with larger case sizes
• Black flat cables of up to 80cm allow for improved cooling
Outstanding Service and Support
• 3- year warranty
• Quick support is available via our international hotline, Mondays to Fridays from 9:00 am to 5:30 pm German local time: +49 (0) 40-736 76 86 - 98
Description
Specification
- Form Factor: SFX-L
- Series: Be Quiet! SFX L Power
- Wattage: 600 W
- Modular: Fully Modular
- Compatibility: SFX 12V Version 3.3 / ATX 2.4
- Connectors: "1 x ATX-Mainboard (20+4 pin)
1 x P4+4 (CPU)
4 x PCI-E 6+2 pin (GPU)
3 x PATA 4 pin
6 x SATA 15-pin (HDD, Drives)" - Rail Design: Single +12V
- AC Input: AC 100-240 V
- PFC: Active PFC
- Fan Type: Temperature-controlled 120mm high-quality fan
- Fan Bearing: Sleeve Bearing
- Noise: dB(A) at 20% load: 8.5
dB(A) at 50% load: 14.5
dB(A) at 100% load: 28.7 - Max Certification: Gold
- Efficiency: 80+ Gold
up to 92% - MTBF: "100,000 hours"
- Protection: Over current
Over voltage
Under voltage
Short circuit
Over temperature
Over power - Additional Features: See Overview
- Weight/Dimensions: 1.16 kg
64 x 125 x 130 mm - Package Weight: 2.0700 kg
- Warranty: 2 Years
BN239
