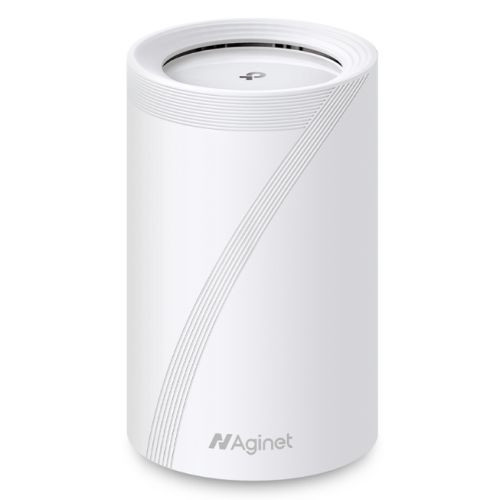

TP-LINK Aginet (HB610) BE9300 Tri-Band Whole Home Mesh Wi-Fi 7 System, 2.5G Ports, MLO, OFDMA, MU-MIMO, WPA3 , Remote Management

BE9300 Tri-Band Whole Home Mesh WiFi 7 System

• 9.3 Gbps Tri-Band WiFi 7: 6-stream tri-band WiFi enables gaming, 4K/8K streaming, AR/VR, and high-speed downloading on multiple devices—all at the same time.
• Uniform 2.5 GbE Ports: Break through the 1 Gbps bottleneck and take full advantage of your broadband plan with speeds up to 2.5 Gbps.
• Superior Coverage: High-performance antennas and beamforming technology combine to extend strong, reliable WiFi throughout your home.
• Multi-Link Operation (MLO): Achieve higher throughput for each device with lower latency and higher reliability via multi-link aggregation across three bands.
• Clear 320 MHz Channels: Enjoy robust, high-speed connectivity with doubled throughput on 320 MHz channels on the expansive and less-congested 6 GHz band.
• Works on the 6 GHz Band: Minimises congestion with greenfield spectrum, delivering robust high-speed connections.
• Whole Home Coverage: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.
• More Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.
• Enhanced Security: WPA3 encryption, Multi-SSID, and parental controls provide a personalised and safer online experience.
• Easy Setup and Use: Set up your mesh network in minutes with the powerful Aginet app.
• Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.

Description

Specification

• Type: Mesh Wi-Fi System/Router
• Connectivity: Wireless
• Wi-Fi Rating: BE9300
• Max Single Band Wi-Fi Rate: 5760 Mbps
• Max Wired Transfer Rate: 2.5 Gbps
• Bands: Tri Band
• Signal Rate: 6GHz: up to 5760 Mbps
  5GHz: up to 2880 Mbps
  2.4GHz: up to 574 Mbps
• Interface(s): 1 x 2.5 GbE WAN/LAN
  3 x 2.5 GbE LAN
  1 x USB 3.0
• Standards: IEEE 802.11be/ax 6 GHz
  IEEE 802.11be/ax/ac/n/a 5 GHz
  IEEE 802.11be/ax/n/g/b 2.4 GHz
  IPv4
  IPv6
• Frequency: 2.4 GHz / 5 GHz / 6GHz
• Button(s): WPS Button
  Reset Button
• Power Supply: 12V/2.5A
• Antenna(s): Internal Antennas High-performance
• Dimensions: (WxDxH) 107.5 x 107.5 x 176 mm
• Wireless Features: EasyMesh compatible and supports 802.11k/v/r
  Multi-Link Operation (MLO)
  320 MHz Bandwidth
  4K-QAM
  Multi-RU
  OFDMA
  MU-MIMO
  Beamforming
  BSS Color
  Router Mode
  Access Point Mode
• Security: "Wireless Security: WPA/WPA2/WPA3-Personal
  Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding"
• Port/NAT Forwarding: Port Forwarding
• VPN Support: "PPTP, OpenVPN, IPSec"
• Management: "Local Management:
  WebGUI, Aginet app (for end users)

  Remote Management:
  TR-069, TR-098, TR-181, TR-369, TR-111,TR-143 for service providers
  Aginet App for end users (need to log in wtih TP-Link ID and bind your device to it)

  Cloud Management:
  TP-Link Aginet Unified Cloud (TAUC)"
• Additional Features: Multi-SSID
  QoS (Quality of Service)
  CWMP
  Parental Controls
  WiFi Schedule
  Wireless Statistics
  Guest Network
  Band Steering
  Airtime Fairness
  Network Diagnostic
  Traffic Statistic
  Dynamic IP/Static IP/PPPoE/PPTP/L2TP
• Environment: Operating Temperature: 0°C–40°C (32°F –104°F)
  Storage Temperature: -40°C–60°C (-40°F –140°F)
  Operating Humidity: 10%–90% non-condensing
  Storage Humidity: 5%–90% non-condensing
• Package Contents: 1 x HB610 Unit
  1 x Power Adapter
  1 x RJ45 Ethernet Cable
  1 x Quick Installation Guide
• Package Type: Retail
• Package Weight: 1.3000 kg
• Warranty: 3 Years
• Wireless Standard: Wi-Fi 7 (802.11be)
• Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)1
