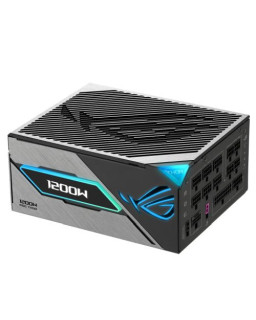

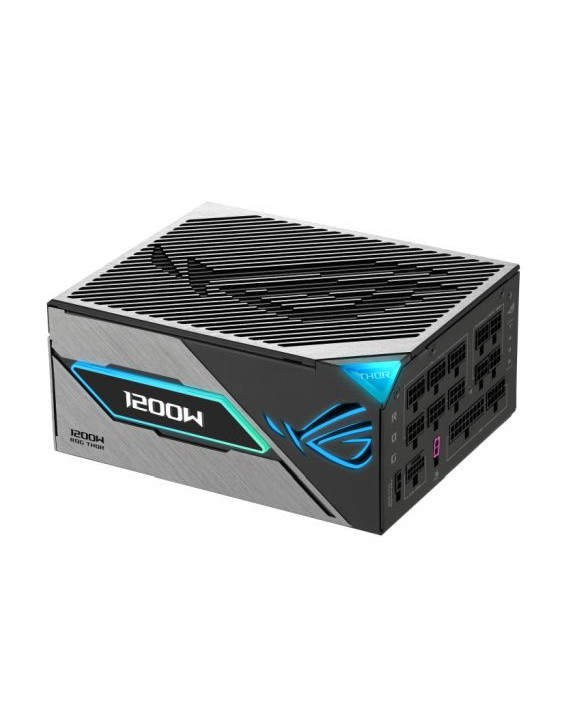

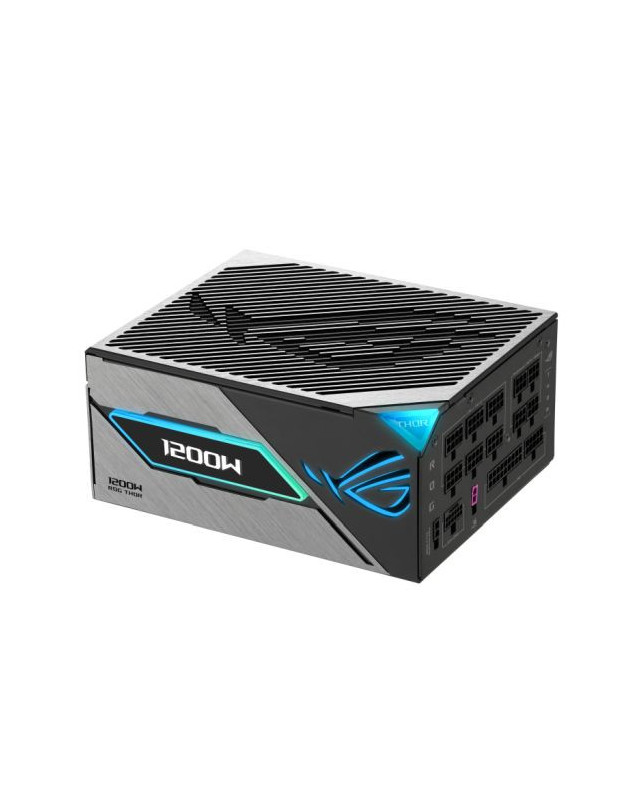

Asus 1200W ROG Thor Platinum III PSU, ATX 3.1, Fully Modular, 80+ Platinum, RGB Lighting, OLED Display, GaN MOSFET, GPU-First, Lambda A++

Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1200W Platinum III delivers unmatched performance and rock-solid stability for your ultimate PC build

• GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation.
• "GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance.
• Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
• Turbo Mode: Premium components and a fine-tuned fan curve unlock support for extended power excursions.
• ROG heatsinks and a fully aluminum enclosure synergize for superior cooling, keeping your system thermals under control.
• Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs.
• ATX 3.1 compatible: ROG Thor Platinum III is compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation for the latest hardware.
• Etched modular cables with a pliable premium material ensure effortless cable management and exceptional safety.
• 80 PLUS Platinum certified: ROG Thor III utilizes low-ESR capacitors and premium components for industry-leading power efficiency.
• 10-year warranty included.

• GaN MOSFET - The ROG Thor 1200W Platinum III PSU boasts an innovative GaN MOSFET that deliver up to 30% more power efficiency than standard MOSFETs. Plus, the smaller size of a GaN MOSFET allows for a more organized internal layout. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissipation.
• Intelligent Voltage Stabilizer - Activate the "GPU-First" voltage sensing by connecting the IVS cable. This innovative feature enhances voltage stability by up to 45%, even during demanding gaming sessions and overclocking scenarios. If you prefer conventional CPU-focused voltage sensing, simply disconnect the IVS cable. With this advanced technology, you can experience smooth and consistent gaming.
• High-performance Copper Pins - Upgraded PCIe® connectors feature superior thermal conductivity to help ensure cooler operation and improved power delivery efficiency. This translates to a significant 29% reduction in connector temperatures (up to 12.3°C), promoting optimal performance and stability for even the most demanding graphics cards.
• ATX 3.1 Compatible - ATX 3.1 ushers in tighter voltage and current regulation standard for next-gen hardware - and the ROG Thor 1200W Platinum III arrives ahead of the curve with full compliance. A 16-pin PCIe cable capable of sending up to 600 watts of power to PCIe 5.1 graphics cards is bundled with this PSU, readying your build for the next gen.
• Lambda A++ Certification - On average, ROG Thor 1200W Platinum III emits less than 15 dB of noise – earning a coveted Cybenetics Lambda A++ certification.
• 80 PLUS Platinum Certification - The ROG Thor 1200W Platinum III utilizes low-ESR Japanese capacitors to ensure efficient operation. These upgrades enable 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% efficiency at 50% load. The increased efficiency results in less heat, reduced fan noise, and increased reliability.

• ROG Heatsinks - ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.
• Dual Ball Fan Bearings - Dual-ball bearings boast a remarkable lifespan of up to 80,000 hours, twice as long as sleeve bearings and exceeding even fluid dynamic bearings. This helps to ensure long-lasting and reliable cooling with minimal noise for the ROG Thor 1200W Platinum III.
• 0dB Technology - To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is at 30% or below.

• Magnetic OLED Display - This detachable magnetic OLED display showcases real-time power draw, providing insights to your system's performance and efficiency. The magnetic attachment can be swapped to either side of the unit for fan-up or fan-down PSU installation, depending on the design of your case, so you can maintain optimal airflow without compromising monitoring.
• Turbo Mode - Turbo Mode unlocks support for extended power excursions, courtesy of a fine-tuned fan curve and premium components. Enjoy unwavering performance when you need it most, and switch between peak performance and ultimate silence with just a press of the Turbo Mode button on the rear of the PSU.
• Etched Cables - Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.
• DIY-friendly CPU Power Connector - Engineered with a distinct clip between the 4+4 pin connectors and a unique color scheme, this CPU power cable simplifies cable identification during installation. The integrated clip helps to ensure a secure and effortless connection to the motherboard's CPU power connector, streamlining the build process and instilling confidence in your PC setup.
• Aura Sync - The ROG Thor 1200W Platinum III has addressable Aura RGB LEDs built in, ready to accent an Aura-compatible rig with an array of colors and lighting effects. Users of Aura-sync compatible ASUS and ROG graphics cards can also enjoy Smart Mode, a lighting effect that changes color according to GPU temperature.
• 10-year Warranty - We're so confident about the reliability of the ROG Thor 1200W Platinum III that we back it with a 10-year warranty.

Description

Specification

• Form Factor: ATX
• Series: Asus ROG Thor
• Wattage: 1200 W
• Modular: Fully Modular
• Compatibility: ATX 3.1
  PCIe 5.1
• Wattage Range: 1000 - 1250W
• Connectors: 1 x MB 24/20-pin
  2 x CPU 4+4-pin
  1 x PCI-E 16-pin
  4 x PCI-E 6+2-pin
  7 x SATA
  6 x Peripheral
• AC Input: 100-240Vac
• PFC: Active PFC
• Fan Type: Dual Ball Bearing
  0dB Technology
• Fan Bearing: Ball Bearing
• Noise: Cybenetics Lambda A++ Certification
  0dB Fan Button
• Max Certification: Platinum
• Efficiency: 80+ Platinum
  89% at 100% load
  92% at 50% load
  GaN MOSFET delivers up to 30% more power efficiency
• MTBF: ">120,000 hours"
• Protection: OPP / OVP / UVP / SCP / OCP / OTP
• Additional Features: GaN MOSFET
  GPU-First intelligent voltage stabilizer
  Turbo Mode
  Magnetic OLED display
  ROG heatsinks
  Fully aluminium enclosure
  Turbo Mode
  Etched modular cables
  High-performance copper pins
  Aura Sync RGB lighting
• Package Contents: 1 x Power Cord
  1 x Motherboard Power Cable (610mm)
  2 x CPU Cable (1000mm)
  1 x PCI-E Gen 5.1 16-pin Cable (750mm)
  4 x PCI-E Cable 1-to-1 (750mm)
  1 x SATA Cable 1-to-4 (400+120+120+120mm)
  1 x SATA Cable 1-to-3 (400+120+120mm)
  2 x Peripheral 1-to-3 (400+150+150mm)
  1 x Addressable RGB Cable (800mm)
  1 x ROG sticker
  6 x ROG cable ties
  1 x Chassis Screws Package
  12 x Cable Ties
  1 x User Manual
• Weight/Dimensions: 2.37 kg
  190 x 150 x 86 mm
• Package Weight: 5.4000 kg
• Warranty: Core product :10 Years
  OLED panel and RGB LEDs: 3 Years
• ATX 3.1/3.0: ATX 3.1
