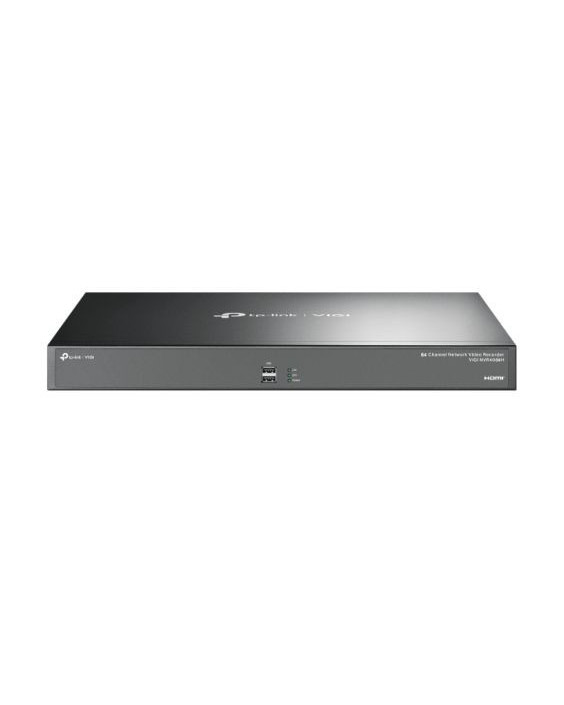

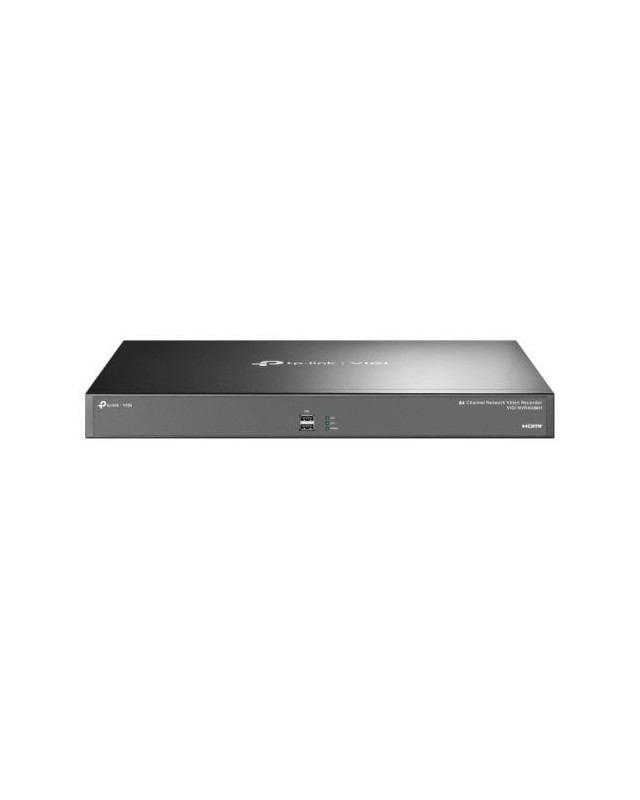

TP-LINK (VIGI NVR4064H) 64-Channel NVR, No HDD (Max 64TB), 64-Channel Live View, 4K HDMI Video Output, Remote Monitoring, H.265+
VIGI NVR4064H
VIGI 64 Channel Network Video Recorder
- 64-Channel Live View and 4K HDMI Video Output
- Up to 16-ch @ 2MP (25fps) / 8-ch @ 4MP (30fps) Decoding Capability
- 16-Channel Synchronous Playback
- 320 Mbps Incoming Bandwidth and 320 Mbps Outgoing Bandwidth
- 4× SATA Interfaces and 1 Up to 16 TB
- H.265+ Compression Technology
- 2 HDMI and 1 VGA Video Output
- Remote Monitoring
64-Channel Live View
Ensure a real-time display of every monitored area on one screen and take everything under your control.
4K Video Output
Show more details with up to 8MP resolution for one channel and 16-ch@2MP/ 8-ch@4MP decoding capacity in total for all channels
Mass Storage
4 SATA interfaces (up to 16TB capability per HDD) ensure to store and secure your data for quick, convenient access.
Easy Management
Seamlessly manage the NVR and connected cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manager. Customize the management systems to suit your specific needs.
Smart Search by Motion and Object
Efficiently search out and review certain video clips by motion type, characteristics of person/vehicle, tag, and more.
Description
Specification
- Access Camera Number: 64
- Incoming/Outgoing Bandwidth: Incoming Bandwidth:
Default: 260Mbps
Extended Bandwidth Mode: 320Mbps
Outgoing Bandwidth:
Default: 180Mbps
Extended Bandwidth Mode: 320Mbps
- Network: "Protocol: UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access: Android, iOS
Web Browser: Chrome (57+), Firefox (52+), Edge (91+)
Interoperability: ONVIF Profile S, CGI
" - Interface(s): "2 x RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
2 x Front USB 2.0, 1 x Rear USB 3.0
Audio Interface: 1-ch RCA Input; 1-ch RCA Output
Alarm In/Out: 16/4
1 x Serial RS232
Power: 1 x AC Jack
1 x eSATA
2 x HDMI
1 x VGA" - Video Input/Output: IP Video Input:
64-Channel
Video Output:
HDMI1/HDMI2 Independent output
HDMI1/VGA Independent output
- Decoding: "Audio Compression:
G.711A/G.711U/G.726
Video Compression:
H.265+/H.265/ H.264+/H.264
Record Resolution:
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback:
16-Channel
Capability:
25fps: 16-ch@2MP, 32-ch@720P, 64-ch@D1
30fps: 4-ch@8MP, 6-ch@5MP, 8-ch@4MP
" - HDD: 4 x SATA Interfaces
Up to 16 TB Capacity for Each HDD - PoE: -
- Power Supply: "100-240 VAC, 50 to 60Hz, 1.5A"
- Power Consumption: 6.95 W (Without Disk)
48.38 W (With Disk) - Record Management: "Record Mode:
Manual Recording, Scheduling Recording, Motion Detection Recording
Playback Mode:
Instant Playback, Regular Playback, Tag Playback, Event Playback
Backup Mode:
Regular Backup, Video Clip Backup
Playback Function:
Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
" - Alarm: "General Alarm:
Motion, Video Tampering, Scene Change, Line-Crossing, Intrusion, Region Entering, Region Exiting, Loitering, Object Abandoned/Removal, Vehicle, Human, Abnormal Sound, Smart Frame
Anomaly Alarm:
Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception
Alarm Linkage:
Recording, White Light Alarm, Buzzer, Log, Audible Alarm
" - Weight/Dimensions: 4.0 kg
(WxDxH) 440 x 330 x 44 mm - Environment : Storage Temperature: -40–70 °C
Storage Humidity: 10%~90% RH Non-Condensing
Working Temperature: NVR: -10–55 °C
Working Humidity: 10%~90% RH Non-Condensing - Package Contents: VIGI Network Video Recorder
Mouse
Installation Guide
Power Cord
HDD Power Cables
HDD Data Cables
Terminal Blocks
Mounting Brackets
Screws
Rubber Feet - Additional Features: See Overview
- Package Weight: 5.6500 kg
- Warranty: 5 Years
