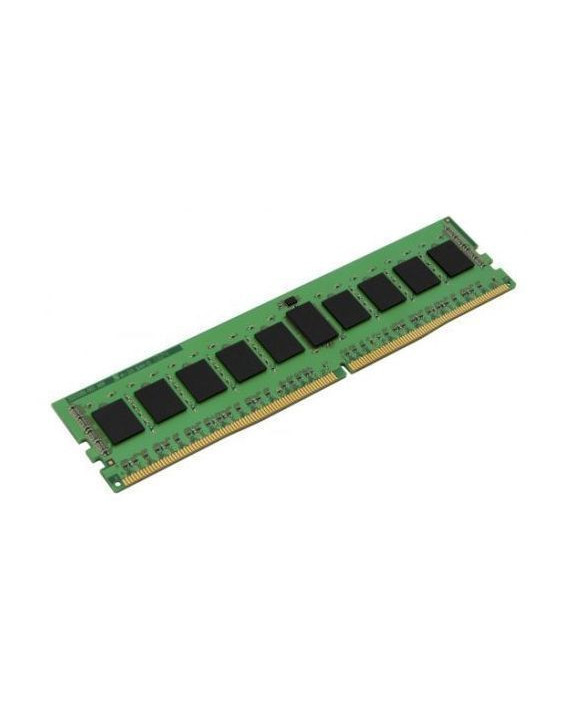

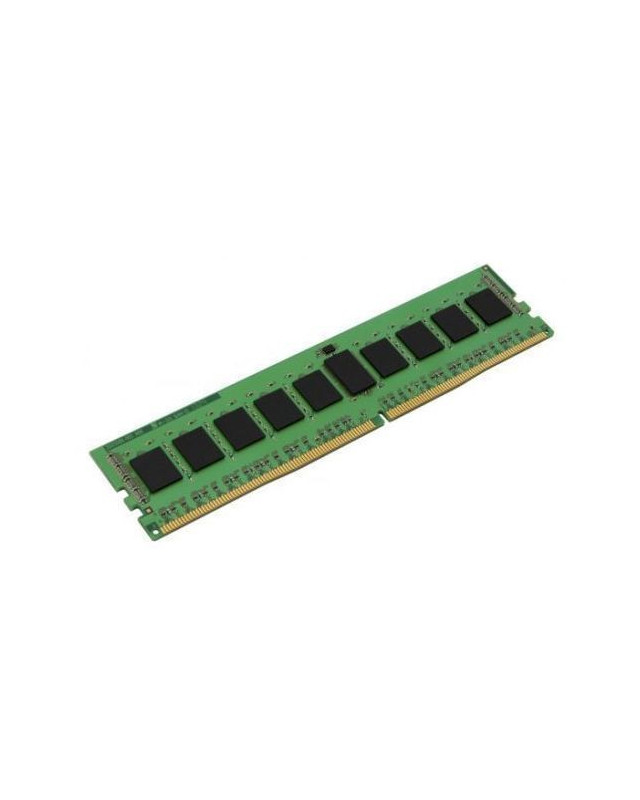

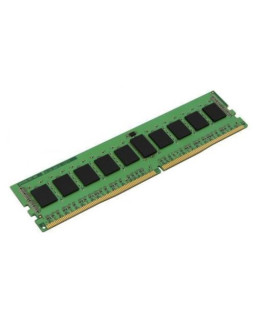

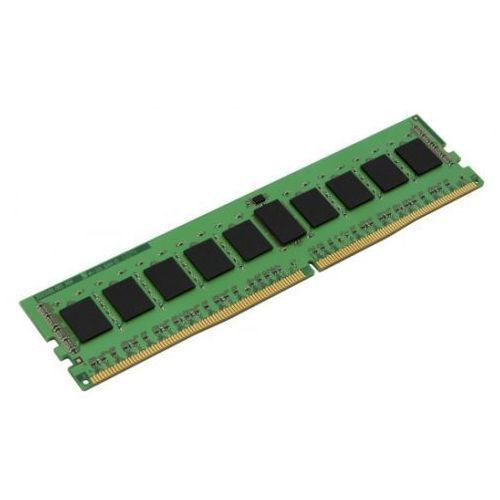

Kingston ValueRAM 8GB, DDR4, 3200MHz (PC4-25600), CL22, DIMM Memory, OEM (Anti Static Bag)
KVR32N22S8/8BK
8GB 3200MT/s DDR4 Non-ECC CL22 DIMM 1Rx8 - Bulk OEM
ValueRAM's KVR32N22S8/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
Description
Specification
- Series: Kingston ValueRAM
- DDR Type: DDR4
- Size: 1 x 8GB
- Individual Module Size: 8GB
- Total Capacity: 8GB Total
- Speed: 3200 MHz
- Compliance: PC4-25600
- Pins: 288-pin
- CAS Latency: CL22
- Data Integrity Check: Non-ECC
- Voltage: 1.2V
- Timings: 22-22-22
- Heatsink: No
- LED Lighting: No
- Additional Information: See Overview
- Package Type: OEM
- Package Weight: 0.0200 kg
- Warranty: Lifetime
KVR32N22S8/8BK
