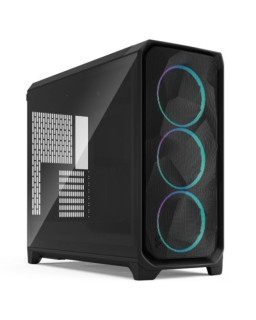

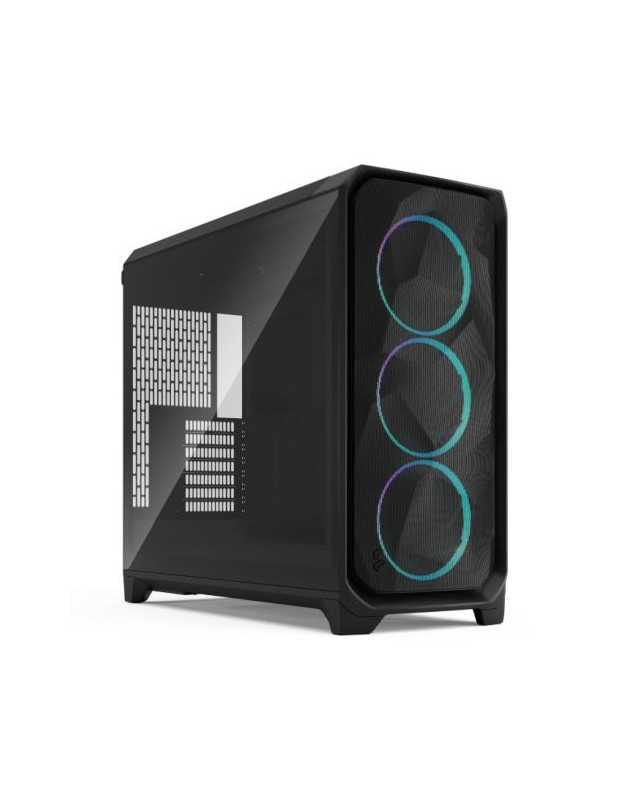

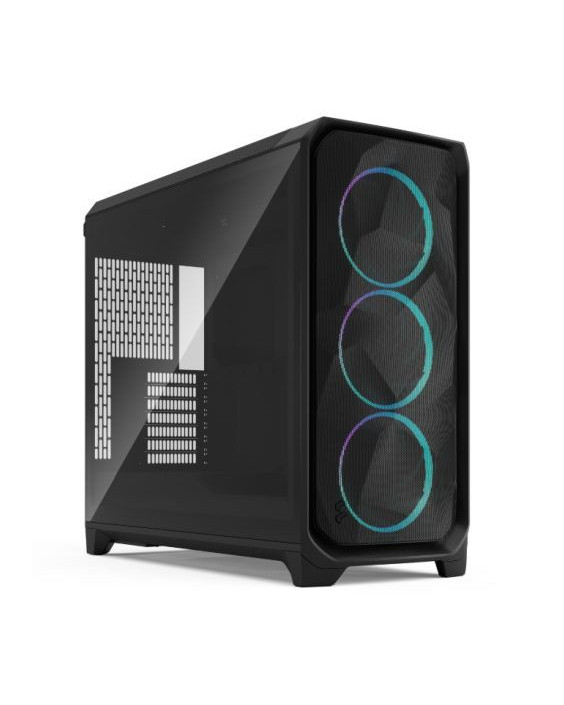

Fractal Design Meshify 3 XL (Black RGB TG Light) w/ Light Tint Window, E-ATX, Mesh Front, 3x RGB Fans, USB-C 20Gbps
FD-C-MES3X-04
Meshify 3 XL - Generous Performance
Meshify 3 XL is a PC case offering top-tier cooling performance, versatility and build quality in a generous format. This third iteration of the Meshify Series refines the dynamic aesthetic of the previous series and features performance-boosting engineering updates. With a spacious interior and multi-radiator support, Meshify 3 XL is ideal for enthusiast-level custom loop builds.
- Ventilated front mesh panel with sleek, sculpted expression
- Engineered for cooling performance with ample ventilation
- Spacious interior with multi-radiator support, well-suited to custom loop configurations
- Supports up to 420 mm top radiators and 360 mm front and side radiators, with removable brackets for easy installation
- Includes three Momentum 14 RGB fans, with space for up to ten 140 mm fans
- Easily accessible I/O with a 20 Gbps USB-C, two USB-A ports and an audio jack
- Clean interior with new cable aligners for easy cable management
- Air guide which directs air towards components to further improve GPU cooling
Advanced airflow
Access performance engineering in a spacious format, with ample ventilation and an air guide which helps keep components running cool.
Evolved design
Elevate your space with an aerodynamic design aesthetic featuring a sleek, rockface-inspired mesh front panel.
Designed for gaming
Create a powerful gaming system with space for graphics cards up to 512 mm in length and E-ATX motherboard compatibility.
Ideal for custom loops
Create a build with advanced cooling, with space for up to a 420 mm top radiator and up to 360 mm front and side radiators.
Powerful fans included
Includes three high-performance Momentum 14 fans, featuring LCP blades and true FDB bearings for improved cooling and quieter operation.
Easily accessible
Enjoy a smooth build experience with easily removable panels, including a sliding top panel featuring a fabric tab.
Clean finish
Achieve a neat and tidy look with a clean interior layout featuring a cable cover and new cable aligners for easy routing.
Accessible I/O
Connect your devices easily with a top I/O featuring a 20 Gbps USB Type-C port, two USB-A ports and a combined audio jack.
Description
Specification
- Form Factor: E-ATX
- Small Form Factor: No
- Power Supply Wattage: No PSU
- Motherboard Support: E-ATX / ATX / mATX / ITX / EE-ATX / SSI-EEB / SSI-CEB
- Window(s): Yes (Window)
- LED Lighting: Yes (LED Lighting)
- Connectors / Controls: 1 x USB Type-C 20Gbps
2 x USB Type-A 5Gbps
1 x Audio Combo Jack
Power button - Drive Bays: 2/5 x 3.5""""/2.5"""" Drive Mounts
- Expansion Slots: 7 Expansion slots
- Cooling System: Included:
Front: 3 x 140 mm Momentum RGB Fans
Fan Mounts:
Front: 3 x 120 / 3 x 140 / 2 x 180 mm
Top: 3 x 120 / 3 x 140 mm
Rear: 1 x 120 / 1 x 140 mm
Side: 3 x 140 mm (no 120 support without radiator)
Bottom: None - .:
Radiator Support:
Front: Up to 360 / 280 mm
Top: Up to 360 / 420 mm (up to 475 mm)
Rear: Up to 120 / 140 mm
Side: 360 mm (with brackets)
Bottom: None - Colour: Black
- Material: Left Side Panel: Light Tint Tempered Glass
Right Side Panel: Industrial Steel - Compatibility: GPU Max Length: 512 mm
GPU Max Height: 189 mm (7 slot) including cables
CPU Cooler Max Height: 182 mm
PSU Max Length: 230 mm
Cable Routing Space: 37.5 mm - Weight/Dimensions: 10.9 kg
(LxWxH) 567 x 245 x 515 mm
w/o feet/protrusions/screws: 490 x 245 x 515 mm - Additional Features: Advanced ambient lighting with startup effect
Ventilated front mesh panel
Engineered for cooling performance
Air guide directs air towards components
Dust filters: PSU (Bottom)
Tool-less push-to-lock panels & bottom filter
Captive thumbscrews: Top Rad. Bracket / Air Guide / PSU Bracket
Cable cover
Cable organisers: 3 Velcro straps + 3 Cable Aligners - Accessories: Accessory Box
Manual
Red Note - Package Weight: 13.7000 kg
- Warranty: 2 Years
