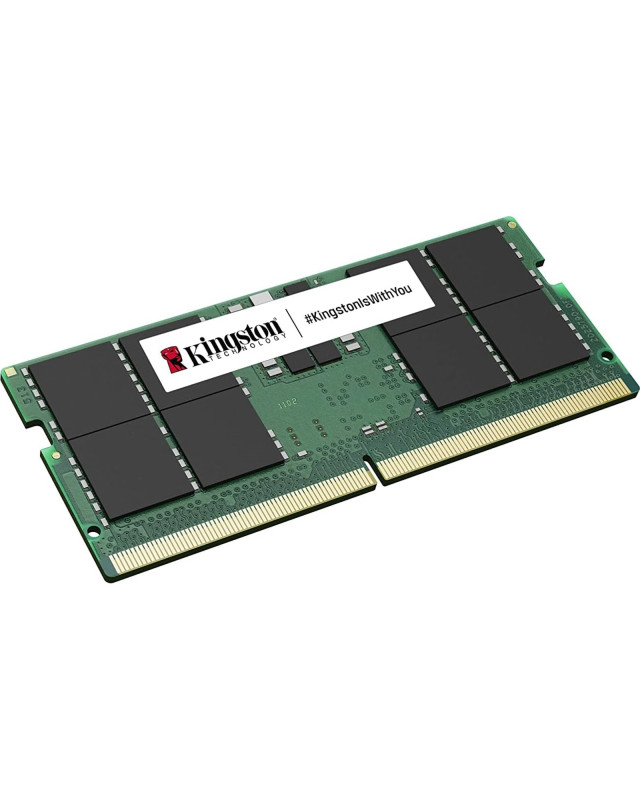

KVR56S46BS6-8 8GB, 1Rx16 1G x 64-Bit, PC5-5600 CL46 262-Pin SODIMM Kingston ValueRAM's KVR56S46BS6-8 is a 1G x 64-bit (8GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers.
Features Power Supply: VDD = 1.1V Typical VDDQ = 1.1V Typical VPP = 1.8V Typical VDDSPD = 1.8V to 2.0V On-Die ECC PCB: Height 1.18” (30.00mm) RoHS Compliant and Halogen-Free
Specification
Product Type Memory Module
Capacity 8 GB
Memory Type DDR5 SDRAM - SO-DIMM 262-pin
Upgrade Type Generic
Data Integrity Check On-die ECC
Speed 5600 MHz (PC5-44800)
Latency Timings CL46 (46-45-45)
Features Single rank, unbuffered
Voltage 1.1 V
Lead Plating Gold
Compliant Standards RoHS, UL 94 V-0, halogen-free, JEDEC
Manufacturer Warranty Limited Lifetime Warranty
KVR56S46BS6-8
