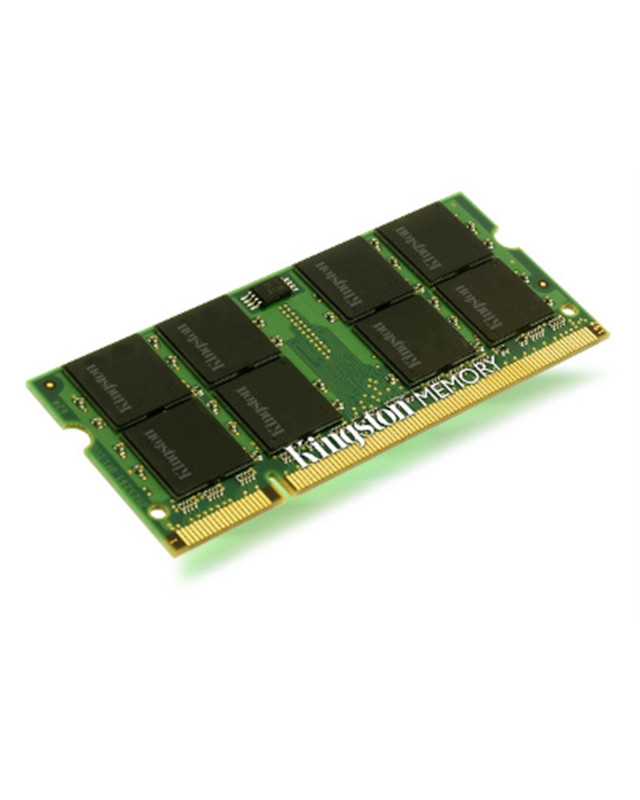

Kingston ValueRAM 4GB No Heatsink (1 x 4GB) DDR3L 1600MHz SODIMM System Memory
KVR16LS11/4
Kingston Technology is the world's independent memory leader and is well-known for providing high quality memory products at an attractive price. Kingston ValueRAM is your best source for industry-standard memory to maximise the performance and productivity of your system. Built with A-grade components only, Kingston ValueRAM memory modules come with a lifetime warranty.
JEDEC standard
1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~
1.575V) Power Supply
VDDQ
= 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
800MHz fCK for 1600Mb/sec/pin
8 independent internal bank
Programmable CAS Latency:
11, 10, 9, 8, 7, 6
Programmable Additive Latency:
0, CL - 2, or CL - 1 clock
8-bit pre-fetch
Burst Length:
8 (Interleave without any limit, sequential with
starting address 000 only), 4 with tCCD = 4 which does not
allow seamless read or write [either on the fly using A12 or MRS]
Bi-directional Differential Data Strobe
Internal(self) calibration : Internal self calibration through ZQ
pin (RZQ : 240 ohm 1%)
On Die Termination using ODT pin
Average Refresh Period
7.8us at lower than TCASE 85C,
3.9us at 85C < TCASE
< 95C
Asynchronous Reset
PCB: Height 1.18 (30mm), double sided component
CL(IDD)
11 cycles
Row Cycle Time (tRCmin)
48.125ns (min.)
Refresh to Active/Refresh
260ns (min.)
Row Active Time (tRASmin)
35ns (min.)
Maximum Operating Power
(1.35V) = 2.376 W*
UL Rating
94 V - 0
Operating Temperature
0C to 85C
Storage Temperature
-55C to +100C
JEDEC standard
1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~
1.575V) Power Supply
VDDQ
= 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
800MHz fCK for 1600Mb/sec/pin
8 independent internal bank
Programmable CAS Latency:
11, 10, 9, 8, 7, 6
Programmable Additive Latency:
0, CL - 2, or CL - 1 clock
8-bit pre-fetch
Burst Length:
8 (Interleave without any limit, sequential with
starting address 000 only), 4 with tCCD = 4 which does not
allow seamless read or write [either on the fly using A12 or MRS]
Bi-directional Differential Data Strobe
Internal(self) calibration : Internal self calibration through ZQ
pin (RZQ : 240 ohm 1%)
On Die Termination using ODT pin
Average Refresh Period
7.8us at lower than TCASE 85C,
3.9us at 85C < TCASE
< 95C
Asynchronous Reset
PCB: Height 1.18 (30mm), double sided component
CL(IDD)
11 cycles
Row Cycle Time (tRCmin)
48.125ns (min.)
Refresh to Active/Refresh
260ns (min.)
Row Active Time (tRASmin)
35ns (min.)
Maximum Operating Power
(1.35V) = 2.376 W*
UL Rating
94 V - 0
Operating Temperature
0C to 85C
Storage Temperature
-55C to +100C
