RGB Gaming Build - AMD Ryzen 5 7600X3D 6 Core 12 Thread, 4.10GHz (4.70GHz Boost), 16GB DDR5 RAM, 1TB SSD, Gigabyte RTX 3060 Graphics, Gaming PC

EXCLUSIVE
AMD Ryzen 5 7600X3D Desktop Processor
Get the 6-core gaming processor with AMD 3D V-Cache Technology built for intense gaming action.

RGB Gaming Build - AMD Ryzen 5 7600X3D 6 Core 12 Thread, 4.10GHz (4.70GHz Boost), 16GB DDR5 RAM, 1TB SSD, Gigabyte RTX 3060 Graphics, Gaming PC

Specification:


Processor
AMD Ryzen 5 7600X3D 4.10GHz 6 Core AM5 Processor, 12 Threads, 4.70GHz Boost 96MB L3 Gaming Cache

Processor Cores
6

Processor Threads
12

Core Clock Speed
4.10GHz

Core Boost Speed
4.70GHz

CPU Cooler
DeepCool AG500 BK ARGB Fan CPU Cooler, Universal Socket, Fine-Tuned 120mm PWM Addressable RGB Fan, 1850RPM, 5 Heat Pipes, 240W Heat Dissipation Power, Unique Matrix Fin Design

Memory
Adata XPG Lancer Blade AX5U5600C4616G-SLABBK 16GB U-DIMM System Memory DDR5, 5600MHz

Memory Configuration
1 x 16GB
2 Lanes (1 occupied)

SSD Drive
Kingston NV3 (SNV3S/1000G) 1TB NVMe SSD, M.2 Interface, PCIe Gen4, 2280

Format
NVMe

Max Read/Write Speeds
Up to 6000MB/s
Up to 4000MB/s

Hard Drive
N/A

Optical Drive
N/A

Graphics
Gigabyte NVIDIA GeForce RTX 3060 WINDFORCE OC 12G (rev. 2.0) Graphics Card, 12GB GDDR6, 3584 CUDA Cores, 1792 MHz Core Clock, Dual Fan, 2x DisplayPorts / 2x HDMI Ports
Core Clock
1792 MHz (Reference Card: 1777 MHz)
CUDA Cores
3584
Memory Clock
15000 MHz
Memory Size
12 GB
Memory Type
GDDR6
Memory Bus
192 bit
Memory Bandwidth (GB/sec)
360 GB/s

Graphics Card I/O
2 x DisplayPort 1.4a
2 x HDMI 2.1

Operating System
Not Supplied

Card Reader
N/A

Networking
Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Power Supply
DeepCool PF400 80 PLUS Standard Power Supply 400W, Silent Hydraulic Bearing Fan, Reliable Protection, Flat Black Cables, 85% Efficiency
Main Power Connector 24 (20+4) Pin x 1
EPS 12V Connector 8 (4+4) Pin x 1
PCI-E (6+2) Pin x 2
SATA x 3
4 Pin Peripheral x 1

Motherboard
Gigabyte A620M H Ultra Durable AMD AM5 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x DisplayPort / 1x HDMI Port

Expansion Slot
1 x PCI Express x16 slot, integrated in the CPU:
AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Rear I/O
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper

Chassis

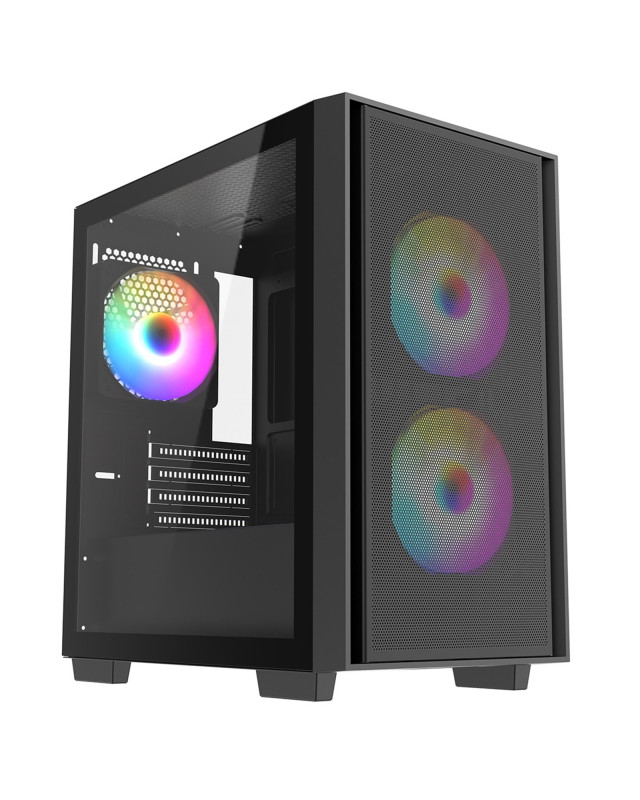

CRONUS Atlas Case, Gaming, Black, Micro Tower, 1 x USB 3.0 / 2 x USB 2.0, Tempered Glass Side Window Panel, Addressable RGB LED Fans, Micro ATX

Drive Bays
3.5" (HDD): 2
2.5" (SSD): 2

IO Ports
Buttons: Power & LED Buttons
USB Ports:
USB 2.0: 2
USB 3.0: 1
Audio Support: HD Audio

Cooling
Front: 2 x 120mm or 2 x 140mm Fans (2 x 120mm ARGB Linked Fans Included)
Top: 2 x 120mm or 2 x 140mm Fans
Rear: 1 x 120mm Fan (1 x 120mm ARGB Linked Fan Included)

Dimensions
Width: 216mm
Height: 405mm
Depth: 365mm

Package Weight
9.2 kg

Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
