- New

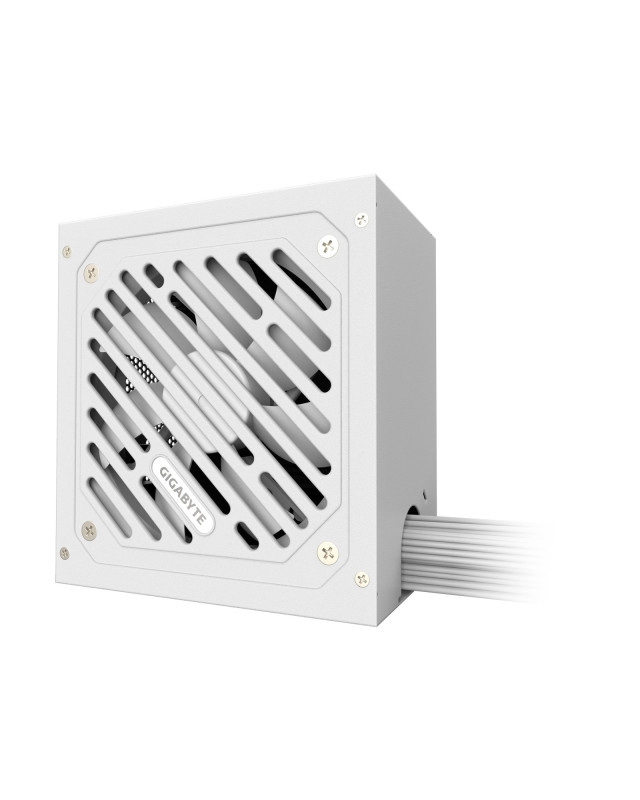

GIGABYTE GP-P550SS 550W 80 PLUS Silver Certified Power Supply, White - ATX 3.0 Standard, Quiet 120mm Fan, Flat Cable Design, BULK PACK
GP-P550SSICE
The GIGABYTE GP-P550SSICE is a high-performance power supply unit designed for desktop PCs. Here are its key features and specifications:
Key Features:
80 PLUS Silver Certified (230V EU): Ensures a 90% efficiency rate at a 50% load, reducing power wastage, heat generation, and fan noise.
Intel ATX 3.0 Standard: Compatible with ATX 3.1, supporting up to 200% power excursion and 70% low load efficiency.
120mm Fluid Dynamic Bearing (FDB) Fan: Uses oil film shock absorption technology to reduce noise and extend lifespan.
Flat Cable Design: Minimizes clutter and enhances thermal performance.
Single +12V Rail: Delivers optimal power output, stability, and hardware compatibility.
Protection Features: Includes OVP, OPP, SCP, UVP, OCP, and OTP to ensure stable operation.
3-Year Warranty: Adjusted according to different regions.
Specifications:
Model:
GP-P550SS
Type:
Intel Form Factor ATX 12V v3.0
PFC:
Active PFC (>0.9 typical)
Input Voltage:
155-240 Vac
Input Current:
6.3A
Input Frequency:
50-60 Hz
Output Capacity:
550W
Dimension:
150 x 140 x 86 mm
Fan Type:
120mm Fluid Dynamic Bearing (FDB) fan
Efficiency:
90% at typical load (230V EU)
MTBF:
>100,000 hours
Protection:
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal:
100-150ms
Hold Up Time: >
16ms
Cable Type:
Flat, All black
Connectors:
ATX/MB 20+4 Pin x 1: 600mm*1
CPU/EPS 4+4 Pin x 1: 650mm*1
PCI-e 6+2 Pin x 2: 600mm+120mm*1
SATA x 3 + 4 Pin Peripheral x 1: 500mm+120mm+120mm+120mm*1
SATA x 2 + 4 Pin Peripheral x 2: 500mm+120mm+120mm+120mm*1
Key Features:
80 PLUS Silver Certified (230V EU): Ensures a 90% efficiency rate at a 50% load, reducing power wastage, heat generation, and fan noise.
Intel ATX 3.0 Standard: Compatible with ATX 3.1, supporting up to 200% power excursion and 70% low load efficiency.
120mm Fluid Dynamic Bearing (FDB) Fan: Uses oil film shock absorption technology to reduce noise and extend lifespan.
Flat Cable Design: Minimizes clutter and enhances thermal performance.
Single +12V Rail: Delivers optimal power output, stability, and hardware compatibility.
Protection Features: Includes OVP, OPP, SCP, UVP, OCP, and OTP to ensure stable operation.
3-Year Warranty: Adjusted according to different regions.
Specifications:
Model:
GP-P550SS
Type:
Intel Form Factor ATX 12V v3.0
PFC:
Active PFC (>0.9 typical)
Input Voltage:
155-240 Vac
Input Current:
6.3A
Input Frequency:
50-60 Hz
Output Capacity:
550W
Dimension:
150 x 140 x 86 mm
Fan Type:
120mm Fluid Dynamic Bearing (FDB) fan
Efficiency:
90% at typical load (230V EU)
MTBF:
>100,000 hours
Protection:
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal:
100-150ms
Hold Up Time: >
16ms
Cable Type:
Flat, All black
Connectors:
ATX/MB 20+4 Pin x 1: 600mm*1
CPU/EPS 4+4 Pin x 1: 650mm*1
PCI-e 6+2 Pin x 2: 600mm+120mm*1
SATA x 3 + 4 Pin Peripheral x 1: 500mm+120mm+120mm+120mm*1
SATA x 2 + 4 Pin Peripheral x 2: 500mm+120mm+120mm+120mm*1
GP-P550SSICE
