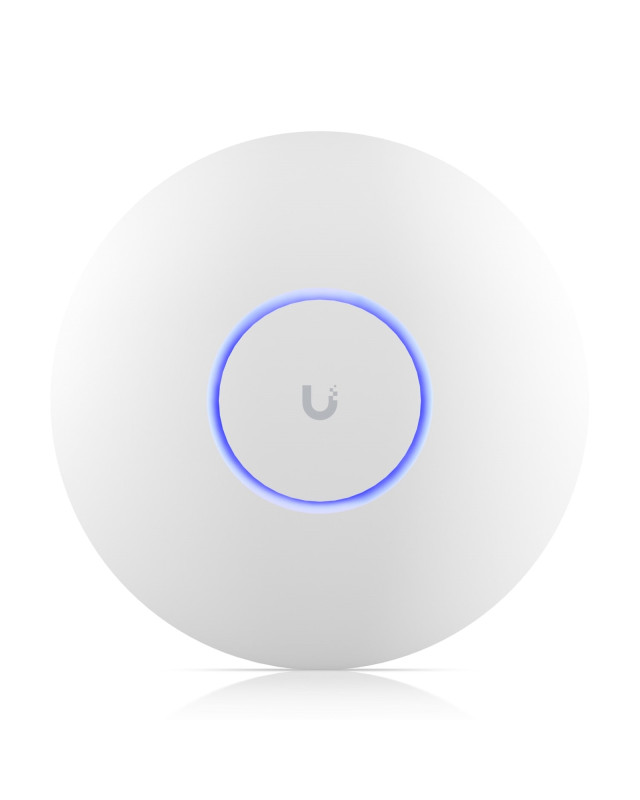

Ubiquiti U7-PRO-MAX U7 Pro Max WiFi 7 Ceiling Mounted Access Point with 2.5GbE Uplink
U7-PRO-MAX
Ubiquiti UniFi U7 Pro Max WiFi 7 Access Point
Key Features
WiFi 7 with 6 GHz support
802.11a/b/g/n/ac/ax/be
8 spatial streams
Real-time spectral analysis for enhanced channel selection
Up to 160 m² (1,750 ft²) coverage
500+ connected devices
Powered using PoE+
2.5 GbE uplink
Introducing the Ubiquiti UniFi U7-Pro-Max, the pinnacle of WiFi 7 performance. This advanced access point supports tri-band operation, enhancing network capacity and speed with up to 15 Gbps aggregate throughput.
UniFi U7 Pro Max is ideal for high-density environments, leveraging OFDMA and MU-MIMO technologies to manage network traffic efficiently. The U7-Pro-Max features advanced security protocols, and a sleek design for easy installation.
Whether for enterprise, campus, or public venue deployments, the U7-Pro-Max access point ensures reliable, high-speed connectivity and a seamless user experience.
Specifications
Technical Specifications
Mechanical
Dimensions
206 x 46 mm (8.1 x 1.8")
Weight
680 g (1.5 lb)
Enclosure Material
Polycarbonate, aluminum
Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)
Hardware
Networking Interface
(1) 1/2.5 GbE RJ45 port
Management Interface
Ethernet
Power Method
PoE+
Power Supply
UniFi PoE switch
Supported Voltage Range
44—57V DC
Max. Power Consumption
22W
Max. TX Power
2.4 GHz - 23 dBm
5 GHz - 29 dBm
6 GHz - 23 dBM
MIMO
2.4 GHz - 2 x 2
5 GHz - 4 x 4
6 GHz - 2 x 2
Throughput Rate
2.4 GHz - 688 Mbps
5 GHz - 8648 Mbps
6 GHz - 5765 Mbps
Antenna Gain
2.4 GHz - 4dBi
5 GHz - 6 dBi
6 GHz - 5.9 dBi
LEDs
White/Blue
Button
Factory reset
Mounting
Wall, ceiling (Included)
Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Software
WiFi Standards
802.11a/b/g/n/ac/ax/be
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID
8 per radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest Traffic Isolation
Supported
Concurrent Clients
500+
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11be (WiFi 7)
5 GHz - 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
6 GHz - 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi Network
Version 8.2.93 and later
Box Contents
1 x U7 Pro Max access point
1 x Mounting template level
1 x Wall mount plate
1 x Multi-purpose mounting plate
All mounting hardware
Key Features
WiFi 7 with 6 GHz support
802.11a/b/g/n/ac/ax/be
8 spatial streams
Real-time spectral analysis for enhanced channel selection
Up to 160 m² (1,750 ft²) coverage
500+ connected devices
Powered using PoE+
2.5 GbE uplink
Introducing the Ubiquiti UniFi U7-Pro-Max, the pinnacle of WiFi 7 performance. This advanced access point supports tri-band operation, enhancing network capacity and speed with up to 15 Gbps aggregate throughput.
UniFi U7 Pro Max is ideal for high-density environments, leveraging OFDMA and MU-MIMO technologies to manage network traffic efficiently. The U7-Pro-Max features advanced security protocols, and a sleek design for easy installation.
Whether for enterprise, campus, or public venue deployments, the U7-Pro-Max access point ensures reliable, high-speed connectivity and a seamless user experience.
Specifications
Technical Specifications
Mechanical
Dimensions
206 x 46 mm (8.1 x 1.8")
Weight
680 g (1.5 lb)
Enclosure Material
Polycarbonate, aluminum
Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)
Hardware
Networking Interface
(1) 1/2.5 GbE RJ45 port
Management Interface
Ethernet
Power Method
PoE+
Power Supply
UniFi PoE switch
Supported Voltage Range
44—57V DC
Max. Power Consumption
22W
Max. TX Power
2.4 GHz - 23 dBm
5 GHz - 29 dBm
6 GHz - 23 dBM
MIMO
2.4 GHz - 2 x 2
5 GHz - 4 x 4
6 GHz - 2 x 2
Throughput Rate
2.4 GHz - 688 Mbps
5 GHz - 8648 Mbps
6 GHz - 5765 Mbps
Antenna Gain
2.4 GHz - 4dBi
5 GHz - 6 dBi
6 GHz - 5.9 dBi
LEDs
White/Blue
Button
Factory reset
Mounting
Wall, ceiling (Included)
Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Software
WiFi Standards
802.11a/b/g/n/ac/ax/be
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID
8 per radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest Traffic Isolation
Supported
Concurrent Clients
500+
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11be (WiFi 7)
5 GHz - 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
6 GHz - 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi Network
Version 8.2.93 and later
Box Contents
1 x U7 Pro Max access point
1 x Mounting template level
1 x Wall mount plate
1 x Multi-purpose mounting plate
All mounting hardware
