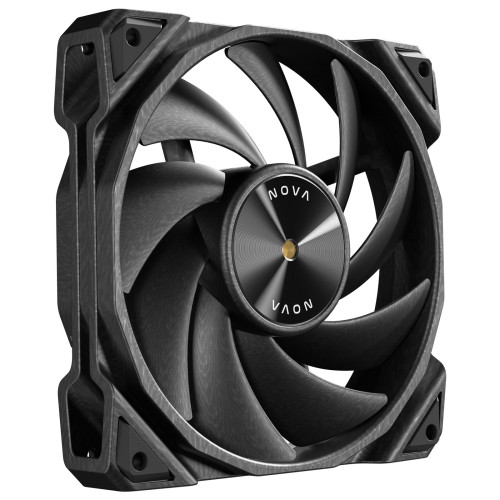

Antec NOVA 120 PWM Fan - High-Performance Cooling with Fluid Dynamic Bearing, Precise Three-Phase Speed Control, Industrial-Grad
0-761345-40050-3

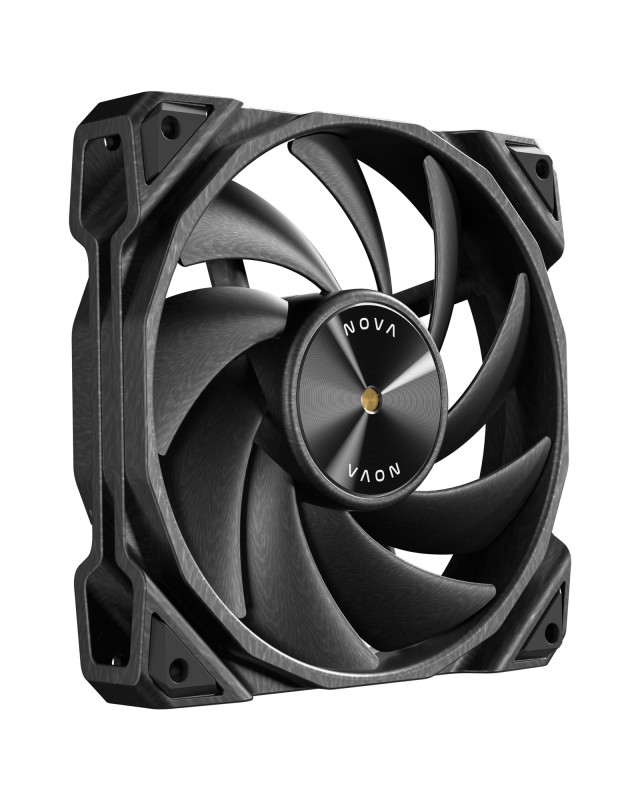

The Antec NOVA 120 PWM Fan is a high-performance cooling fan designed for efficient airflow and reduced noise. It features a three-phase PWM speed controller, allowing for precise control over fan speed according to different hardware environments and scenarios. The fan is constructed with industrial-grade metal and neodymium magnets to enhance durability and stability. Additionally, it has a dustproof design to protect internal components and extend the fan's lifespan.
Full Specification
Fan Model Name:
NOVA 12025
Fan Type:
PWM Fan
Dimensions:
120 x 120 x 25 mm
Bearing Type:
FDB (Fluid Dynamic Bearing)
Fan Speed:
Low:
300~1500±10% RPM
Medium:
350~2400±10% RPM
High:
400~3200±10% RPM
Airflow:
Low
44 CFM
Medium
70.59 CFM
High:
95.32 CFM
Air Pressure:
Low:
1.48 mmH2O
Medium
3.72 mmH2O
High:
6.56 mmH2O
Fan Noise Level:
Low:
21.5 dB(A)
Medium:
30.8 dB(A)
High:
38.7 dB(A)
Lifespan:
50,000 hours at 40°C
Connector:
4-pin PWM
Rated Voltage:
DC 12 V
Operation Voltage:
DC 6.0-13.2 V
Rated Current:
0.35A (MAX)
Warranty:
5 years
UPC:
0-761345-40050-3
