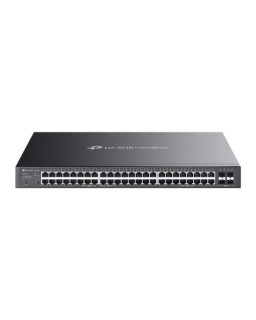

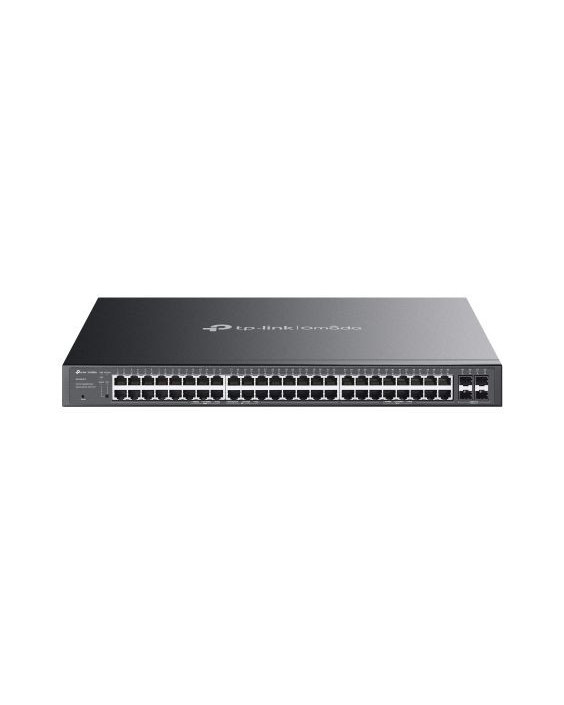

TP-LINK (SG2452LP) Omada 52-Port Gigabit Smart Switch w/ 32-Port PoE+, Centralized Management, Rackmountable

Omada 52-Port Gigabit Smart Switch with 32-Port PoE+

• 32x Gigabit 802.3af/at PoE+ ports
• 16x Gigabit non-PoE RJ45 ports and 4x Gigabit SFP slots
• 230 W total PoE budget with up to 30 W PoE output per port*
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, and IGMP Snooping
• Fanless design for quiet operation
• Durable metal casing and rackmountable design

Description

Specification

• Rackmountable: Yes
• Managed: Smart
• Number of Ports: 52
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• Max SFP Transfer Rate: GB SFP
• Interface(s): 32 x GB PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  16 x GB non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  4 x GB SFP Slots
• PoE Ports (RJ45): Standard: 802.3at/af compliant
  PoE+ Ports: 32 Ports (up to 30 W PoE Output per Port)
  PoE Power Budget: 230 W
• Switching Capacity: 104 Gbps
• Power Supply: 100-240 V AC~50/60 Hz
• Dimensions: 440 x 330 x 44 mm
• Mac Address Table: 16 K
• Packet Forwarding Rate: 77.37 Mpps
• Jumbo Frame: 9 KB
• Additional Features: Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule
• Quality of Service: "802.1p CoS/DSCP priority
  8 priority queues
  Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
  Queue Weight Config
  Bandwidth Control: Port/Flow-based Rating Limit
  Smoother Performance
  Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control"
• Layer Features: "L2 and L2+:
  16 IP Interfaces
  Static Routing
  DHCP Server
  DHCP Relay
  DHCP L2 Relay
  Static ARP
  Proxy ARP
  Gratuitous ARP
  Link Aggregation
  Spanning Tree Protocol
  Loopback Detection
  802.3x Flow Control
  Mirroring
  DLDP
  802.1ab LLDP/ LLDP-MED

  L2 Multicast:
  511 IPv4, IPv6 shared multicast groups
  IGMP Snooping
  MVR
  Multicast Filtering
  Limited IP Multicast (256 profiles and 16 entries per profile)"
• VLAN: VLAN Group: Max. 4K VLAN Groups
  802.1Q tag VLAN
  MAC VLAN: 12 Entries
  Protocol VLAN
  GVRP
  Voice VLAN
• Access Control: Support up to 230 entries
  Time-based ACL
  MAC ACL
  IP ACL
  IPv6 ACL
  Combined ACL
  Rule Operation: Permit/Deny
  Policy Action
  ACL Rules Binding
• Security: IP-MAC-Port Binding
  AAA
  802.1X
  IP/IPv6-MAC Binding
  IP Source Guard
  IPv6 Source Guard
  DoS Defend
  Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port
  Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
  Port Isolation
  Secure web management through HTTPS with SSLv3/TLS 1.2
  Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  IP/Port/MAC-based access control
• Management: " Omada App, Centralized Management & Cloud Access :
  Requires Omada Hardware, Cloud-Based or Software Controller

  Zero-Touch Provisioning :
  Requires Omada Cloud-Based Controller

  "
• .: " Management Features :
  Web-based GUI
  Command Line Interface (CLI) through telnet
  SNMPv1/v2c/v3
  SNMP Trap/Inform
  RMON (1,2,3,9 groups)
  SDM Template
  DHCP/BOOTP Client
  Dual Image, Dual Configuration
  CPU Monitoring
  Cable Diagnostics
  EEE
  SNTP
  System Log"
• Environment: Operating Temperature:0°C to 40 °C
  Storage Temperature: -40 °C to 70 °C
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: SG2452LP
  Power Cord
  Quick Installation Guide
  Rackmount Kit
  Rubber Feet

• Package Type: Retail
• Package Weight: 6.4700 kg
• Warranty: Limited Lifetime
• POE: Yes
