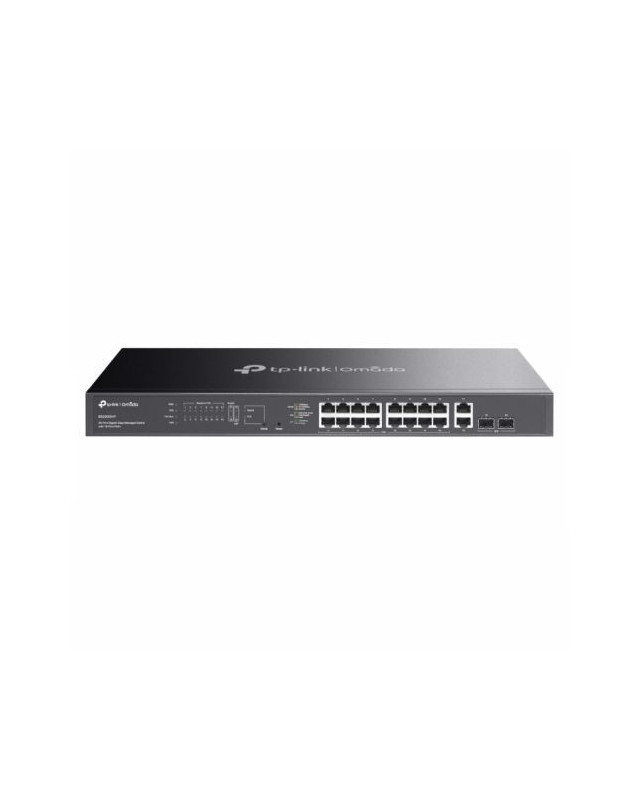

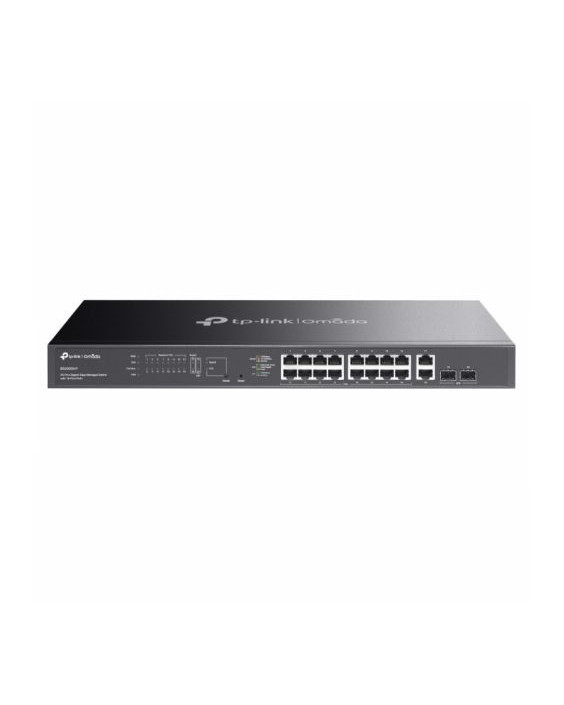

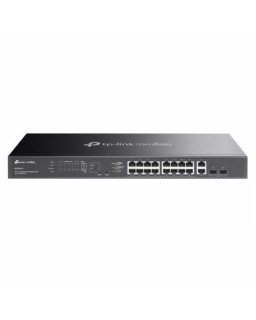

TP-LINK (ES220GMP) Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+, 2x GB SFP Ports, 250W Power Budget, Rackmountable

Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+

• 16x Gigabit 802.3af/at-compliant PoE+ RJ45 ports
• 2x Gigabit RJ45 port, 2x Gigabit SFP port
• 250W Power Budget, with up to 30W for each PoE port
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralized Cloud Management via the web or the Omada app
• Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
• Automatic Loop Prevention, VLAN, and IGMP Snooping
• Durable metal casing and rack-mountable design

Description

Specification

• Rackmountable: Yes
• Managed: Yes
• Number of Ports: 20
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• Max SFP Transfer Rate: GB SFP
• Interface(s): 16 x 10/100/1000 Mbps PoE+ RJ45 (support 802.3af PoE and 802.3at PoE+)
  2 x 10/100/1000 Mbps RJ45
  2 x Gigabit SFP
  Auto-Negotiation/Auto MDI/MDIX
• PoE Ports (RJ45): "Standard: 802.3af PoE and 802.3at PoE+ compliant
  PoE Ports: 16 ports
  PoE Budget: 250W available for all PoE+ ports, 30W max per port
  Fast PoE & Perpetual PoE
  PoE Auto Recovery
  Up to 250m PoE transmission distance"
• Switching Capacity: 40 Gbps
• Power Supply: "100-240V AC, 50/60Hz"
• Dimensions: 440 x 180 x 44 mm
• Transfer Method: Store-And-Forward
• Mac Address Table: 8K
• Packet Forwarding Rate: 29.76 Mpps
  Packet Buffer Memory: 4 Mbit
• Jumbo Frame: 15 KB
• Additional Features: Durable Metal Casing
  Fan Quantity: 2
  Physical Security Lock
  Surge Protection: 6kV
  Supports plug-and-play
• Quality of Service: Port-based/802.1p/DSCP QoS
  8 Priority Queues
  Priority Schedule Mode
  Queue Weight Config
  Bandwidth Control
  Storm Control
• Layer Features: L2 Features:
  Static Link Aggregation
  Loop Prevention / Loopback Detection
  Flow Control
  Mirroring
  Port Statistics
  802.1ab LLDP

  L2 Multicast:
  IGMP Snooping
• VLAN: MTU VLAN
  Port-Based VLAN
  802.1Q Tag VLAN
• Management: "Omada App:
  Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

  Centralized Management:
  Omada Cloud-Based Controller
  Omada Hardware Controller
  Omada Software Controller

  Cloud Access:
  Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

  Zero-Touch Provisioning:
  Requires the use of Omada Cloud-Based Controller"
• .:
  Management Features:
  Web-based GUI
  DHCP Client
  Cable Diagnostics
  Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Unified Configuration
• Environment: Operating Temperature: -5°C ~ 50°C
  Storage Temperature: -40°C ~70°C
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: ES220GMP
  Power Cord
  Mounting Brackets
  Rubber Feet
  Screws
  Installation Guide
• Package Type: Retail
• Package Weight: 3.0800 kg
• Warranty: Limited Lifetime
• POE: Yes
