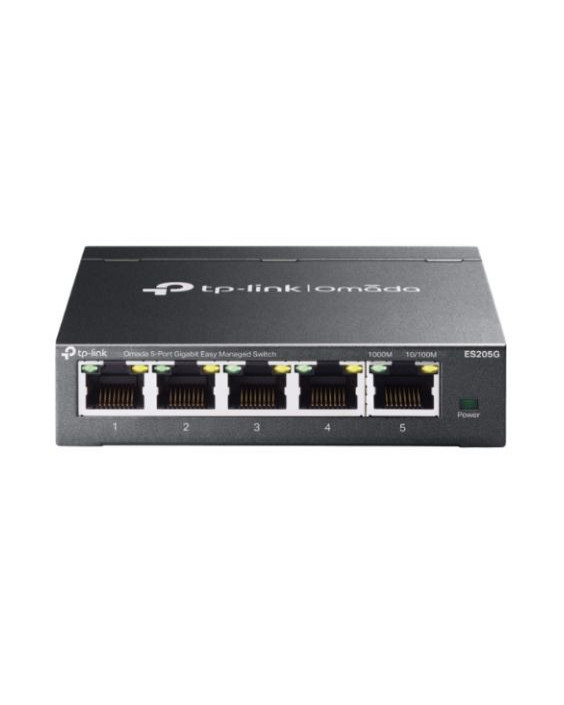

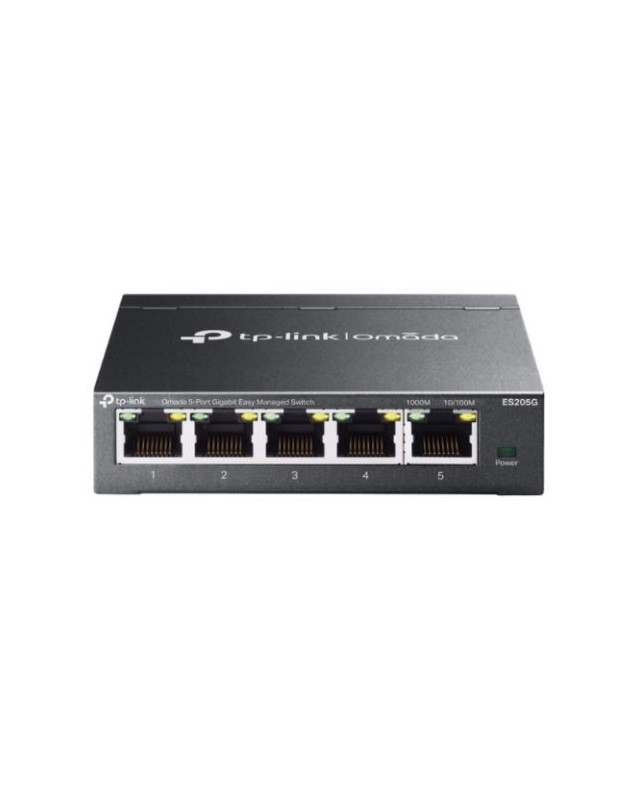

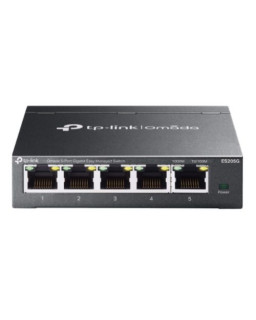

TP-LINK (ES205G) Omada 5-Port Gigabit Easy Managed Switch, 5x GB Ports, Metal Casing

TP-LINK (ES205G) Omada 5-Port Gigabit Easy Managed Switch, 5x GB Ports, Metal Casing

ES205G
ES205G
35 Items
£29.40
VAT included

Order now and receive it...

✔ between 23 Jun and 24 Jun   with  Standard Delivery - Free over £65

✔ 18 Jun   with  Next Working Day - Order Before 1pm Mon-Fri (not guaranteed)



Omada 5-Port Gigabit Easy Managed Switch

  • 5x 10/100/1000Mbps RJ45 ports
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design




Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.








Description

Specification

  • Rackmountable: No
  • Managed: Yes
  • Number of Ports: 5
  • Max RJ45 Transfer Rate: 10/100/1000 Mbps
  • Interface(s): 5 x 10/100/1000 Mbps RJ45 Ports
    AUTO Negotiation/AUTO MDI/MDIX
  • PoE Ports (RJ45): -
  • Switching Capacity: 10 Gbps
  • Power Supply: External DC Power Adapter (Output: 5 VDC/ 0.6 A)
  • Dimensions: 100 x 98 x 25 mm
  • Mac Address Table: 8K
  • Packet Forwarding Rate: 7.4 Mpps
  • Jumbo Frame: 15 KB
  • Additional Features: Fanless
    Durable metal casing
    Desktop/wall mounting design
    Physical security lock
  • Quality of Service: Port-based/802.1p/DSCP QoS
    8 Priority Queues
    Priority Schedule Mode
    Queue Weight Config
    Bandwidth Control
    Storm Control
  • Layer Features: L2 Features:
    Static Link Aggregation
    Loop Prevention / Loopback Detection
    Flow Control
    Mirroring
    Port Statistics
    802.1ab LLDP

    L2 Multicast:
    IGMP Snooping
  • VLAN: MTU VLAN
    Port-Based VLAN
    802.1Q Tag VLAN
  • Management: "Omada App:
    Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

    Centralized Management:
    Omada Cloud-Based Controller
    Omada Hardware Controller
    Omada Software Controller

    Cloud Access:
    Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

    Zero-Touch Provisioning:
    Requires the use of Omada Cloud-Based Controller"
  • .:
    Management Features:
    Web-based GUI
    DHCP Client
    Cable Diagnostics
    Automatic Device Discovery
    Batch Configuration
    Batch Firmware Upgrading
    Unified Configuration
  • Environment: Operating Temperature: 0°C ~40°C
    Storage Temperature: -40°C ~70°C
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
  • Package Contents: ES205G
    Power Adapter
    Installation Guide
    Rubber Feet
  • Package Type: Retail
  • Package Weight: 0.3800 kg
  • Warranty: Limited Lifetime
  • POE: No
ES205G
