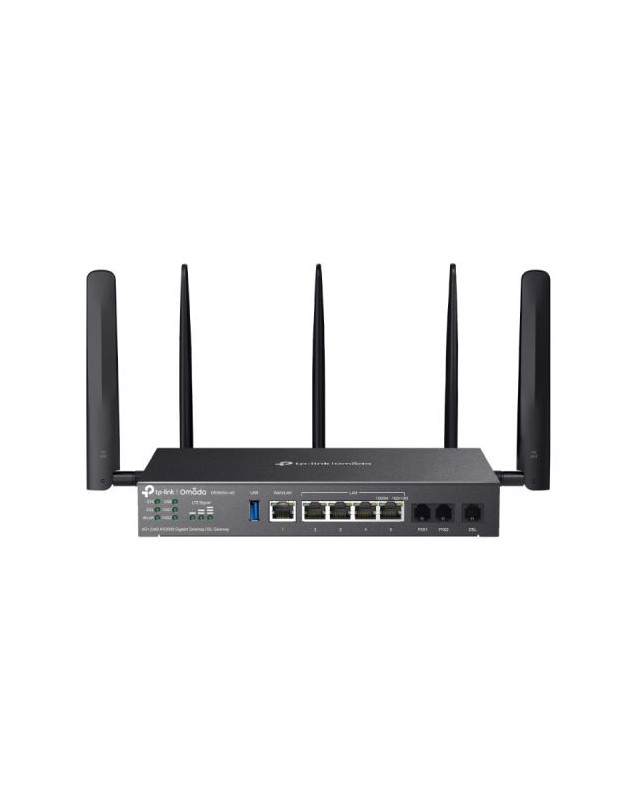

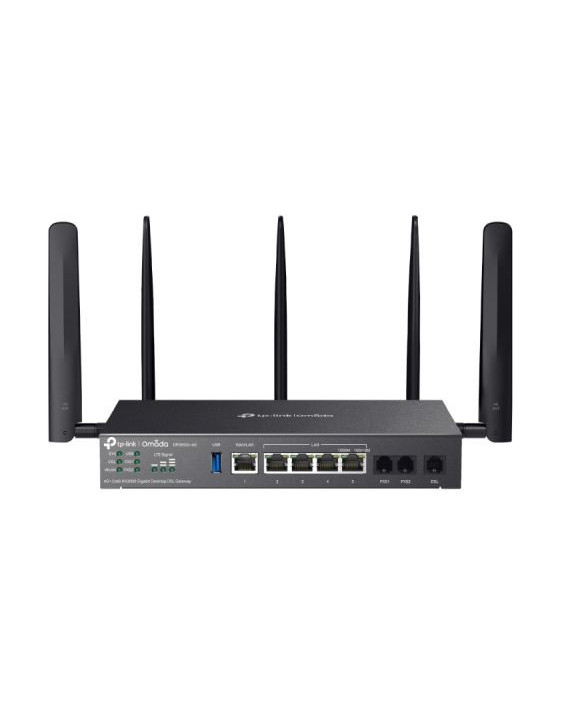

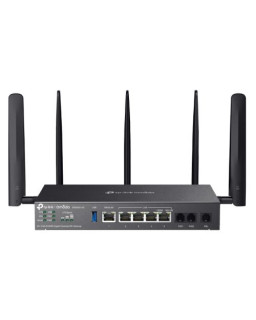

TP-LINK (DR3650v-4G) Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway, 4G+ Cat6 up to 300Mbps, VDSL2 35b, USB, VoIP Support, Centralized Management, Mesh Tech
DR3650V-4G
Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway
- AX3000 WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- 4G+ Cat6 up to 300Mbps
- 3x RJ11 Ports (2x FXS, 1x DSL) & 5x RJ45 Gigabit Ports & 1x USB 3.0 Port
- 2x Nano SIM for 4G/LTE Failover
- VDSL2 35b: Supports 350Mbps DSL Access
- VDSL2/ADSL2+/ADSL2/ADSL Compatibility
- IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
- Load Balancing Across DSL, 4G, and Ethernet WAN for Optimized Connectivity
- Centralized Cloud Management
- Desktop/Wall/Rack Mounting (Purchase Rackmount Kit-D226 Separately)
Get the Higher DSL Speeds Cost-Effectively
The integrated DSL port supports VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business.
Versatile Connectivity
DR3650v-4G’s compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the FXS ports supports VoIP for reliable voice communication. The USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection.
Up to 3.0 Gbps Business-Level WiFi 6 Empowers Small and Medium Business
- HE 160 - Double the data at peak transmission times on a single stream.
- OFDMA - Enables different devices to share one transmission stream, increasing efficiency.
- 1024 QAM - 25% more data encoded at one time.
Software Defined Networking (SDN) with Cloud Access
Centralized cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintaince costs.
High-Security and High-Performance VPN
SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
Description
Specification
- Type: VDSL2/ADSL2 Router
- Connectivity: Wireless
- Wi-Fi Rating: AX3000
- Max Single Band Wi-Fi Rate: 2402 Mbps
- Max Wired Transfer Rate: 10/100/1000 Mbps
- Bands: Dual Band
- Signal Rate: 5 GHz: 2402 Mbps
2.4 GHz: 574 Mbps
4G+ Cat6 up to 300Mbps - Interface(s): 1 x Gigabit WAN/LAN Port
4 x Gigabit LAN Ports
1 x DSL Port
2 x FXS Ports
1 x USB 3.0 (supports USB LTE dongle and USB Storage)
Dual Nano SIM Slot (4G+ Cat6) - Frequency: 2.4 GHz & 5 GHz
- Button(s): Reset Button
- Power Supply: 12V DC / 3.3A Power Adapter
Max Power Consumption:
Power adapter not included: 28.482 W (Full load + USB)
Power adapter included: 31.42 W (Full load + USB) - Antenna(s): Wi-Fi: 3x 5GHz 5dBi & 2.4GHz 3.5dBi dual-band detachable antennas
LTE: 2x 4.0dBi omnidirectional detachable antennas - Dimensions: (WxDxH) 226 x 131 x 35 mm) (Antenna dimensions are not
included) - Wireless Functions: Seamless Roaming
Mesh (with EAP that supports Mesh)
OFDMA
Beamforming
Enable/Disable SSID Broadcast
Enable/Disable Wireless Radio
MU-MIMO
Load Balance
Automatic Channel Selection Algorithm
Airtime Fairness
Rate Limit: Based on SSID/Client
Transmit Power Control: Adjust transmit Power on dBm
Multiple SSIDs: 16 in total (8 per radio)
Guest Network - Security: "WiFi Encryption:
WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Access Control:
Source/Destination IP Based Access Control
Filtering:
Web Group Filtering
URL Filtering
Web Security
ARP Inspection:
Sending GARP Packets
ARP Scanning
IP-MAC Binding
Attack Defense:
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN" - DHCP: DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP - Port/NAT Forwarding: "66 Byte Packet Forwarding Rate:
1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate:
81,274 pps / 91,275 pps" - VPN Support: "GRE:
Only in Standalone Mode
SSL VPN:
50 Tunnels
IPsec VPN:
100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec Failover
IKE v1/v2
MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
" - .: PPTP VPN:
PPTP VPN Server
PPTP VPN Client (10)
50 Tunnels
PPTP with MPPE Encryption
L2TP VPN:
L2TP VPN Server
L2TP VPN Client (10)
50 Tunnels
L2TP over IPSec
OpenVPN:
OpenVPN Server
OpenVPN Client (5)
55 OpenVPN Tunnels
""Certificate + Account"" Mode
Full Mode
WireGuard VPN:
Yes - Management: Omada App
Centralized Management
Cloud Access
Zero-Touch Provisioning
Maintenance:
Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute)
NTP Synchronize
Port Mirroring
CLI (only in Standalone Mode)
Syslog Support
TR-069 (data models of TR-098 and TR181 are supported)
- .: Management Features:
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration - Dynamic DNS: "Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization"
- USB Application: Supports USB LTE dongle and USB Storage
- Additional Features: Flash: 256 MB NAND
DRAM: 512 MB DDR4
Desktop/Wall-mounting (Purchase Rackmount Kit Separately) - Environment: Operating Temperature: 0C°~40°C (32°F ~104°F)
Storage Temperature: -40°C to 70°C (-40 °F to 158 °F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing - Package Contents: "DR3650v-4G
Power Adapter
Ethernet Cable
Phone Cable
Rubber Feet,
SIM Card Eject Pin
Quick Installation Guide" - Package Type: Retail
- Package Weight: 1.6500 kg
- Warranty: Limited Lifetime
- Wireless Standard: Wi-Fi 6/6E (802.11ax)
- Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)
DR3650V-4G
