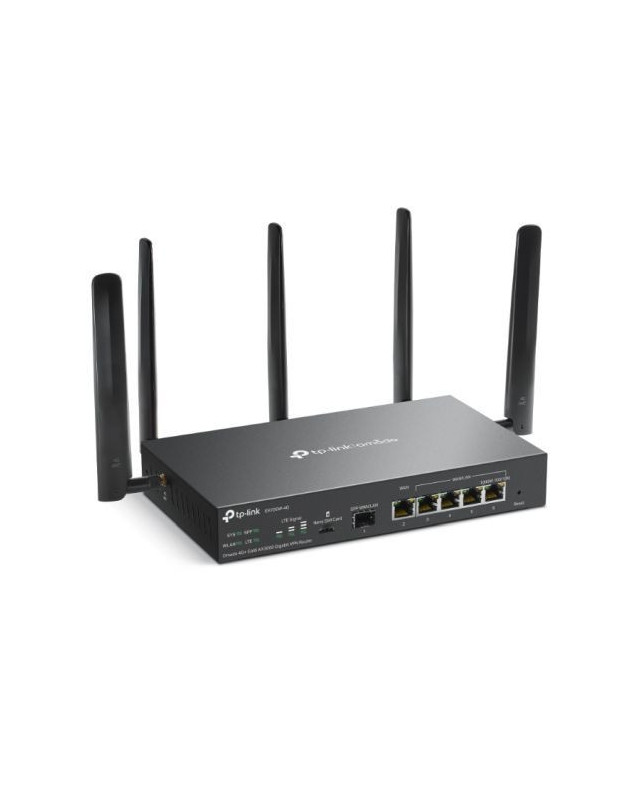

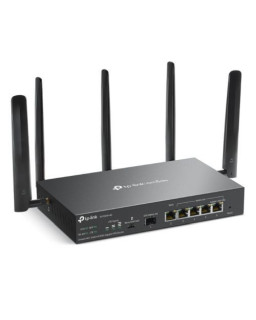

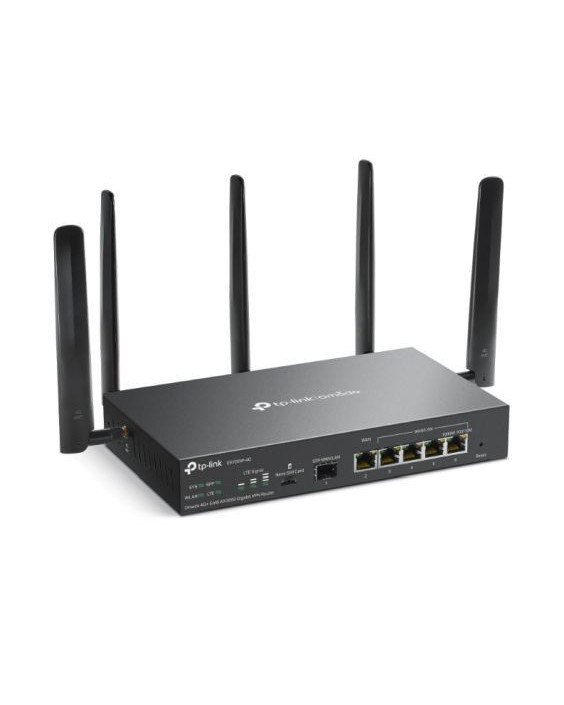

TP-LINK (ER706W-4G) Omada 4G+ Cat6 Dual Band AX3000 VPN Router, 6x GB Ports, Omada Mesh, High-Security VPN

Omada 4G+ Cat6 AX3000 Gigabit VPN Router


• Support 4G+ Cat6: Insert a Nano SIM card to enjoy up to 300 Mbps.
• AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
• 6 Gigabit Ethernet Ports: Provide high-speed wired connectivity.
• 5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals.
• Centralized Management: Cloud access and the Omada app for easy management.
• Omada Mesh: Seamlessly connects to EAPs that support mesh technology.
• High-Security VPN: Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN.

Description

Specification

• Type: 4G Router
• Connectivity: Wireless
• Wi-Fi Rating: AX3000
• Max Single Band Wi-Fi Rate: 2402 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Bands: Dual Band
• Signal Rate: "5GHz: Up to 2402Mbps
  2.4GHz: Up to 574Mbps (HE160)

  4G Frequency:
  Downlink: 300 Mbps;
  Uplink: 50 Mbps"
• Interface(s): 1 x Gigabit SFP WAN/LAN Port
  1 x Gigabit WAN Port
  4 x Gigabit LAN/WAN Ports
  1 x Nano SIM Card Slot
• Frequency: 2.4GHz and 5GHz
• Button(s): Reset Button
• Power Supply: 12VDC / 2A Power Adapter
  Max Power Consumption: 17.3W
• Antenna(s): Wi-Fi:
  Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas

  LTE:
  Two 4.0dBi omnidirectional detachable antennas
• Dimensions: (WxDxH )226 x 131 x 35 mm) (Antenna dimensions are not
  included)
• Wireless Functions: Seamless Roaming
  Mesh (with EAP that supports Mesh)
  OFDMA
  Beamforming
  MU-MIMO
  Rate Limit: Based on SSID/Client
  Airtime Fairness
  Multiple SSIDs: 16 in total (8 per radio)
  Guest Network
• Security: "Wireless Encryption:
  WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise

  Access Control:
  Source/Destination IP Based Access Control

  Filtering:
  Web Group Filtering
  URL Filtering
  Web Security

  ARP Inspection:
  Sending GARP Packets
  ARP Scanning
  IP-MAC Binding

  Attack Defense:
  TCP/UDP/ICMP Flood Defense
  Block TCP Scan (Stealth FIN/Xmas/Null)
  Block Ping from WAN"
• DHCP: DHCP Server
  DHCPv6 PD Server (only in Standalone Mode)
  DHCP Options Customization
  DHCP Address Reservation
  Multi-IP Interfaces
  Multi-Net DHCP
• Port/NAT Forwarding: "66 Byte Packet forwarding rate:1,453,489 pps / 1,453,488 pps
  1,518 Byte Packet forwarding rate: 81274 pps / 91275 pps"
• VPN Support: "IPsec VPN :
  100 IPSec VPN Tunnels
  LAN-to-LAN, Client-to-LAN
  Main, Aggressive Negotiation Mode
  DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
  IPsec Failover
  IKE v1/v2
  MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
  NAT Traversal (NAT-T)
  Dead Peer Detection (DPD)
  Perfect Forward Secrecy (PFS)

  PPTP VPN :
  PPTP VPN Server
  PPTP VPN Client (10)
  50 Tunnels
  PPTP with MPPE Encryption
  "
• .:
  L2TP VPN :
  L2TP VPN Server
  L2TP VPN Client (10)
  50 Tunnels
  L2TP over IPSec

  OpenVPN :
  OpenVPN Server
  OpenVPN Client (5)
  55 OpenVPN Tunnels
  ""Certificate + Account"" Mode
  Full Mode
• Management: Omada App
  Centralized Management
  Cloud Access
  Zero-Touch Provisioning

  Maintenance:
  Web Management Interface
  Remote Management
  Export & Import Configuration
  SNMP v1/v2c/v3
  Diagnostics (Ping & Traceroute)
  NTP Synchronize
  Port Mirroring
  CLI (Standalone Mode)
  Syslog Support

  Management Features:
  Automatic Device Discovery
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule
  Captive Portal Configuration
• Dynamic DNS: "Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization"
• Additional Features: "ACL:
  IP/Port/Protocol/Domain Name Filtering

  Advanced Routing:
  Static Routing
  Policy Routing
  RIP
  OSPF

  Bandwidth Control:
  IP-Based Bandwidth Control

  Load Balance:
  Intelligent Load Balance
  Application Optimized Routing
  Link Backup(Timing, Failover)
  Online Detection

  Session Limit:
  IP-Based Session Limit"
• .:
  NAT:
  One-to-One NAT
  Multi-Net NAT
  Virtual Server
  Port Triggering
  NAT-DMZ
  FTP/H.323/SIP/IPSec/PPTP ALG
  UPnP
• Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
  Storage Temperature: -40°C~70°C (-40°F~158°F)
  Operating Humidity: 10% ~ 90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: ER706W-4G
  Power Adapter
  Quick Installation Guide
• Package Type: Retail
• Package Weight: 1.5500 kg
• Warranty: Limited Lifetime
• Wireless Standard: Wi-Fi 6/6E (802.11ax)
• Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)
