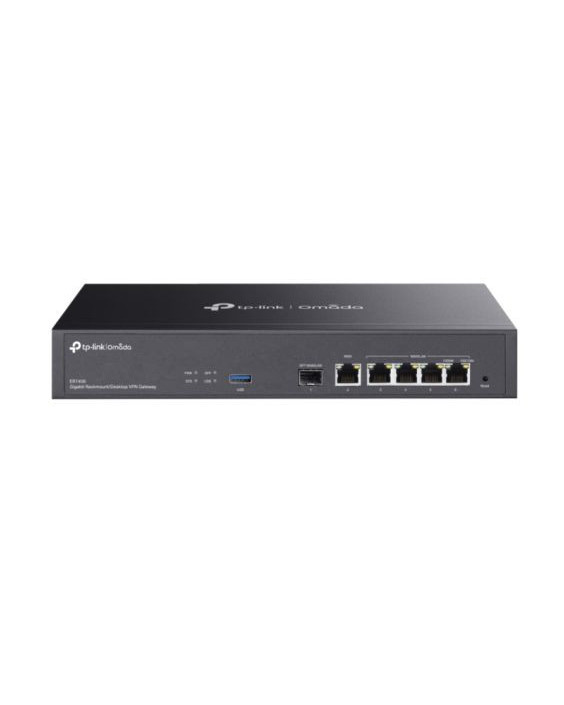

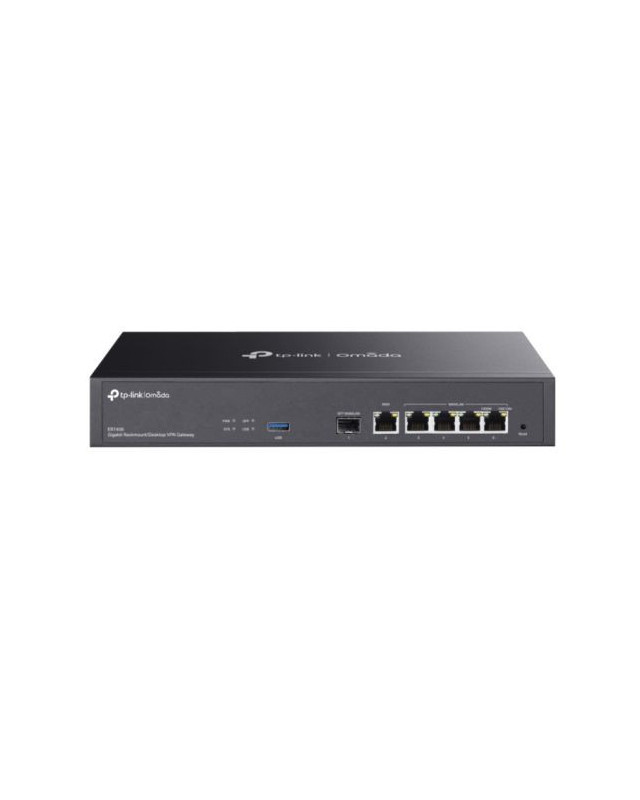

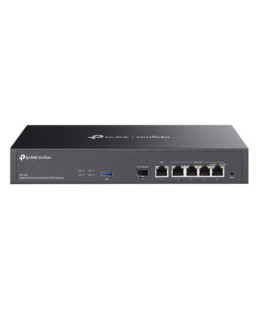

TP-LINK (ER7406) Omada Gigabit Rackmount/Desktop VPN Gateway, GB SFP WAN/LAN, 5x GB Ports, USB, Centralized Management

Omada Gigabit Rackmount/Desktop VPN Gateway

• 1x Gigabit SFP WAN/LAN port
• 5x Gigabit RJ45 ports (1x WAN, 4x WAN/LAN)
• 1x USB 3.0 port (Supports USB storage, and LTE backup with LTE dongle)
• Load Balancing on up to 5 WAN ports raises the utilization rate of multi-line broadband
• High-security SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN
• Centralized cloud management via the web or the Omada app
• DoS defense, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security.
• Rackmount/Desktop

Description

Specification

• Type: VPN Router
• Connectivity: Wired
• Max Single Band Wi-Fi Rate: None
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Interface(s): 1 x Gigabit SFP WAN/LAN
  1 x Gigabit WAN
  4 x Gigabit LAN/WAN
  1 x USB 3.0 Port (supports USB LTE dongle and USB storage)
• IEEE Standards & Protocols: "IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q

  TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP"
• Button(s): Reset Button
• Power Supply: "100-240VAC, 50/60Hz
  Max Power Consumption:
  7.5W (with USB 3.0 connected)
  4.5W (without USB 3.0 connected)"
• Antenna(s): -
• Dimensions: (WxDxH) 294 x 140 x 44 mm
• Security: Access Control:
  Source/Destination IP Based Access Control

  Filtering:
  WEB Group Filtering
  URL Filtering
  Web Security

  ARP Inspection:
  Sending GARP Packets
  ARP Scanning
  IP-MAC Binding

  Attack Defense:
  TCP/UDP/ICMP Flood Defense
  Block TCP Scan (Stealth FIN/Xmas/Null)
  Block Ping from WAN
• DHCP: DHCP Server
  DHCPv6 PD Server (only in Standalone Mode)
  DHCP Options Customization
  DHCP Address Reservation
  Multi-IP Interfaces
  Multi-Net DHCP
• Port/NAT Forwarding: One-to-One NAT
  Multi-Net NAT
  Port Forwarding
  Port Triggering
  NAT-DMZ
  FTP/H.323/SIP/IPSec/PPTP ALG
  UPnP
• VPN Support: "GRE:
  Yes (Only in Standalone Mode)

  SSL VPN:
  50 Tunnels

  IPsec VPN:
  100 IPSec VPN Tunnels
  LAN-to-LAN, Client-to-LAN
  Main, Aggressive Negotiation Mode
  DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
  IPsec Failover
  IKE v1/v2
  MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
  NAT Traversal (NAT-T)
  Dead Peer Detection (DPD)
  Perfect Forward Secrecy (PFS)

  "
• .: PPTP VPN:
  PPTP VPN Server
  PPTP VPN Client (10)
  50 Tunnels
  PPTP with MPPE Encryption

  L2TP VPN:
  L2TP VPN Server
  L2TP VPN Client (10)
  50 Tunnels
  L2TP over IPSec

  OpenVPN:
  OpenVPN Server
  OpenVPN Client (5)
  55 OpenVPN Tunnels
  ""Certificate + Account"" Mode
  Full Mode
  Diagnostics (Ping & Traceroute) (Standalone Mode)
  NTP Synchronize (Standalone Mode)
  Port Mirroring
  CLI (Standalone Mode)
  Syslog Support
• Management: "Omada App, Centralized Management & Cloud Access:
  Requires Omada Hardware, Cloud-Based, or Software Controller

  Service:
  Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

  Maintenance:
  Web Management Interface
  Remote Management
  Export & Import Configuration
  SNMP v1/v2c/v3
  Diagnostics (Ping & Traceroute) (Standalone Mode)
  NTP Synchronize (Standalone Mode)
  Port Mirroring
  CLI (Standalone Mode)
  Syslog Support

  "
• .: Zero-Touch Provisioning:
  Requires Omada Cloud-Based Controller

  Management Features:
  Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule
• USB Application: "Supports USB storage, and LTE backup with LTE dongle"
• Additional Features: "Advanced Routing:
  Static Routing
  Policy Routing
  RIP (Standalone Mode)
  OSPF (Standalone Mode)

  Bandwidth Control:
  IP-based Bandwidth Control

  Load Balance:
  Intelligent Load Balance
  Application Optimized Routing
  Link Backup (Timing, Failover)
  Online Detection

  "
• .: NAT:
  One-to-One NAT
  Multi-Net NAT
  Port Forwarding
  Port Triggering
  NAT-DMZ
  FTP/H.323/SIP/IPSec/PPTP ALG
  UPnP

  Session Limit:
  IP-based Session Limit
• Environment: Operating Temperature: 0 °C to 50 °C (32 °F to 122°F)
  Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
  Operating Humidity: 10% to 90% non-condensing
  Storage Humidity: 5% to 90% non-condensing
• Package Contents: ER7406
  Power Cord
  Quick Installation Guide
  Rackmount Kit
• Package Type: Retail
• Package Weight: 1.7100 kg
• Warranty: Limited Lifetime
