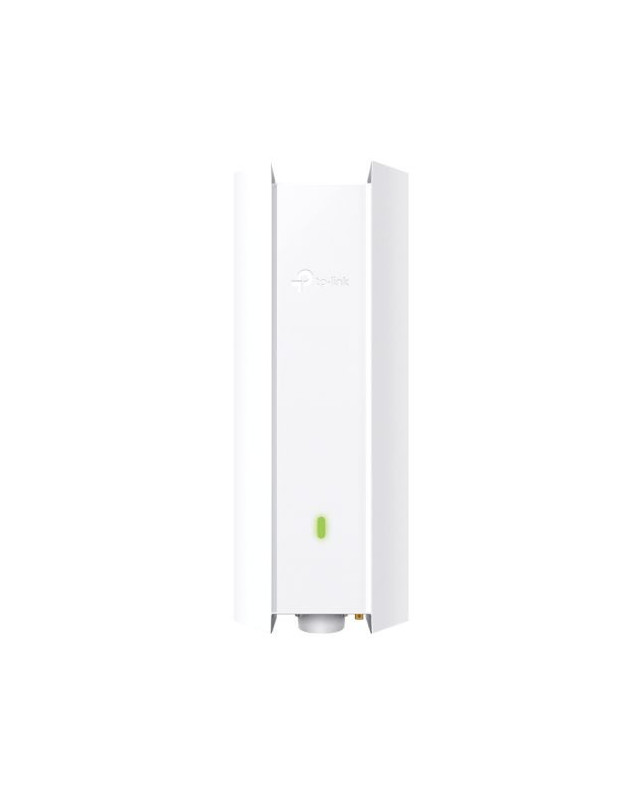

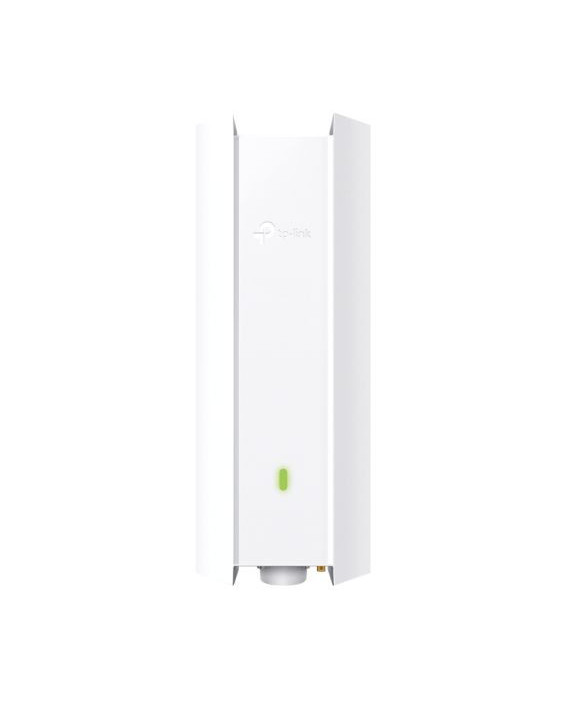

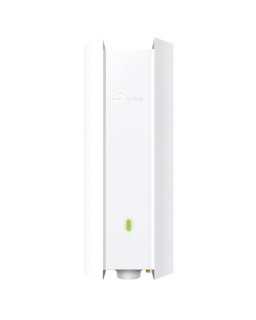

TP-LINK (EAP623-OUTDOOR HD) Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point, Dual Band, OFDMA, MU-MIMO, 1024-QAM, PoE+, Mesh

TP-LINK (EAP623-OUTDOOR HD) Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point, Dual Band, OFDMA, MU-MIMO, 1024-QAM, PoE+, Mesh

EAP623-OUTDOOR HD
EAP623-OUTDOOR HD
8 Items
£148.47
VAT included

Order now and receive it...

✔ between 30 Jun and 1 Jul   with  Standard Delivery - Free over £65

✔ 25 Jun   with  Next Working Day - Order Before 1pm Mon-Fri (not guaranteed)



AX1800 Indoor/Outdoor Wi-Fi 6 Access Point

  • Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz.
  • Supports WiFi 6 technologies, such as 1024-QAM and OFDMA, etc.
  • High-density connectivity up to 1,000+ clients.
  • Long-range coverage with the high-power amplifier and smart antennas.
  • IP67 weatherproof enclosure for various outdoor environments.
  • Advanced Functions: Centralized management, Omada mesh, and seamless roaming.
  • PoE+ Powered: Supports 802.3at PoE (adapter not included).




Long-Range, High-Speed WiFi 6

Professional antennas with high-power amplifiers utilize WiFi 6 technology to deliver robust and extensive wireless coverage.
Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps.





Explore More with Smart Antennas

Equipped with horizontally polarized and vertically polarized antennas, EAP623-Outdoor HD’s intelligent algorithms automatically select the optimal antennas, bringing lower interference, longer coverage, and higher performance.





Ideal for High-Density Outdoor Scenes

OFDMA and MU-MIMO provide simultaneous connections for dozens of clients in large open areas.
Equipped with an IP67 weatherproof enclosure, our EAP623-Outdoor HD withstands the most extreme environments.






Description

Specification

  • Primary Function: Access Point
  • Access Point Mode: Yes (Access Point Mode)
  • Wireless Standard: 802.11ax (Wi-Fi 6/6E)
  • Bands: Dual Band
  • Wi-Fi Rating: AX1800
  • Max Single Band Wi-Fi Rate: 1201 Mbps
  • Max Wired Transfer Rate: 10/100/1000 Mbps
  • Interface(s): 1 x Gigabit Ethernet Port
  • Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax
  • Antenna(s): 2 x Internal Dual-Band Omni Antennas
    2.4 GHz: 4.0 dBi
    5 GHz: 5.0 dBi
  • Button(s): Reset
  • Power Supply: 802.3at PoE
    48V Passive PoE

    Note: PoE adapter is not included
  • Dimensions: 106.5 x 57 x 281 mm
  • Weatherproof: Yes (Weatherproof)
  • Frequency: 5 GHz: Up to 1201 Mbps
    2.4 GHz: Up to 574 Mbps
  • EIRP: "CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP)"
  • Wireless Functions: Mesh
    Seamless Roaming(802.11k/v/r)
    Automatic Channel Assignment
    Load Balance
    Band Steering
    Beamforming
    Airtime Fairness
    Multiple SSIDs:16 (8 for each band)
    Wireless Statistics
    Wireless Schedule
    Reboot Schedule
    RADIUS Accounting
    MAC Authentication
    Static IP/Dynamic IP
  • Security: "VLAN
    Access Control
    Rogue AP Detection
    Captive Portal Authentication
    Maximum number of MAC Filter: 4,000
    Wireless Isolation between Clients
    WPA-Personal/Enterprise
    WPA2-Personal/Enterprise
    WPA3-Personal/Enterprise
    802.1X Support"
  • Wireless Range: Long-range coverage
  • Management: "Omada App
    Restore & Backup
    Firmware update via Web
    NTP
    Centralized Management (Requires Omada Controllers)
    Cloud Access
    Email Alerts
    Management MAC Access Control
    SNMP: v1, v2c
    SSH
    Web-based Management"
  • Additional Features: See Overview
  • Environment: Operating Temperature: -30–70°C (-22–158°F)
    Storage Temperature: -40–70°C (-40–158°F)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing
  • Package Contents: EAP623-Outdoor HD
    Installation Guide
    Mounting Kit
    Pole/Wall Mounting Kits
    Waterproof Kit
  • Package Type: Retail
  • Package Weight: 1.1600 kg
  • Warranty: Limited Lifetime
