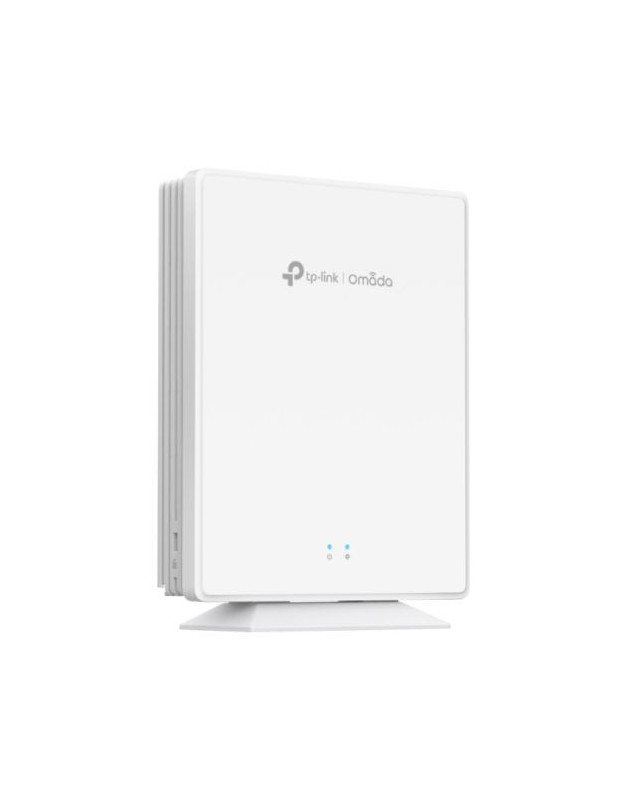

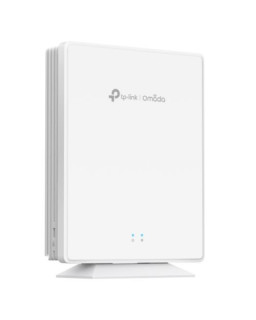

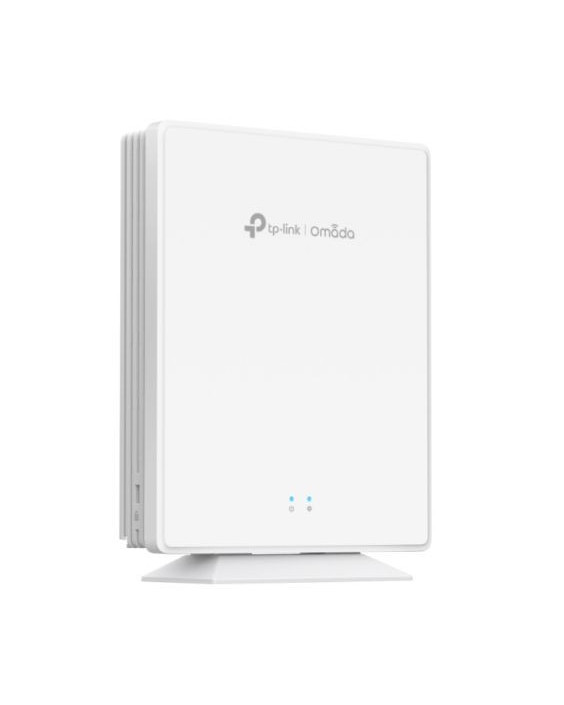

TP-LINK (EAP650-DESKTOP) AX3000 Dual Band Desktop Wi-Fi 6 Access Point, PoE++, 4x GB Ports, Omada Mesh

Omada AX3000 Desktop Wi-Fi 6 Access Point

• Blazing-Fast AX3000 WiFi 6 Speeds: 574 Mbps on 2.4 GHz and 2402 Mbps on 5GHz totals 2976 Mbps WiFi speeds.
• Multiple Gigabit Ports: Connect multiple devices with 4x Gigabit Ethernet Ports.
• Convenient Deployment: Supports both 802.3bt PoE++ and DC (adapter included) for easy and quick deployment.
• No Installation needed: Supports desktop installation without the need for additional setup.
• High Flexibility: Provide flexible installation solutions for both desktop and wall mounting.
• Advanced Functions: Omada Mesh, Seamless Roaming, Centralized Cloud Management.

Description

Specification

• Primary Function: Access Point
• Access Point Mode: Yes (Access Point Mode)
• Wireless Standard: 802.11ax (Wi-Fi 6/6E)
• Bands: Dual Band
• Wi-Fi Rating: AX3000
• Max Single Band Wi-Fi Rate: 2402 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Interface(s): "4 x 1Gbps Ethernet Ports + 1x FXS Port
  (One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input)"
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax
• Antenna(s): Internal Omni:
  2.4 GHz: 2x 5 dBi
  5 GHz: 3x 4.7 dBi
• Button(s): Reset
  LED
• Power Supply: 802.3 af/at/bt PoE or 12V/1.5A DC
  *PoE Out requires 802.3at/bt PoE power supply
• Power Consumption: 17.3W (PoE Out Off)
• Dimensions: 175 x 140 x 33 mm
• Weatherproof: No
• Frequency: 5 GHz: Up to 2402 Mbps
  2.4 GHz: Up to 574 Mbps
• EIRP: "<20 dBm(2.4 GHz, EIRP)
  <23 dBm(5 GHz, band1 & band2, EIRP)
  <29 dBm(5 GHz, band3, EIRP)"
• Wireless Functions: "2x2 (2.4G & 5G) MU-MIMO
  HE160 (160 MHz Bandwidth)
  OFDMA
  Omada Mesh
  Seamless Roaming
  Multiple SSIDs (16 SSIDs, 8 on each band)
  Enable/Disable SSID Broadcast
  Enable/Disable Wireless Radio
  Guest Network
  Automatic Channel Assignment"
• .: Beamforming
  Rate Limit (Based on SSID/Client)
  Band Steering
  Load Balance
  Airtime Fairness
  Transmit Power Control (Adjust Transmit Power on dBm)
  QoS (WMM)
  RADIUS Accounting
  MAC Authentication
  Reboot Schedule
  Wireless Schedule and Statistics
  Static IP/Dynamic IP
• Security: "Captive Portal Authentication
  Access Control
  Wireless Mac Address Filtering
  Wireless Isolation Between Clients
  VLAN
  Rogue AP Detection
  802.1X Support
  WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise"
• Wireless Range: 1500 ft squ.
• Management: "Omada App
  Centralized Management (Hardware, Software & Cloud-Based Controller)
  Cloud Access
  Email Alerts
  LED ON/OFF Control
  Management MAC Access Control
  SNMP v1, v2c, v3
  System Log
  SSH
  Web-based Management
  Zero-Touch Provisioning - Requires Omada Cloud-Based controller"
• Additional Features: See Overview
• Environment: Operating Temperature: 0–40 °C (32–104 °F)
  Storage Temperature: -40–70 °C (-40–158 °F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: EAP650-Desktop
  Desktop/Wall Mounting Kit
  Installation Guide
• Package Type: Retail
• Package Weight: 0.8600 kg
• Warranty: 2 Years
