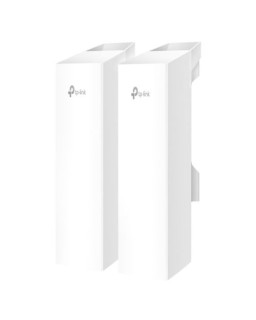

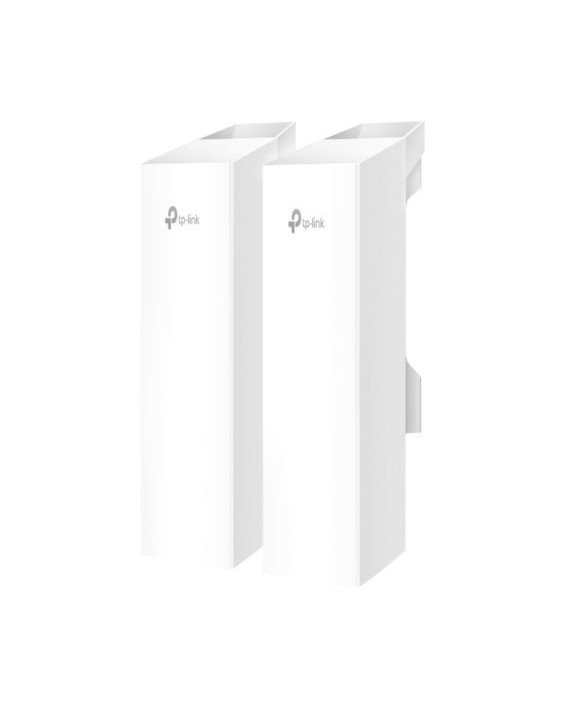

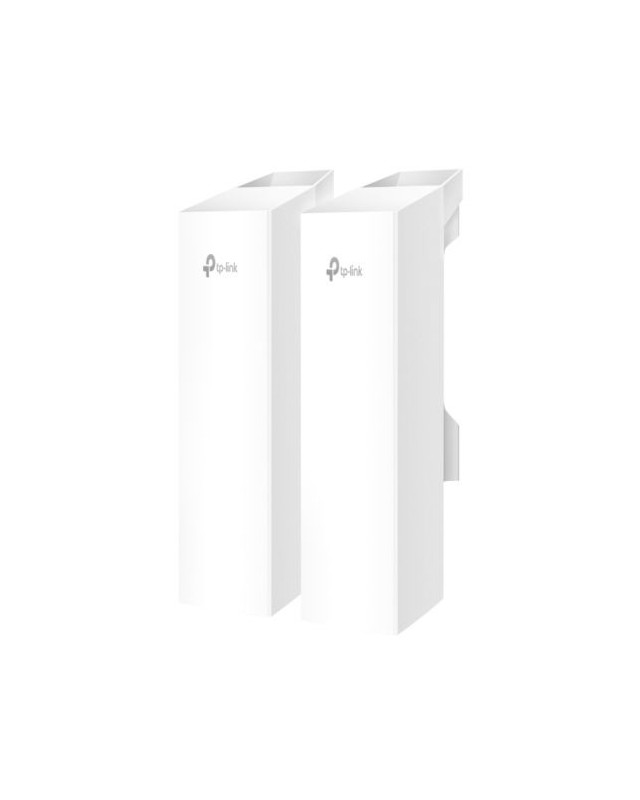

TP-LINK (EAP211-BRIDGE KIT) Omada Wireless Bridge 5GHz 867Mbps Indoor/Outdoor Access Point, Up to 1km

Omada Wireless Bridge 5 GHz 867 Mbps Indoor/Outdoor Access Point

• 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.
• Ideal for long-range wireless transmission up to 1 km.
• Auto-pairing and agile LEDs for efficient deployment.
• 3× Gigabit Ethernet ports for more high-speed IP camera connections.
• Supports Omada SDN for remote and centralized management.
• IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.
• Supports Passive PoE for flexible deployment (adapter included).

Description

Specification

• Primary Function: Access Point
• Access Point Mode: Yes (Access Point Mode)
• Wireless Standard: 802.11ac (Wi-Fi 5)
• Bands: Single Band
• Wi-Fi Rating: AC867
• Max Single Band Wi-Fi Rate: 867 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Interface(s): 3 x Gigabit Ethernet Ports
• Wireless Standards: IEEE 802.11 a/b/g/n/ac
• Antenna(s): "Internal 2x2 Dual-polarized directional MIMO antennas
  5 GHz: 7.0 dBi
  Horizontal: 70°, Vertical: 70°"
• Protection: 6 KV Lightning Protection
• Button(s): Reset Button
• Power Supply: 12V DC / 24V Passive PoE (Passive PoE adapter included.)
• Power Consumption: 11.5W
• Dimensions: 79 x 60 x 224 mm
• Weatherproof: Yes (Weatherproof)
• Frequency: 5 GHz
• EIRP: "<23dBm (5 GHz, band 1/2, EIRP)
  <30dBm (5 GHz band3, EIRP)"
• Wireless Functions: Mesh
  MU-MIMO: 5G 2x2 MU-MIMO DL
  Load Balance
  Seamless Roaming(802.11r)
  Beamforming
  Airtime Fairness
  Multiple SSIDs:8
  Wireless Statistics
  Wireless Schedule
  Reboot Schedule
  RADIUS Accounting
  MAC Authentication
  Static IP/Dynamic IP
• Security: "VLAN
  Access Control
  Rogue AP Detection
  Captive Portal Authentication
  Maximum number of MAC Filter: 4,000
  WPA-Personal/Enterprise, WPA2-Personal/Enterprise"
• Wireless Range: Ideal for long-range wireless transmission up to 1 km
• Management: "Omada Ap
  Restore & Backup
  Firmware update via Web
  NTP
  Cloud Access - Requires OC300, OC200 or Omada Software/Cloud-Based Controller
  LED ON/OFF Control
  Management MAC Access Control
  SNMP: v1, v2c, v3
  SSH
  Web-based Management

  Centralized Management:
  Omada Hardware Controller (OC300)
  Omada Hardware Controller (OC200)
  Omada Software Controller
  Omada Cloud-Based Controller"
• Additional Features: See Overview
• Environment: "Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
  Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
  Operating Humidity: 10%–90% non-condensing;
  Storage Humidity: 5%–90% non-condensing"
• Package Contents: EAP211-Bridge KIT
  Passive PoE Adapter
  Power Cord
  Installation Guide
  Mounting Kit
• Package Type: Retail
• Package Weight: 1.3200 kg
• Warranty: 2 Years
