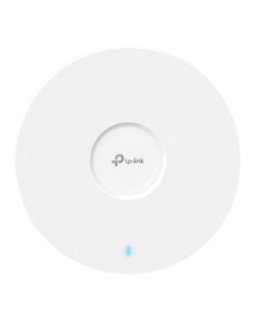

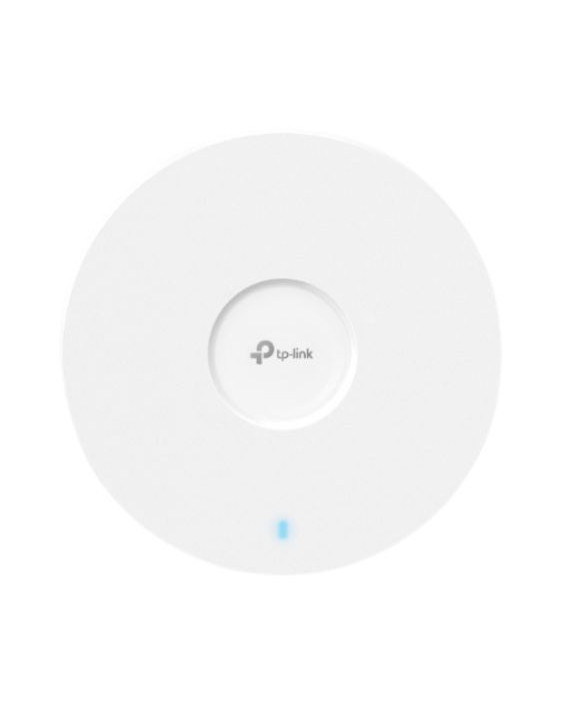

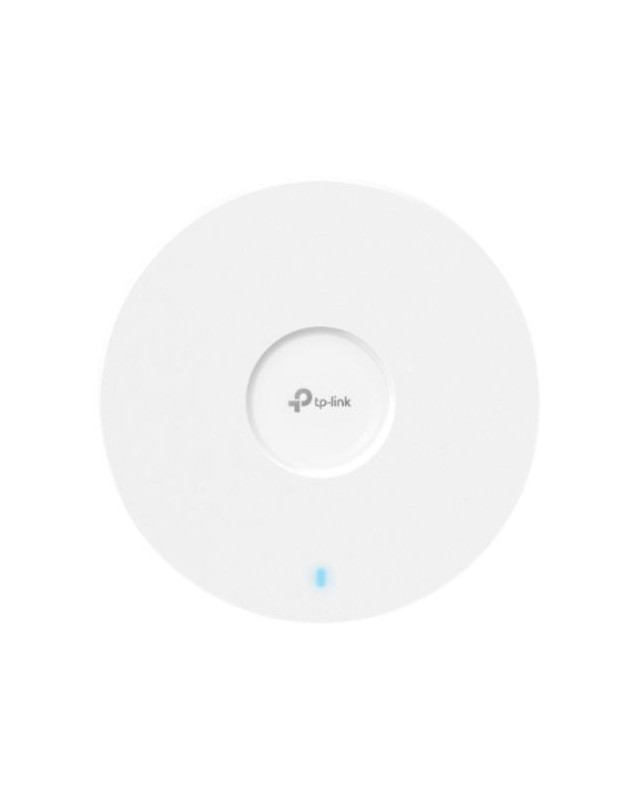

TP-LINK (EAP723) BE3600 Dual Band Ceiling Mount Wi-Fi 7 Access Point, PoE, 2.5GB Port, Omada Mesh, Multi-RUs

BE3600 Ceiling Mount Wi-Fi 7 Access Point

• BE3600 Dual-Band Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).
• 1x 2.5G port unlocks the full potential of Wi-Fi 7.
• 160 MHz bandwidth enables many more simultaneous transmissions.
• Multi-RUs ensure the high performance of your network.
• Advanced Functions: Centralized management, Mesh, and Seamless Roaming

Description

Specification

• Primary Function: Access Point
• Access Point Mode: Yes (Access Point Mode)
• Wireless Standard: 802.11be (Wi-Fi 7)
• Bands: Dual Band
• Wi-Fi Rating: BE3600
• Max Single Band Wi-Fi Rate: 2882 Mbps
• Max Wired Transfer Rate: 2.5 Gbps
• Interface(s): 1 x 2.5G Ethernet Port
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
• Antenna(s): 2.4 GHz: 2x 4.0 dBi
  5 GHz: 2x 5.0 dBi
• Button(s): Reset
• Power Supply: 802.3at PoE or 12V/1.5A DC
  NOTE: Power Adapter is NOT included.
• Power Consumption: 18.6 W (For PoE)
  16.0 W (For DC)
• Dimensions: 160 x 160 x 36.7 mm
• Weatherproof: No
• Frequency: 2.4GHz: Up to 688 Mbps
  5GHz: Up to 2882 Mbps
• EIRP: "< 20 dBm (2.4 GHz, EIRP)
  < 23 dBm (5 GHz, band 1&band 2, EIRP)
  < 28 dBm (5 GHz, band 3, EIRP)"
• Wireless Functions: 4K-QAM
  Seamless Roaming
  MU-MIMO
  EHT160
  Mesh
  OFDMA
  Load Balance
  Band Steering
  Beamforming
  Airtime Fairness
  Multiple SSIDS:16(8 on each band)
  Wireless Schedule
  Reboot Schedule
  QoS(WMM)
  Rate Limit
  Static IP/Dynamic IP
  RADIUS Accounting
  MAC Authentication
• Security: "Captive Portal Authentication
  Access Control
  Maximum number of MAC Filter: 4,000
  Wireless Isolation Between Clients
  VLAN
  Rogue AP Detection
  WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise"
• Management: "Omada App
  Centralized Management (Cloud-Based, Hardware, Software Controller)
  Cloud Access - Requires controller
  Email Alerts
  LED ON/OFF Control
  Management MAC Access Control
  SNMP: v1, v2c, v3
  System Logging Local/Remote Syslog
  Web-based Management"
• Additional Features: Coverage: 1500 ft sq.
  Wireless Client Capacity: 250+
  160 MHz bandwidth
  Multi-RUs

• Environment: Operating Temperature: 0–40 °C (32–104 °F)
  Storage Temperature: -40–70 °C (-40–158 °F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: AP723
  Installation Guide
  Ceiling/Wall Mounting Kit
  Note: Power Adapter is NOT included.
• Package Type: Retail
• Package Weight: 0.7500 kg
• Warranty: Limited Lifetime
