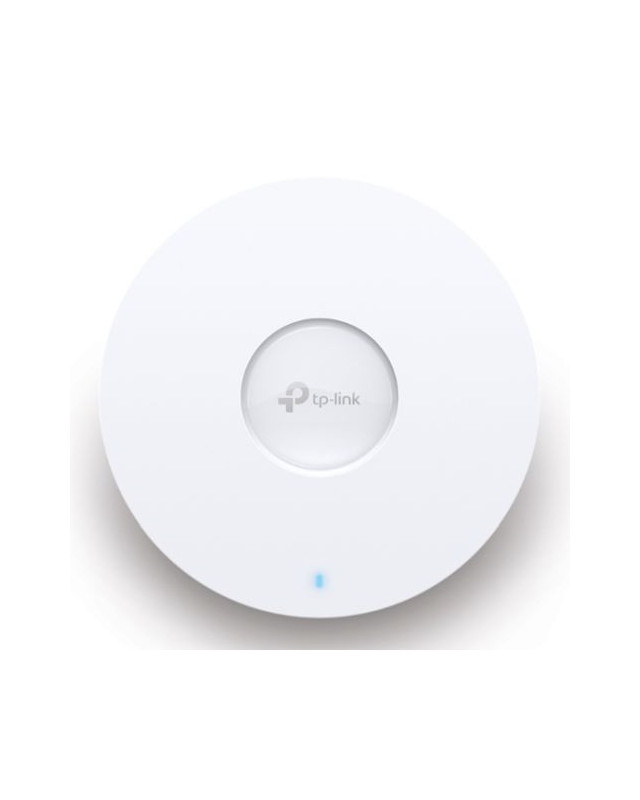

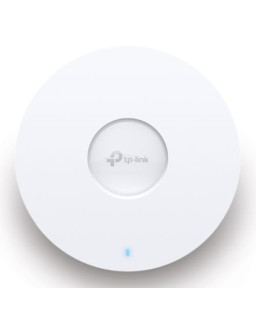

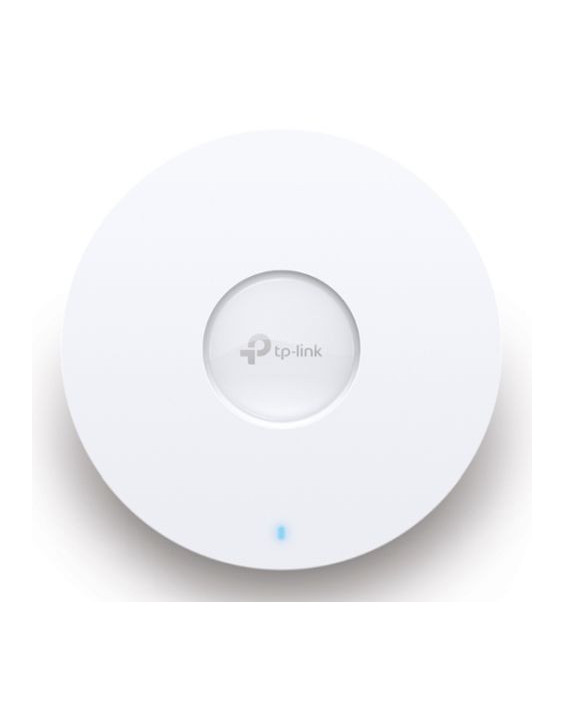

TP-LINK (EAP653 UR) AX3000 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE+, Omada Mesh, Ultra Slim Design

AX3000 Ceiling Mount WiFi 6 Access Point

• Ultra-fast WiFi 6 speeds: 2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz†
• Ultra-range wireless coverage by more antennas with higher transmit power
• Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc‡
• Advanced Features: Omada Mesh, Seamless Roaming, etc§
• PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
• Ultra-Slim Design: Φ6.3 in x 1.3 in elegant design brings more agility
• Integrates with the Omada SDN platform for centralized management

Description

Specification

• Primary Function: Access Point
• Access Point Mode: Yes (Access Point Mode)
• Wireless Standard: 802.11ax (Wi-Fi 6/6E)
• Bands: Dual Band
• Wi-Fi Rating: AX3000
• Max Single Band Wi-Fi Rate: 2402 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Interface(s): 1 x Gigabit PoE+ Port
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Antenna(s): Internal Omni:
  2.4 GHz: 2x 5 dBi
  5 GHz: 3x 5 dBi
• Button(s): Reset
• Power Supply: 802.3at PoE
  12V DC / 1.5 A (Power Adapter IS NOT included)
  48V Passive PoE
• Power Consumption: 14.2 W
• Dimensions: 160 x 160 x 33.6 mm
• Weatherproof: No
• Frequency: 5 GHz: Up to 2402 Mbps
  2.4 GHz: Up to 574 Mbps
• EIRP: "<20 dBm(2.4 GHz, EIRP)
  <23 dBm(5 GHz, Band1 & Band2, EIRP)
  <29 dBm(5 GHz, Band3, EIRP)"
• Wireless Functions: "1024-QAM
  4x Longer OFDM Symbol
  OFDMA
  Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  Enable/Disable Wireless Radio
  Automatic Channel Assignment
  Transmit Power Control (Adjust Transmit Power on dBm)
  QoS(WMM)
  MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL)
  HE160 (160 MHz Bandwidth)"
• .: Seamless Roaming(802.11k/v/r)
  Omada Mesh
  Band Steering
  Load Balance
  Airtime Fairness
  Beamforming
  Rate Limit
  Reboot Schedule
  Wireless Schedule
  Wireless Statistics based on SSID/AP/Client
• Security: "Captive Portal Authentication
  Access Control
  Wireless Mac Address Filtering
  Wireless Isolation Between Clients
  SSID to VLAN Mapping
  Rogue AP Detection
  802.1X Support
  WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise"
• Wireless Range: Ultra-range wireless coverage
• Management: "Omada App
  Centralized Management
  Cloud Access
  Email Alerts
  LED ON/OFF Control
  Management MAC Access Control
  SNMP v1, v2c, v3
  Local/Remote Syslog
  SSH
  HTTP/HTTPS
  L3 Management
  Multi-site Management
  Management VLAN
  Zero-Touch Provisioning"
• Additional Features: See Overview
• Environment: Operating Temperature: 0–40 °C (32–104 °F)
  Storage Temperature: -40–70 °C (-40–158 °F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: "EAP653 UR
  Ceiling/Wall Mounting Kit
  Installation Guide

  Note: DC adapter is not included in the package, and is sold separately."
• Package Type: Retail
• Package Weight: 1.7400 kg
• Warranty: Limited Lifetime
