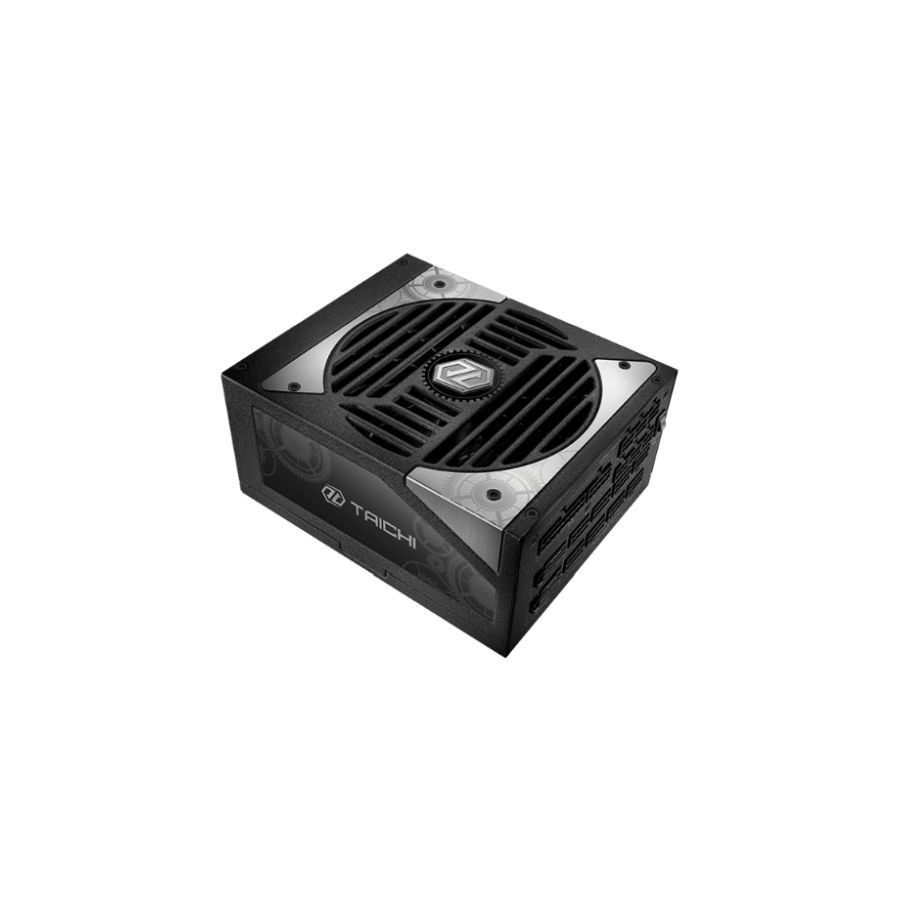

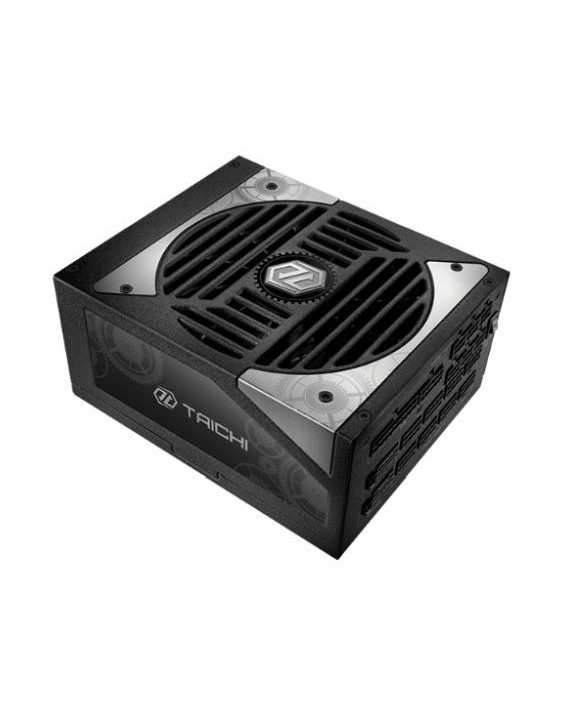

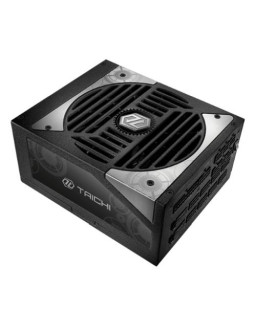

Asrock 1650W Taichi TC-1650T PSU, Fully Modular, 80+ Titanium, Cybenetics Titanium & Lambda A+, ATX 3.1, PCIe 5.1
90-UXT165-TFGAAB
Asrock Taichi Fully Modular, 80+ Titanium PSU
- 80 PLUS® TITANIUM Certified
- Cybenetics TITANIUM and LAMBDA A+ Certified
- ATX3.1 & PCIe5.1 Ready
- Fully Modular Cable Design
- Native 12V-2x6 Connector Dual Color Design with TempGuard
- 100% Highly Reliable Japanese Capacitors
- 135mm Striped Axial FDB Fan
- iCool Intelligent Fan Control Mode
- 5V BOOST Mode
- Remarkable 10-Year Warranty
Be Ready For ATX 3.1 & PCIe 5.1
The ASRock TAICHI series power supply supports both current and future standards, fully compliant with ATX12V V3.1 and PCIe Gen 5.1. Ideal for both current systems and future builds, this power supplies can handle up to 235% power excursion and respond swiftly to power spikes, ensuring reliable, safe power for your components.
Native PCIe 12V-2x6 Cable - Dual Colour Design
With ASRock Classic Green connectors, users can easily see if the connector has been plugged properly.
+5V BOOST Mode - Voltage Compensation Mechanism
When this switch is enabled, it boosts the +5V voltage to maintain optimal performance.
If no voltage drop occurs, the PSU will regulate the +5V rail to approximately +5.15V, ensuring consistent power delivery.
iCOOL Intelligent Fan Control Mode
iCOOL Mode ON: The power supply runs more efficiently. The fan stays off during low to medium loads, reducing noise and improving energy efficiency. The fan only activates when the load or temperature increases.
iCOOL Mode OFF: The fan runs continuously, regardless of load. This may increase noise slightly but provides consistent cooling and better performance under heavy loads.
80 PLUS & Cybenetics Titanium Certified
The TAICHI Series Power Supply guarantees unmatched power efficiency and peak performance, delivering exceptional reliability for the most demanding systems.
Cybenetics LAMBDA A+
The Taichi series power supply operates at less than 20 dB of noise on average, earning the prestigious Cybenetics Lambda A+ certification. This recognition underscores the Taichi series' outstanding noise control performance, making it an exceptional choice for users seeking ultra-quiet operation.
135mm Fluid Dynamic Bearing Fan
The fluid seal design and the herringbone structure provides an extremely long lifespan and noise minimization.
Infineon CoolMOS + SiC SBD
The industrial-leading components deliver high efficiency and reliability.
Japanese Capacitors
105 °C Japanese-made Capacitor and Solid Capacitor, makes prolonged life span possible.
Safety First with ASRock
Full suite of protections to keep all components safe during normal to extreme power levels.
ASRock offers an outstanding 10 –Year warranty, guaranteeing long term reliable and peace of mind operation.
Description
Specification
- Form Factor: ATX
- Series: Asrock Taichi
- Wattage: 1650 W
- Modular: Fully Modular
- Compatibility: ATX12V v3.1
PCIe 5.1 - Wattage Range: 1300W +
- Connectors: 1 x Motherboard cable (24pin)
2 x EPS 12V CPU (4+4pin)
2 x PCIe5.1 (12+4pin) Dual Colour
8 x PCIe (6+2pin)
6 x 4-pin Peripheral
12 x SATA 5-pin - Fan Type: 135mm Striped Axial FDB Fan
iCool Intelligent Fan Control Mode (Switch) - Fan Bearing: Fluid / Hydraulic Bearing
- Noise: Cybenetics Lambda A+ certification
Operates at less than 20dB of noise on average - Max Certification: Titanium
- Efficiency: 80+ Titanium
Cybenetics Titanium - MTBF: "100,000 hours"
- Protection: "OCP, SCP, OVP, UVP, OTP, OPP"
- Additional Features: Native 12V-2x6 Connector Dual Color Design with TempGuard
100% Highly Reliable Japanese Capacitors
5V BOOST Mode - Weight/Dimensions: (LxWxH) 180 x 150 x 86 mm
- Package Weight: 4.6000 kg
- Warranty: 10 Years
- ATX 3.1/3.0: ATX 3.1
90-UXT165-TFGAAB
