Native 12V-2x6 Connector Dual Color Design with TempGuard
100% Highly Reliable Japanese Capacitors
135mm Striped Axial FDB Fan
iCool Intelligent Fan Control Mode
5V BOOST Mode
Remarkable 10-Year Warranty
Be Ready For ATX 3.1 & PCIe 5.1

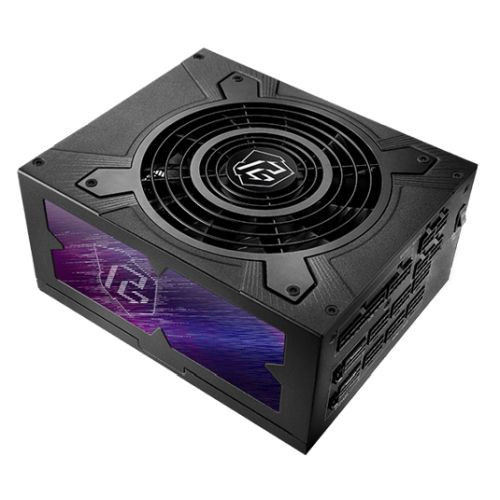

The ASRock Phantom Gaming series power supply supports both current and future standards, fully compliant with ATX12V V3.1 and PCIe Gen 5.1. Ideal for both current systems and future builds, this power supplies can handle up to 220% power excursion and respond swiftly to power spikes, ensuring reliable, safe power for your components.
Native PCIe 12V-2x6 Cable
Dual Colour Design - With ASRock Classic Green connectors, users can easily see if the connector has been plugged properly.
Cable Over-Temperature Protection - The NTC sensor at the VGA connector monitors the temperature and sends signal the PSU to ensure safe operation.
+5V BOOST Mode - Voltage Compensation Mechanism
When this switch is enabled, it boosts the +5V voltage to maintain optimal performance.
If no voltage drop occurs, the PSU will regulate the +5V rail to approximately +5.15V, ensuring consistent power delivery.
iCOOL Intelligent Fan Control Mode
iCOOL Mode ON: The power supply runs more efficiently. The fan stays off during low to medium loads, reducing noise and improving energy efficiency. The fan only activates when the load or temperature increases.
iCOOL Mode OFF: The fan runs continuously, regardless of load. This may increase noise slightly but provides consistent cooling and better performance under heavy loads.
80 PLUS & Cybenetics Certified
Designed for gaming enthusiasts, the Phantom Gaming series power supply unit with 80 PLUS Gold efficiency certification and Cybenetics Platinum & Gold ratings, along with LAMBDA A acoustic certification, it guarantees superior energy efficiency and low noise operation.
Cybenetics Lambda A
The Phantom Gaming series power earning the prestigious Cybenetics Lambda A certification. This recognition underscores the Phantom Gaming series' outstanding noise control performance, making it an exceptional choice for users seeking ultra-quiet operation.
135mm Fluid Dynamic Bearing Fan
The fluid seal design and the herringbone structure provides an extremely long lifespan and noise minimization.
Infineon CoolMOS
The industrial-leading components deliver high efficiency and reliability.
Japanese Capacitors
105 °C Japanese-made Capacitor and Solid Capacitor, makes prolonged life span possible.
Safety First with ASRock
Full suite of protections to keep all components safe during normal to extreme power levels.
ASRock offers an outstanding 10 –Year warranty, guaranteeing long term reliable and peace of mind operation.
Description
Specification
Form Factor: ATX
Series: Asrock Phantom Gaming
Wattage: 1300 W
Modular: Fully Modular
Compatibility: ATX12V v3.1 PCIe 5.1
Wattage Range: 1300W +
Connectors: 1 x Motherboard cable (24pin) 2 x EPS 12V CPU (4+4pin) 2 x PCIe5.1 (12+4pin) Dual Colour 6 x PCIe (6+2pin) 3 x 4-pin Peripheral 9 x SATA 5-pin
Fan Type: 135mm Striped Axial FDB Fan iCool Intelligent Fan Control Mode (Switch)
Fan Bearing: Fluid / Hydraulic Bearing
Noise: Cybenetics Lambda A certification
Max Certification: Platinum
Efficiency: 80+ Gold Cybenetics Platinum
MTBF: "100,000 hours"
Protection: "OCP, SCP, OVP, UVP, OTP, OPP"
Additional Features: Native 12V-2x6 Connector Dual Color Design with TempGuard 100% Highly Reliable Japanese Capacitors 5V BOOST function
Weight/Dimensions: (LxWxH) 180 x 150 x 86 mm
Package Weight: 4.2000 kg
Warranty: 10 Years
ATX 3.1/3.0: ATX 3.1
90-UXP130-GFGAAB
