Kingston ValueRAM 16GB, DDR5, 5600MHz (PC5-44800), CL46, 1.1V, SODIMM Memory
search
  • Kingston ValueRAM 16GB, DDR5, 5600MHz (PC5-44800), CL46, 1.1V, SODIMM Memory

Kingston ValueRAM 16GB, DDR5, 5600MHz (PC5-44800), CL46, 1.1V, SODIMM Memory

KVR56S46BS8-16
KVR56S46BS8-16

Order now and receive it...

✔ between 10 Jun and 11 Jun   with  Standard Delivery - Free over £65

✔ tomorrow   with  Express Delivery - Order Before 1PM Mon-Fri

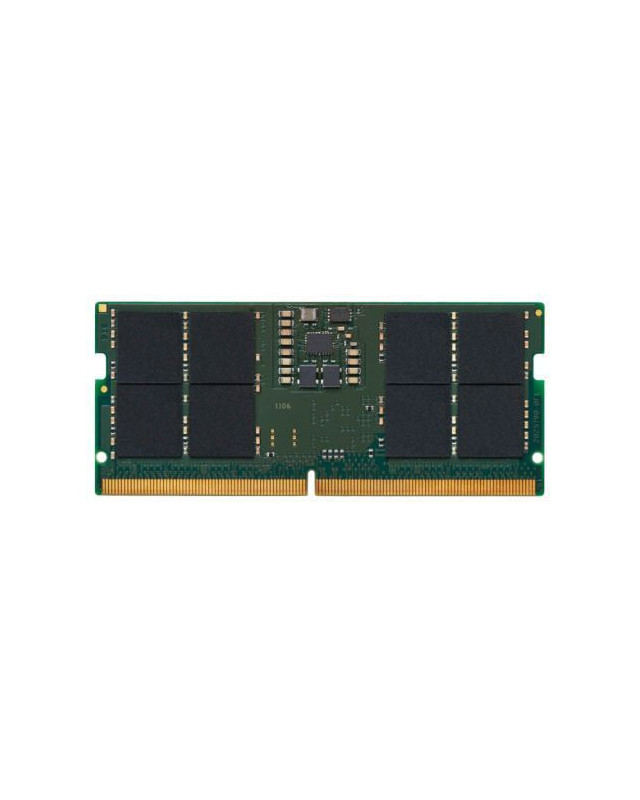

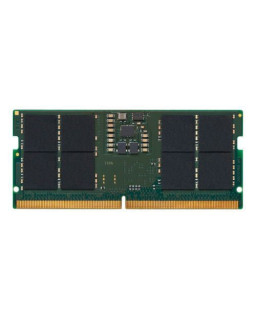

ValueRAM's KVR56S46BS8-16 is a 2G x 64-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers.

  • Power Supply: VDD = 1.1V Typical
  • VDDQ = 1.1V Typical
  • VPP = 1.8V Typical
  • VDDSPD = 1.8V to 2.0V
  • On-Die ECC
  • PCB: Height 1.18” (30.00mm)
  • RoHS Compliant and Halogen-Free



Description

Specification

  • Series: Kingston ValueRAM
  • DDR Type: DDR5 SODIMM
  • Size: 1 x 16GB
  • Individual Module Size: 16GB
  • Speed: 5600 MHz
  • Compliance: PC5-44800
  • Pins: 262-pin
  • CAS Latency: CL46
  • Data Integrity Check: Non-ECC
  • Voltage: 1.1V
  • Additional Information: See Overview
  • Package Type: Blister Pack
  • Package Weight: 0.0200 kg
  • Warranty: Lifetime
KVR56S46BS8-16
