Asrock Intel Arc A770 Challenger SE 16GB OC, 16GB DDR6, HDMI, 3 DP, 2150MHz Clock, LED Lighting, Overclocked
90-GA57ZZ-00UANF

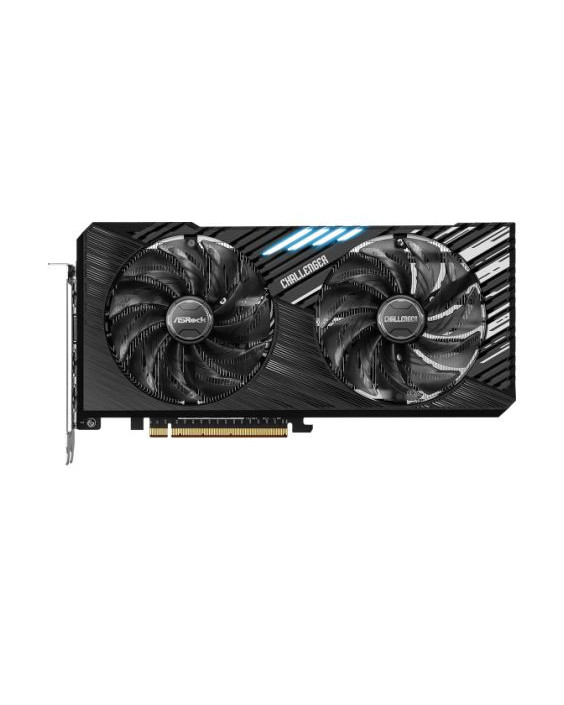

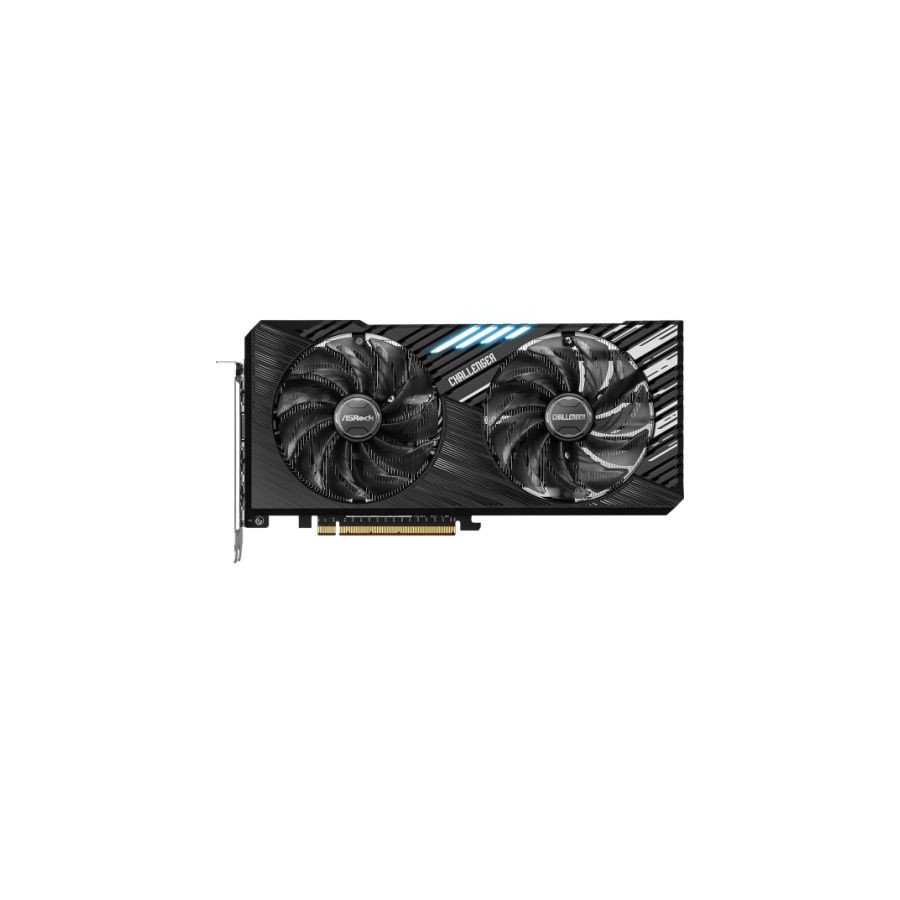

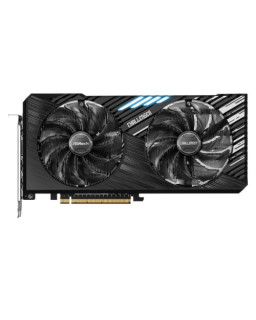

Intel Arc A770 Challenger SE 16GB OC
- A770 CL SE 16GO
- GPU Clock : 2150 MHz
- Memory Clock: 16 Gbps
- Key Specification
- Intel® Arc™ A770 Graphics
- 16GB 256-bit GDDR6
- Intel® Xe HPG Microarchitecture
- Intel® Xe Super Sampling (XeSS)
- DirectX® 12 Ultimate
- 2 x 8-pin Power Connectors
- 3 x DisplayPort™ 2.0, 1 x HDMI™ 2.0b
- Dual Fan Design
- Stylish Metal Backplate
- Striped Axial Fan
- Ultra-fit Heatpipe
- 0dB Silent Cooling
- Super Alloy Graphics Card
Dual Fan Design
Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.
Stylish Metal Backplate
With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.
Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
8K Resolution Support Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
SPS (Smart Power Stage)
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the GPU with enhanced performance and OC capability.
Premium 100A Power Choke
Compared to traditional chokes, ASRock’s premium 100A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
Description
Specification
- Chipset Manufacturer: Intel
- Interface: PCI Express 4.0
- Graphics Chipset: Intel Arc A770
- Memory Size: 16GB
- Memory Type: DDR6
- Memory Interface: 256-bit
- Core Clock: Base Clock: 2150 MHz
- Memory Clock: 16 Gbps
- Intel XMX Engines: 512
- Outputs: 1 x HDMI 2.0b
3 x DisplayPort 2.0 up to UHBR 10 - HDCP Support: Yes
- Resolution: Digital Max Resolution: 7680 x 4320
- DirectX Support: DirectX 12 Ultimate
- Max Display Support: 4
- Cooling: Dual Fan Design
Striped Axial Fan
Ultra-fit Heatpipe
0dB Silent Cooling - PSU Requirements: 650W or greater recommended
- Connectors Required: 2 x 8-pin power
- Additional Features: See Overview
- Dimensions: 267 x 130 x 48 mm
- Accessories: 1 x Quick Installation Guide
- Package Type: Retail
- Lighting Effects: Yes
- HDMI: Yes (HDMI)
- DisplayPort: Yes (DisplayPort)
- Package Weight: 1.7800 kg
- Warranty: 2 Year Replacement Warranty
90-GA57ZZ-00UANF
