TP-LINK

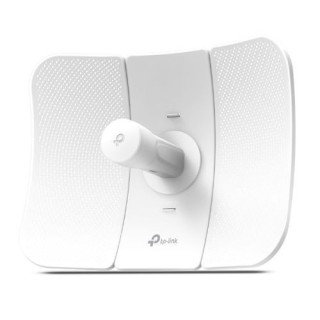

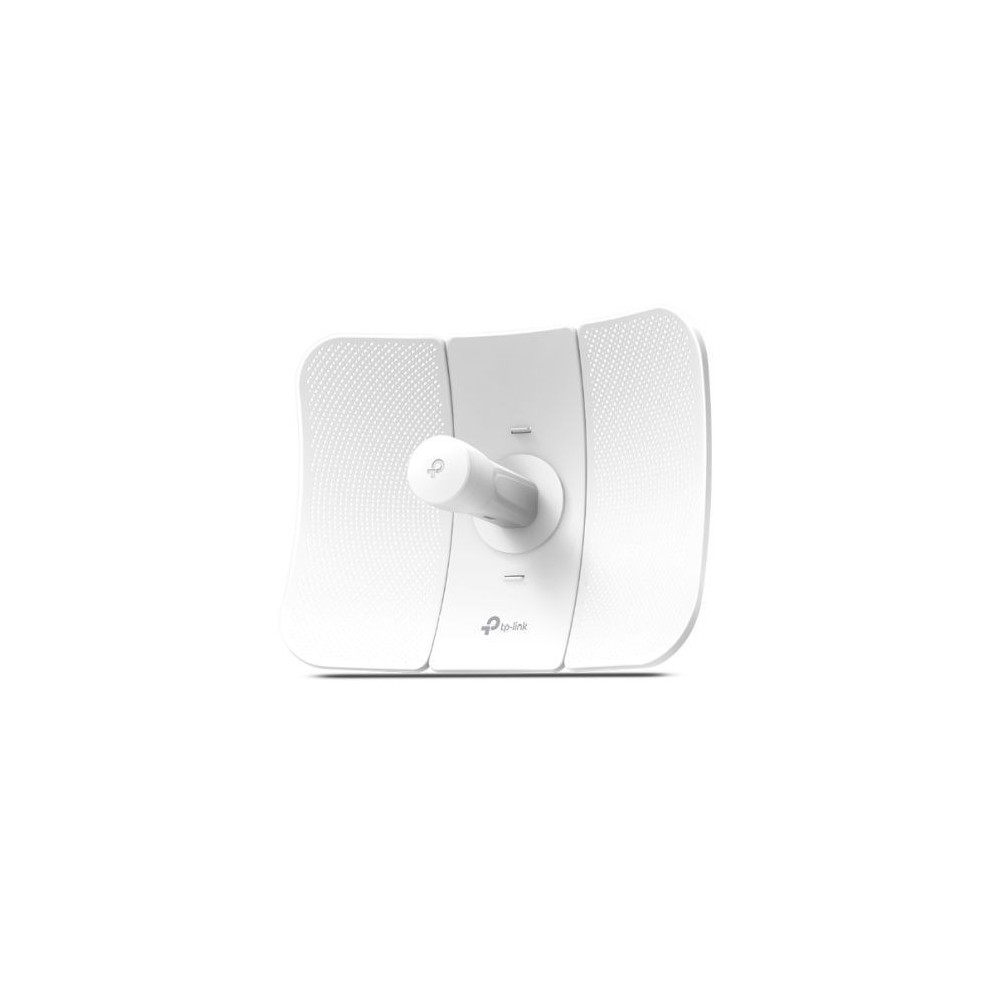

TP-LINK (CPE710) 5GHz AC 867Mbps 23DBI 23dBi Outdoor CPE Wireless Access Point, Passive PoE, Weatherproof

CPE710
CPE710
£71.49
VAT included
Out-of-Stock


5GHz AC 867Mbps 23dBi Outdoor CPE

  • 802.11ac for up to 867Mbps on 5GHz wireless data rate
  • 23dBi high-gain directional 2×2 MIMO ideal for long-distance application
  • Excellent beam directivity improved latency and noise cancellation
  • Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
  • Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
  • Pharos Control gives administrators a free centralized management system
  • Passive PoE supports to allow flexible deployment and convenient installation



Blazing Speed without Wait
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps 3× faster than 802.11n Wi-Fi.




Professional-Standard 23 dBi Directional Antenna for Long-range Wireless Transmission
With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector the CPE710 provides excellent beam directivity improved latency and noise immunity. Professional performance coupled with user-friendly design makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.




Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping logistics and retail.




Pharos Control – Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software helping users easily manage all devices in their network from a single PC. Functions include device discovery status monitoring firmware upgrading and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.





  • Primary Function: Access Point
  • Access Point Mode: Yes (Access Point Mode)
  • Dual Band: No
  • Max Wireless Transfer Rate: 867 Mbps
  • Max Wired Transfer Rate: 10/100/1000 Mbps
  • Interface(s): 1 x 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
  • Wireless Standards: IEEE 802.11a/n/ac
  • Antenna: 23 dBi
    Beamwidth: 9° (Azimuth)/7° (Elevation)
  • Protection: 15 KV ESD Protection
    6 KV Lightning Protection
  • Button(s): Reset Button
  • Power Supply: "Passive Power over Ethernet via LAN (+45pins; -78pins)
    Voltage range: 16-27V DC"
  • Dimensions (W x D x H): 85.8 x 43.9 x 29.7 mm
  • Weatherproof: Yes (Weatherproof)
  • Frequency: 5.15~5.85 GHz
  • Wireless Security: "SPI Firewall/ Ping Forbidden/ DoS Protection

    WPA/WPA2 WPA-PSK/WPA2-PSK (AES/TKIP) Encryption"
  • Management: Discovery and Remote Management (Pharos app)
    HTTP/ HTTPS Web-based management
    System log
    SNMP Agent(v2c)
    Ping Watch Dog
    Dynamic DDNS
    SSH Server
  • Advanced Functions: See Overview
  • Environment (°C): Operating Temperature: -40C~70C (-40F~158F)
    Storage Temperature: -40C~70C (-40F~158F)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~95% non-condensing
  • Package Contents: Outdoor Wireless CPE
    24V 0.5A Passive PoE Adapter
    Pole Mounting Kits
    AC Power Cord
    Installation Guide
  • Package Type: Retail
  • Package Weight: 1.7300 kg
  • Warranty: Limited Lifetime
