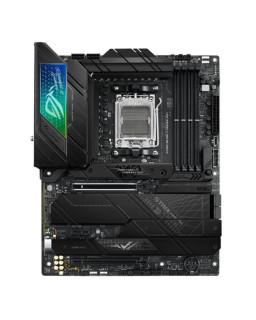

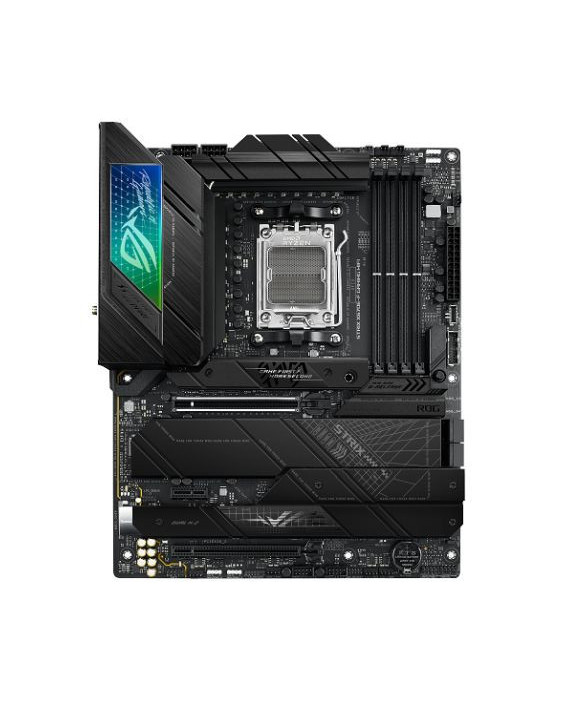

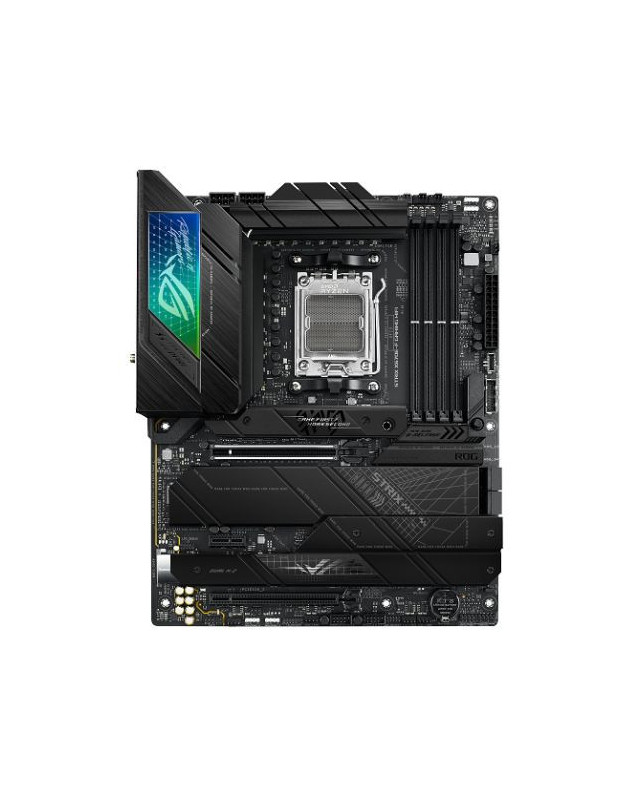

The ROG Strix X670E-F Gaming WiFi is the stealthy alter ego of the Strix X670E-A. A substantial power buff relays its inner demon, giving exclusive ROG overclocking utilities even more headroom to unleash the potential of AMD Ryzen™ 7000 Series processors.
Black PCB and dark metallic heatsinks aesthetically match a wider variety of system hardware and build themes, while a dash of customizable color on its shroud subtly announces an ROG presence in your AM5 build.
Power Stages - 16 + 2 teamed power solution rated for 90A per stage
Overclocking Technologies - Dynamic clocking to simultaneously maximize Ryzen gaming and compute performance
AI Cooling II - AI Cooling II uniquely balances noise and thermals for your system with a single click
PCIe 5.0 - An x16 slot and two on-board M.2 slots are PCIe Gen 5-ready
DDR5 - 6400 MT/s+, AMD EXPO, DRAM IC profiles, and AEMP
DIY Friendly - Easy installation for GPUs and SSDs, plus simple BIOS resets and updates
WiFi 6E - Faster-than-Gigabit WiFi that unlocks access to the low-interference 6 GHz band
All-Round Performance
Robust power delivery, innovative overclocking tools, and comprehensive cooling controls are core fundamentals of the ROG Strix X670E-F, giving you everything necessary to cruise and flex with AMD Ryzen™ 7000 in your build.
Leading Connectivity
The ROG Strix X670E-F Gaming WiFi delivers a plethora of internal and external connectivity for low-latency networking and ultrafast data transfers. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.
Play In Style
A black PCB and heatsinks match most hardware, and customizable RGB lighting furthers its flexibility. Pair the ROG Strix X670E-F with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.
Software Utilities
ROG-exclusive software delivers intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want.
*Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI 1 x DisplayPort
PCI/PCI Express: 1 x PCIe 5.0 x16 (supports x16 mode) 1 x PCIe 4.0 x16 (supports x4 mode) 1 x PCIe 3.0 x1
Storage: 4 x SATA III 1 x M.2 (2242/2260/2280) - PCIe 1 x M.2 (2242/2260/2280) - PCIe 1 x M.2 (2242/2260/2280/22110) - PCIe 1 x M.2 (2242/2260/2280) - PCIe
RAID: AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
Wireless: Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2
USB Ports Supported: 1 x USB 3.2 Gen2x2 Type-C (at back) 2 x USB 3.2 Gen2 Type-C (at back) 7 x USB 3.2 Gen2 Type-A (at back) 2 x USB 3.2 Gen1 (at mid-board) 6 x USB 2.0 (at mid-board) 1 x Front USB 3.2 Gen2x2 Type-C connector
Back Panel I/O Ports: "1 x USB 3.2 Gen2x2 (Type-C) 9 x USB 3.2 Gen2 (7 Type-A, 2 Type-C) 2 x USB 2.0 1 x DisplayPort 1 x HDMI 1 x Wi-Fi Module 1 x Intel I225-V 2.5Gb Ethernet 5 x Gold-plated audio jacks 1 x Optical S/PDIF out 1 x BIOS FlashBack button 1 x Clear CMOS button "
Internal I/O Connectors: 1 x 4-pin CPU Fan 1 x 4-pin CPU OPT Fan 1 x 4-pin AIO Pump 5 x 4-pin Chassis Fan 1 x 24-pin Main 2 x 8-pin +12V 4 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 3.2 Gen2x2 connector (Type-C) 1 x USB 3.2 Gen1 2 x USB 2.0 3 x Addressable Gen2
.: 1 x Aura RGB 1 x CPU Over Voltage jumper 1 x Front Panel Audio (AAFP) 1 x 20-3 pin System Panel 1 x Thermal Sensor 1 x Thunderbolt
Accessories: 2 x SATA 6Gb/s cables 1 x Thermal pad for M.2 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch package for M.2 backplate 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 2 x Rubber Packages for M.2 1 x Rubber Package for M.2 backplate 1 x User guide
Additional Features: See Overview
Package Type: Retail
Package Weight: 2.6000 kg
Warranty: 3 Years
M.2 Slot(s): Yes (M.2)
No. LAN Ports: 1 x LAN
Max LAN Speed: 2.5GB LAN
Wi-Fi: Yes (Wi-Fi)
RGB Lighting: Out of the box RGB lighting
90MB1BA0-M0EAY0
