Comfortably compact

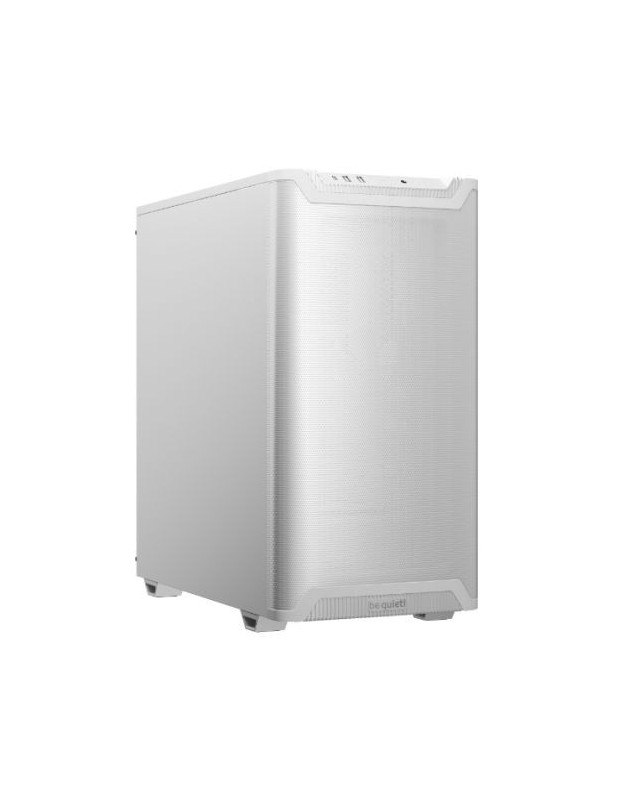

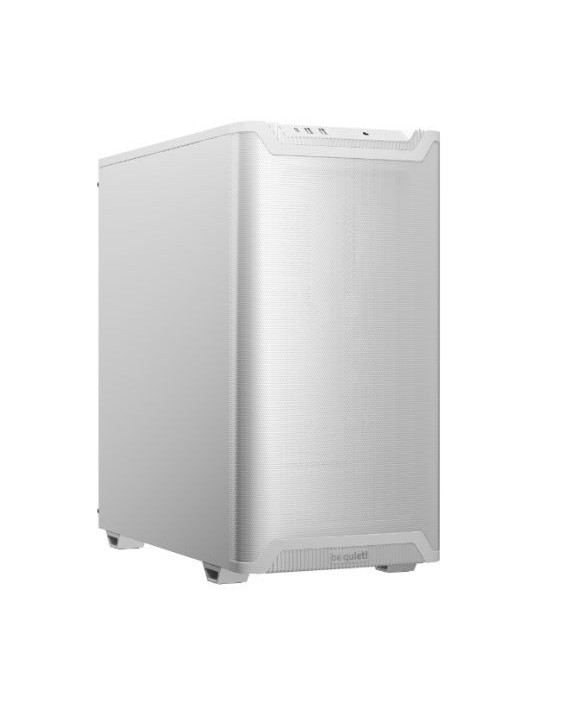

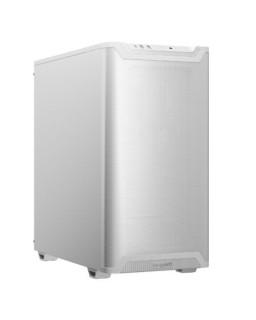

Pure Base 501 Airflow White is a traditional, timeless and versatile be quiet! ATX case with compact dimensions.
High airflow intake front panel and top cover for maximum performance
2 preinstalled Pure Wings 3 140mm PWM fans for extraordinary air pressure
Generous space for high-end graphics cards and large coolers, despite compact footprint
Optional vertical graphics card installation
Water cooling ready for radiators up to 360mm
USB 3.2 Gen. 2 Type C for best connectivity
Comfortable cable management with clever cable routing design
Reduced To The Max
Classic appearance
Without any distractions, Pure Base 501 Airflow White is reduced to excel at its core functions and is aimed at users that appreciate an unagitated presentation.
Perfect Case Fan
Fan blades optimized for high airflow
With optimization for maximum airflow, Pure Wings 3 140mm PWM is the perfect choice for Pure Base 501 Airflow White. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 140mm PWM provides the performance that is needed for demanding configurations.
More Than Meets The Eye
Generous space for high-end hardware
Despite its compact dimensions, Pure Base 501 Airflow White offers enough space for high-end graphics cards and large coolers. Triple fans or a radiator up to 360mm can be installed easily at the front, while the top area provides space for up to 2 fans or a radiator up to 240mm.
Way up!
With rotatable PCIe slots
Why not try something else with your GPU? The PCIe slots of the Pure Base 501 Airflow White can be rotated 90° for an upright installation of wide high-end graphics cards. The spacing is perfect for the optional be quiet! Riser Cable, whose foam base provides excellent anti-sag support for graphics cards in vertical orientation.
Inventory Management
With smart cable routing options
As a compact PC case, Pure Base 501 Airflow White optimally uses the offered space. Thanks to cleverly integrated cable routing options, it makes cable management a breeze.
Connect With Me
State-of-the-art technology for your system
A USB 3.2 Gen. 2 Type C connector and 2 Type A ports on the front I/O port for fast and easy connectivity.Form FactorATXPower Supply WattageNo PSUMotherboard SupportATX, Micro ATX, Mini ITXConnectors / Controls1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Type-A
Mic + AudioDrive Bays2 x 3.5"
5 x 2.5"Expansion Slots7 x Expansion SlotsCooling SystemIncluded:
Front: 1 x Pure Wings 3 140mm PWM Fan
Rear: 1 x Pure Wings 3 140mm PWM Fan
Fan Mounts:
Top: 2 x 140 / 2 x 120 mm
Front: 2 x 140 / 3 x 120 mm
Side: None
Rear: 1 x 140 / 1 x 120 mm
Bottom: None
PSU shroud: None
Radiator Support:
Front: Up to 360 mm
Top: Up to 240 mm
Side: None
Rear: Up to 140 mm
Bottom: NoneColourWhiteMaterialTop Cover: Steel
Front Panel: ABS
Side Panel: Steel
Stands: ABSCompatibilityGPU Max Height:
368 mm
CPU Cooler Max Height:
178 mm
PSU Max Length:
180 mm
Weight/Dimensions6.8 kg
Excl. stands (LxWxH): 450 x 231 x 449 mm
Incl. stands (LxWxH): 450 x 231 x 463 mmAdditional FeaturesCompact design
High airflow intake front panel and top cover
Optional vertical graphics card installation
Comfortable cable management with clever cable routing
See Overview for more details
AccessoriesScrew set (Drives/Motherboard)
1 x Additional standoff
12 x Cable tiesPackage WeightTo be confirmedWarranty3 Years
