• Out-of-Stock
FRACTAL

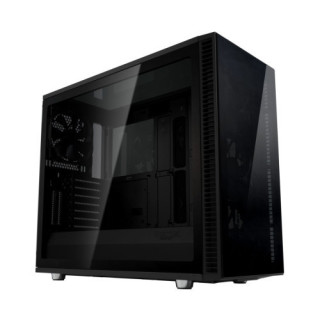

Fractal Design Define S2 Vision Blackout Gaming Case w/ Dark Tint Glass Windows, E-ATX, 4 PWM Fans, USB-C

FD-CA-DEF-S2V-BKO-TGD
FD-CA-DEF-S2V-BKO-TGD
£187.63
VAT included
Out-of-Stock


The Define S2 Vision was designed with the goal of bringing together beauty and function and with its full tempered glass exterior you’ll experience the radiance of your system from every angle.


  • Full tempered glass exterior with bolt-free tinted TG panels
  • Four Fractal Design Dynamic X2 GP-14 PWM 140 mm fans pre-installed for superior airflow
  • Extensive cooling support with room for up to nine fans 360 mm front and top radiators and 240 mm bottom radiators
  • Swap the TG top panel with the included cooling bracket for triple-fan top cooling support
  • Nexus 9P fan hub controls up to nine PWM devices via your motherboard
  • Full-length power supply shroud assists in hiding excess cables for a clean interior
  • PSU shroud front cover can be removed for larger front radiators or used to mount a pump reservoir or additional SSD
  • Easy-to-clean high-airflow nylon filters with convenient front access
  • USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
  • Vertical 2.5 slot GPU support via Flex VRC-25 vertical PCIE riser (sold separately)
  • Three vibration-damped 3.5” HDD mounts keep drives neatly concealed and interior space free
  • Two SSD brackets included with five possible locations either behind the motherboard or on the PSU shroud






The center of attention

Cooling remains paramount with extensive air and water cooling support four PWM fans and an innovative top panel system that lets you swap tempered glass for additional cooling with the push of a button. The Define S2 Vision also features pre-drilled pump mounts reservoir brackets Nexus 9P fan hub with nine PWM connections optional Flex VRC-25 vertical GPU riser support and of course bolt-free TG side panels.

Whether your system radiates the commanding presence of a monster machine or the subtle reflections of a piece of art the Define S2 Vision is a beautiful sight from every angle.






All glass exterior

Tinted tempered glass offers a beautiful view from every angle unobstructed by bolts or hinges. Even the front fan rails are tastefully concealed.

  • Full tempered glass exterior with bolt-free tinted TG panels
  • USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps





The strong silent type

Four Dynamic X2 PWM fans come preinstalled with silent high-airflow performance and radiator-worthy static pressure.

  • Extensive cooling support with room for up to nine fans 360 mm front and top radiators and 240 mm bottom radiators
  • Vertical 2.5 slot GPU support via Flex VRC-25 vertical PCIE riser (sold separately)





Intelligent open design

Cooling remains paramount with extensive air and water cooling support four PWM fans and an innovative top panel system that lets you swap tempered glass for additional cooling with the push of a button.

  • Four Fractal Design Dynamic X2 GP-14 PWM 140 mm fans pre-installed for superior airflow
  • Swap the TG top panel with the included cooling bracket for triple-fan top cooling support
  • Nexus 9P fan hub controls up to nine PWM devices via your motherboard





Extensive air and water cooling support

With adjustable pump/reservoir brackets and support for 360 mm radiators in both top and front plus 240 mm in the base it’s finally time to make your wildest open-loop cooling ambitions a reality.

  • Full-length power supply shroud assists in hiding excess cables for a clean interior
  • Easy-to-clean high-airflow nylon filters with convenient front access
  • PSU shroud front cover can be removed for larger front radiators or used to mount a pump reservoir or additional SSD





No more clutter

Expert cable routing comes naturally with three stylized enclosures 3-way SATA extension and generous spacing behind the motherboard plate.

  • Three vibration-damped 3.5” HDD mounts keep drives neatly concealed and interior space free
  • Two SSD brackets included with five possible locations either behind the motherboard or on the PSU shroud



  • Form Factor: E-ATX
  • Small Form Factor: No
  • Power Supply Wattage: No PSU
  • Motherboard Support: "E-ATX (up to 285 mm wide) ATX Micro ATX Mini ITX"
  • Window(s): Yes (Window)
  • Connectors / Controls: 1 x USB 3.1 Gen 2 Type-C
    2 x USB 3.0
    2 x USB 2.0
    Audio
  • Drive Bays: 3 x 3.5""/2.5"" Universal drive brackets
    2 x Dedicated 2.5"" drive brackets (5 positions total)
  • Expansion Slots: 7 + 2 vertical expansion slots
  • Cooling System: Included
    Front: 3 x Dynamic X2 GP-14 PWM 140mm fans
    Rear: 1 x Dynamic X2 GP-14 PWM 140mm fan

    Fan Mounts
    Front: 3 x 120 / 140 mm
    Top: 3 x 120 / 140 mm (w/ cooling bracket installed)
    Rear: 1 x 120 / 140 mm
    Bottom: 2 x 120 / 140 mm
  • .:
    Water Cooling options:
    Front: Up to 360 / 280 mm radiator
    Top: Up to 360 / 280 mm radiator (w/ cooling bracket installed)
    Rear: 120 mm radiator
    Bottom: Up to 140 / 240 mm radiator
  • Colour: Black
  • Material: Left side panel: Dark tint tempered glass
    Right side panel: Dark tint tempered glass
    Top: Dark tint tempered glass
  • Compatability: GFX Card:
    440 mm

    Max CPU Cooler:
    185 mm

    PSU:
    300 mm
  • Weight/Dimensions: 12.1 kg
    (LxWxH) 543 x 233 x 465 mm
    w/o feet/protrusions/screws: 535 x 233 x 448 mm
  • Additional Features: See Overview / Video
  • Accessories: Top filter
    Top radiator/fan bracket
    User manual & accessory box
  • Package Weight: 14.3000 kg
  • Warranty: 2 Years
FD-CA-DEF-S2V-BKO-TGD
