FRACTAL

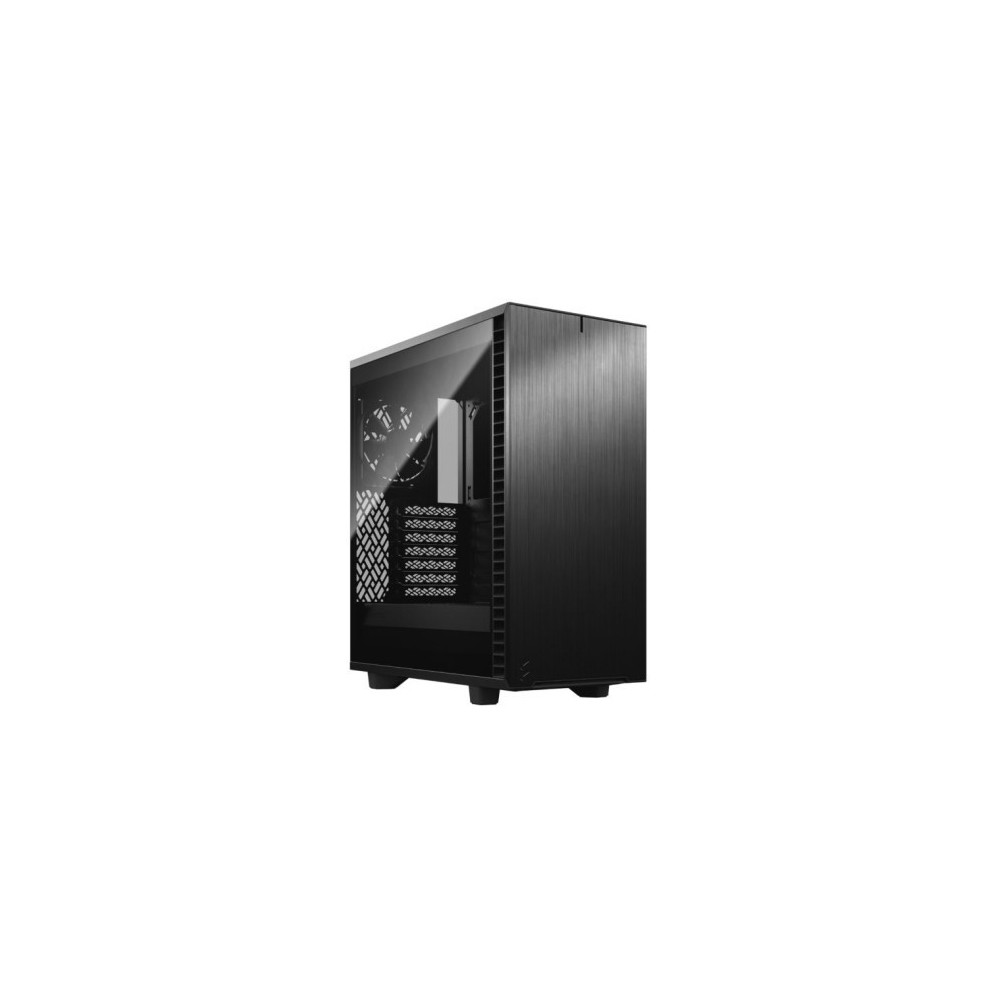

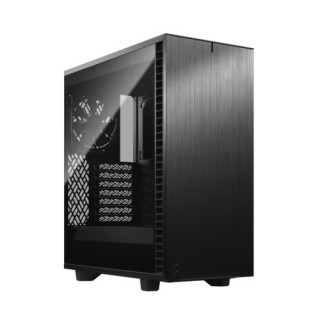

Fractal Design Define 7 Compact (Dark TG) Gaming Case w/ Dark Tint Glass Window, ATX, 2 Fans, Sound Dampening, Ventilated PSU Sh

FD-C-DEF7C-02
FD-C-DEF7C-02
£95.09
VAT included
Out-of-Stock


The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.


  • Compact yet spacious interior accommodates ATX mATX and mITX motherboards
  • Room for GPUs up to 360 mm with a 240 mm radiator in the top or up to 360/280 mm front radiators with GPUs under 305 mm
  • Support for two 2.5”/3.5” drives plus up to four SSDs (two SSD brackets included)
  • Top panel effortlessly swaps from solid steel to filtered ventilation
  • New removable top panel design opens up to fully expose the case interior for effortless installation and cable routing
  • Silence-optimized construction with industrial sound-damped front top and side panels
  • Brushed aluminum front and top-latching side panels offer a clean sophisticated look
  • Install up to 7 x 120 mm or 4 x 140 mm fans (1 x 120 mm and 1 x 140 mm Dynamic X2 fans included)
  • Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
  • Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
  • Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
  • Easy-to-clean high airflow nylon filters on the front top and base with full PSU coverage and convenient front access
  • Integrated cable guides with Velcro straps further simplify cable management behind the board





Compact yet spacious

The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.





Remarkably quiet

  • Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation
  • Brushed aluminum front and top-latching side panels offer a clean sophisticated look
  • Top panel effortlessly swaps from solid steel to filtered ventilation





Substantial cooling

  • Install up to 7x 120 mm or 4x 140 mm fans and radiators up to 360 mm
  • 1x 120 mm and 1x 140 mm Dynamic X2 fans included
  • Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support





  • Form Factor: ATX
  • Small Form Factor: No
  • Power Supply Wattage: No PSU
  • Motherboard Support: "ATX Micro ATX Mini ITX"
  • Window(s): Yes (Window)
  • Connectors / Controls: 1 x USB 3.1 Gen 2 Type-C
    2 x USB 3.0
    2 x USB 2.0
    Audio I/O
    Power button
    Reset button
  • Drive Bays: "2 x 3.5""/2.5"" drive mounts
    Dedicated 2.5"" drive mounts: 2 trays 4 positions total"
  • Expansion Slots: 7 Expansion slots
  • Cooling System: Included
    Front: 1 x Dynamic X2 GP-14 140mm fan
    Rear: 1 x Dynamic X2 GP-12 120mm fan

    Fan Mounts
    Front: 3 x 120 / 2 x 140 mm
    Top: 2 x 120 / 2 x 140 mm
    Rear: 1 x 120 mm
    Bottom: 1 x 120 mm (requires removal of HDD cage)
  • Colour: Black
  • Material: Left side panel: Tempered Glass
    Right side panel: Industrial sound-damped steel
  • Compatability: GFX Card:
    341 mm (360 mm without front fan)

    Max CPU Cooler:
    169 mm

    PSU:
    200 mm total (165 mm w/ HDD cage and front fan)
  • Weight/Dimensions: 8.76 kg
    (LxWxH) 427 x 210 x 474 mm
    w/o feet/protrusions/screws: 415 x 210 x 451 mm
  • Additional Features: See Overview
  • Accessories: Accessory box
    User manual
    Ventilated top panel
  • Package Weight: 12.5000 kg
  • Warranty: 2 Years
FD-C-DEF7C-02
