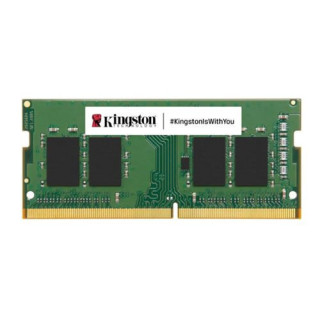

Kingston 32GB, DDR4, 3200MHz (PC4-25600), CL22, SODIMM Memory
£75.52
VAT included
Description
Specification
- Series: Kingston ValueRAM
- DDR Type: DDR4 SODIMM
- Size: 1 x 32GB
- #Hide#Individual Module Size: 32GB
- Speed: 3200 MHz
- Compliance: PC4-25600
- Pins: 260-pin
- CAS Latency: CL22
- Data Integrity Check: Non-ECC
- Voltage: 1.2V Typical
- Additional Information: See Overview
- Package Type: Retail
- Package Weight: 0.0225 kg
- Warranty: Lifetime
32GB 2Rx8 4G x 64-Bit PC4-3200 CL22 260-Pin SODIMM
ValueRAM's KVR32S22D8/32 is a 4G x 64-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, non-ECC, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers.
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Dual-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.18” (30.00mm)
- RoHS Compliant and Halogen-Free
KVR32S22D8/32
