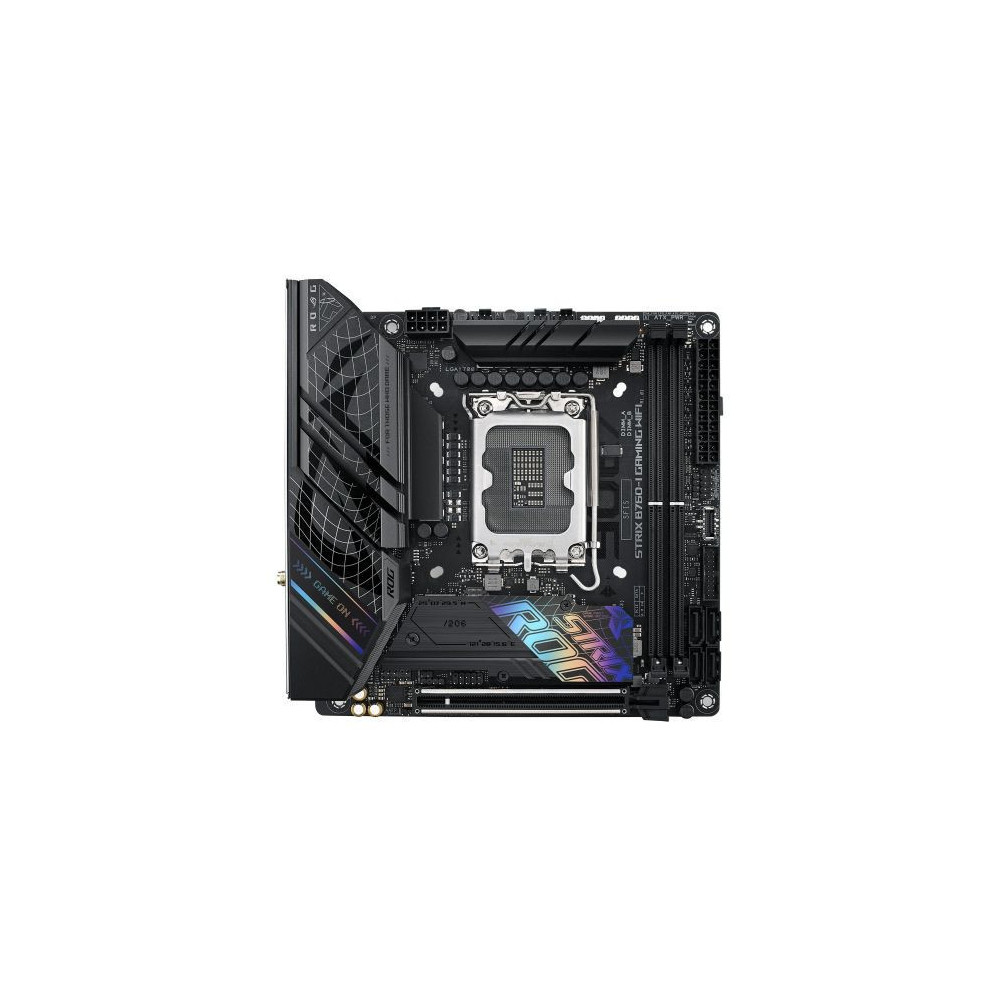

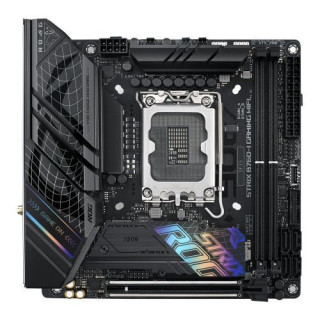

Asus ROG STRIX B760-I GAMING WIFI, Intel B760, 1700, Mini ITX, 2 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 2x M.2

Let your rig run wild with the ROG Strix B760-I, a feisty foundation for your next SFF build. Boasting hyperfast DDR5 memory, low-latency WiFi 6E networking, and a future-ready PCIe 5.0 slot, it sets you up for savage speeds, all while giving you incredible 13th Gen support thanks to its powerful VRM and thermal solution.



• x1 PCIe 5.0 x16 slot
• USB 3.2 Gen 2x2 Type-C rear I/O port
• 8 + 1 Power Stages
• DDR5 Memory 7600+ MT/s, AEMP II, XMP
• WiFi 6E
• DIY-Friendly Design

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Mini ITX
• Socket: Intel 1700
• Chipset: Intel B760
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 7600(OC)
• Maximum Memory: 64GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 5.0 x16
• Storage: 4 x SATA III
  1 x M.2 (2260/2280) - PCIe
  1 x M.2 (2242/2260/2280) - PCIe
• RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
• Wireless: Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5/6GHz frequency band
  Bluetooth v5.3
• LAN: 2.5GB LAN
• Audio: ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
• USB Ports Supported: "1 x USB 3.2 Gen2x2 Type-C (at back)
  1 x USB 3.2 Gen1 Type-C (at back)
  3 x USB 3.2 Gen1 Type-A (at back)
  2 x USB 3.2 Gen1 (at mid-board)
  5 x USB 2.0 (3 at back, 2 at mid-board)
  1 x Front Panel Type-C USB 3.2 Gen2 Header"
• Back Panel I/O Ports: "1 x USB 3.2 Gen2x2 Type-C
  4 x USB 3.2 Gen1 (3 Type-A, 1 Type-C)
  3 x USB 2.0
  1 x HDMI
  1 x DisplayPort
  1 x Wi-Fi Module
  1 x Intel 2.5Gb Ethernet
  5 x Audio jacks"
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin Chasis Fan
  1 x 4-pin AIO Pump
  1 x 24-pin Main
  1 x 8-pin +12V
  2 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen2 Type-C
  1 x USB 3.2 Gen1
  1 x USB 2.0
  1 x Addressable Gen2
  1 x Aura RGB
• .: 1 x Clear CMOS
  1 x Front Panel Audio
  1 x S/PDIF Out
  1 x Speaker
  1 x 10-1 pin System Panel
  1 x Thermal Sensor
• Accessories: 2 x SATA 6Gb/s cables
  1 x ROG USB2.0 splitter cable
  1 x Panel cable
  1 x Thermal pad for M.2
  1 x ASUS Wi-Fi moving antennas
  1 x Cable ties package
  1 x M.2 Rubber Package
  2 x Screw packages for M.2 SSD
  1 x M.2 bracket
  1 x ROG key chain
• .: 1 x ROG STRIX stickers
  1 x ROG STRIX thank you card
  1 x User manual
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.4000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
• #Hide#RGB Lighting: Out of the box RGB lighting
